Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC
SPC-21WR2
Series: SPC

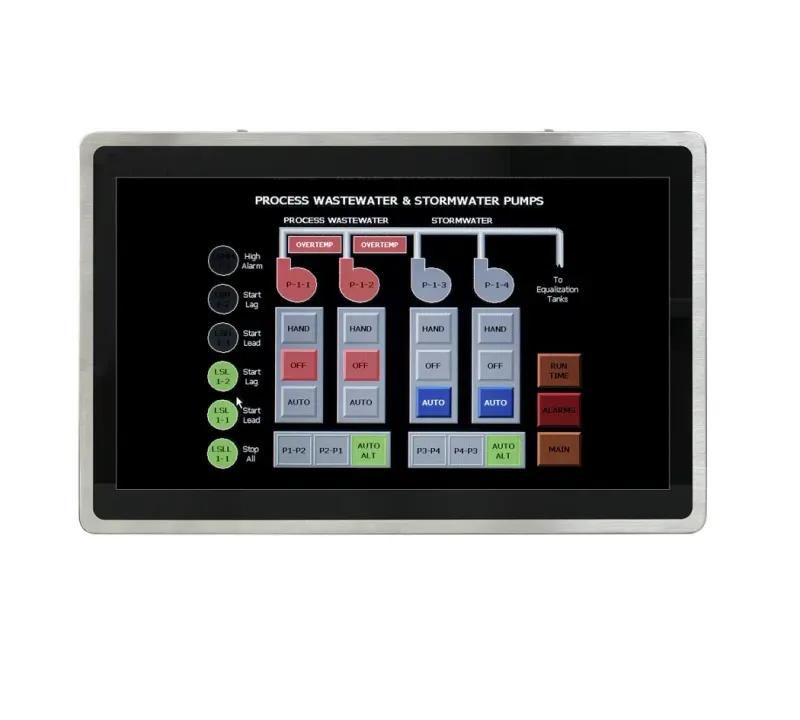

The Avalue SPC-21WR2 is a 21.5" Full HD stainless-steel fanless ARM panel PC built for hygienic and washdown environments, powered by the Rockchip RK3568 quad-core Cortex-A55 processor. With a fully stainless-steel front and rear construction and a default 5-side IP65 rating (optional whole-system IP66/69K), it is purpose-built for food, pharmaceutical, and wet industrial applications. The 1920x1080 panel offers 250 cd/m² brightness, a high 3000:1 contrast, and 10-point projected-capacitive touch. It runs Android 11 or Debian 11 on 2GB DDR4 and 32GB eMMC, with USB 3.0, HDMI 1.4 out, Gigabit Ethernet, optional waterproof Wi-Fi/Bluetooth, and an optional M12-connector variant for sealed cabling. Validated vibration/shock/drop testing, VESA/wall/stand mounting, and a wide +12~24V input make the SPC-21WR2 a durable hygienic HMI for harsh, washdown-prone environments.
Key Features
- 21.5" Full HD (1920x1080) 3000:1-contrast PCAP 10-point multi-touch
- Stainless-steel front & rear; default 5-side IP65 (opt. IP66/69K)
- Rockchip RK3568 quad-core Cortex-A55 (up to 2.0GHz), fanless
- 2GB DDR4 onboard + 32GB eMMC onboard
- Android 11 / Debian 11
- USB 3.0, HDMI 1.4 out, Gigabit Ethernet
- Optional waterproof Wi-Fi + Bluetooth 5.0
- Optional M12-connector variant for sealed I/O
- VESA 75 / wall / stand mount; wide +12~24V input
Technical Specifications
System Information
| Processor | Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz |
|---|---|
| System Memory | 2GB DDR4 on board |
| CPU Cooler (Type) | Fanless |
Storage
| Storage | 32GB eMMC on board |
|---|
Power Requirement
| DC Input | Default+12V~24V DC in, (+19V~24V for M12 model by option) |
|---|
Software Support
| OS | Android 11 / Debian 11 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Panel
| LCD Size | 21.5" |
|---|---|
| Display Type | FHD |
| Resolution | 1920x1080 |
| Pixel pitch | 0.24795 (H) x 0.24795 (V) mm |
| Luminance | 250 cd/m2 |
| Contrast ratio | 3000 |
| Viewing angle | 89 (U), 89 (D), 89 (L), 89 (R) |
| Response time | 10 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | 85% |
| Touch Controller | EETI |
External I/O
| USB Port | 2 x USB 3.0 Type A |
|---|---|
| Video Port | 1 x HDMI 1.4 Out |
| Audio Port | 1 x Headphone Jack for Line Out |
| LAN Port | 1 x RJ45 10/100/1000 Lan port |
| Switch | 1 x Power button (on side) |
| DC input | 1 x DC Jack, 1 x Reset |
| Other | Option for M12 connector:, 1 x RJ45, 1 x DC Jack, 1 x USB, 1 x COM, 1 x Vent Vale |
Wireless Communication
| WLAN | Optional Wi-Fi with waterproof antenna |
|---|---|
| Bluetooth | Optional BT 5.0 |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative humidity, non-condensing |
| Dimension (W x L x H) | 541.6 x 348.6 x 47mm |
| Weight | 8.2 kg |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test:Ed |
| IP Rating | Default 5-Sides IP65, Option for whole system IP66/69K |
| Mounting Kit | Wall / Stand / VESA 75 x 75mm |
| Power Mode | AT/ATX (ATX is default) |
| System Fan | Fanless |
| Construction - Front | Stainless steel |
| Construction - Rear | Stainless steel |
Component
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W adapter (12V @ 5A adapter) AC-DC adapter screw type, For optional M12 model: 60W adapter (24V @ 2.5A adapter) AC-DC adapter plug type, (need waterproof M12/4pin-D2.5 DC Jack-plug 200cm cable for M12 DC in connector --> E170W060030R) |
|---|
Ordering Information
| Ordering Information | SPC-21WR2-6803-A1R | 21.5" 1920 x 1080 IP-65 Stainless Steel panel PC/PCap/RK3568/2GR/32G eMMC/Android 11/LAN/2x2USB/HDMI/Line Out/Reset/DCin/Power Button/without Adapter/without M12, ACC-ARM-D1R | VESA STAND, 75mm & 100 mm, ACC-ARM-D23R | VESA STAND, 75mm & 100 mm, ACC-ADP-060N-08R | AC/DC adapter 12V/5A Screw Type, E1702031833R | USA Power Cord, E1702031000R | EU Power Cord, E1702031834R | Japan Power Cord, E1702031830R | UK Power Cord, E1702031831R | Australia Power Cord, ******************************************************************************************, For M12 model:, ACC-ADP-060N-09R | AC/DC adapter 24V/2.5A Plug Type, *(Suggest DC Jack to M12 cable E170W060030R (Waterproof M12 DC Cable) when adapter needed), * Same power cord option as ACC-ADP-060N-08R, E170W060030R | Waterproof M12 DC Cable, E170W160030R | Waterproof M12 USB Cable, E170W160040R | Waterproof M12 Lan Cable, E170W170010R | Waterproof M12 COM Cable |
|---|
