VNS-10WR2

Series: VNS

Manufactured byAvalue

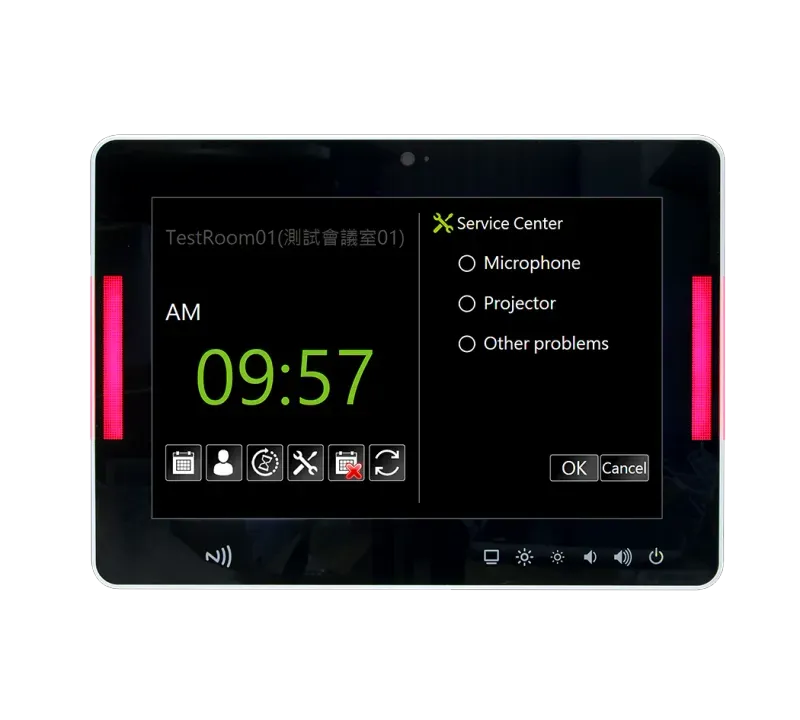

The Avalue VNS-10WR2 is a 10.1" WXGA ultra-slim industrial touch panel PC powered by the Rockchip RK3568 (quad-core Arm Cortex-A55 up to 2.0GHz) processor, designed as a sleek, fanless front-end for digital signage and public information displays. With 4GB LPDDR4, 64GB eMMC, a Micro-SD slot, and Android 11 or Debian 11 support, it delivers a responsive app experience with a distinctive true-color LED indicator light bar. The 1280x800 PCAP 10-point multi-touch panel offers a bright 350 cd/m² display with an IP65 front and an antibacterial PC+ABS housing. Connectivity includes Realtek Gigabit LAN with Powered-LAN (802.3at), 2x USB 3.0, an RJ45-type RS-232/485 COM port, NFC, a 2.0MP camera, and an M.2 Key-B (3042) slot with Micro-SIM for an SSD or LTE module. A wide +12~24V lockable DC input and fanless operation make the VNS-10WR2 a hygienic, low-maintenance interactive display.

Key Features

10.1" WXGA (1280x800) TFT PCAP 10-point multi-touch ultra-slim panel PC, fanless
Rockchip RK3568 Arm quad-core Cortex-A55, up to 2.0GHz
4GB LPDDR4, 64GB eMMC, 1x Micro-SD
True-color LED indicating light bar (2x)
Android 11 / Debian 11
Realtek Gigabit LAN with Powered-LAN (802.3at)
2x USB 3.0, RJ45-type RS-232/485, NFC, 2.0MP camera
M.2 Key-B (3042, SATA3/USB2.0) + Micro-SIM for SSD/LTE
Front panel IP65, antibacterial PC+ABS, wide +12~24V; CE / FCC Class B

Technical Specifications

System Information

Processor	Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
System Memory	4GB LPDDR4

Storage

Storage	64GB eMMC
Other Storage Device	1 x Micro SD

Display

Graphic Chipset	Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0

Audio

Speaker Output	2 x 4Ω 2.0W/2.2W(MAX)

Ethernet

LAN Chipset	Realtek RTL8211F-CG
Ethernet Interface	10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input	+12V ~ +24V
DC Input Connector	Lockable DC Jack

Software Support

OS	Android 11 / Debian 11

Certification

Certification Information	CE/FCC Class B

Panel

LCD Size	10.1"
LCD Panel	TFT
Resolution	1280 x 800
Pixel pitch	0.1695 (H) x 0.1695 (V) mm
Luminance	350 cd/m²
Contrast ratio	800
Viewing angle	85 (U), 85 (D), 85 (L), 85 (R)
Response time	30 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	86%

External I/O

USB Port	2 x USB 3.0
LAN Port	1 x RJ45
COM Port	1 x RS-232/485 (RJ45)
DC input	1 x DC Jack
Other	1 x Touch key (Brightness/Volume/Power)

Internal I/O

Expansion	1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module)
SIM Slot	1 x Micro SIM Slot

System Control

LED Indicator	2 x Full color light bar

Data Collection

NFC	Support NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE and FeliCa
Camera	1 x 2.0MP Camera

Wireless Communication

WLAN	Optional Wi-Fi 802.11ac/a/b/g/n
Bluetooth	Optional BT 5.0

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-10°C ~ 60°C(-14°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, non-condensing
Dimension (W x L x H)	270 x 193 x 28 mm
Weight	1.1 kg
IP Rating	Front panel IP65
VESA	75 x 75
Power Requirement	DC 12~24V/Powered LAN (802.3at)
Power Mode	AT
System Fan	Fanless
Color	White
Construction	Plastic PC+ABS w/ Antibacterial

Component

Adapter	Optional, Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W adapter (12V @ 5A adapter) AC-DC adapter

Ordering Information

Ordering Information	VNS-10WR2-CW49-1R:VNS-10WR2-4G/64G-Andriod 11
