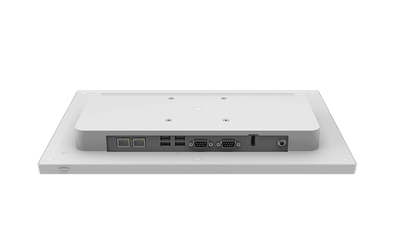

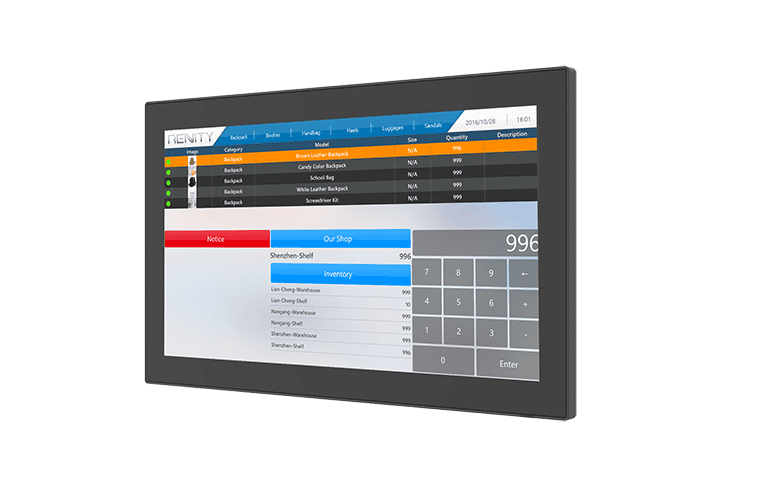

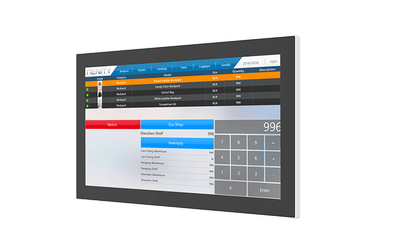

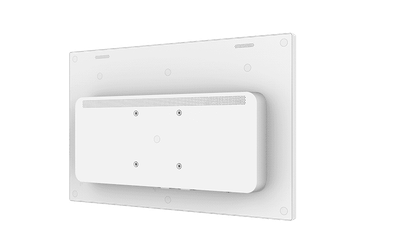

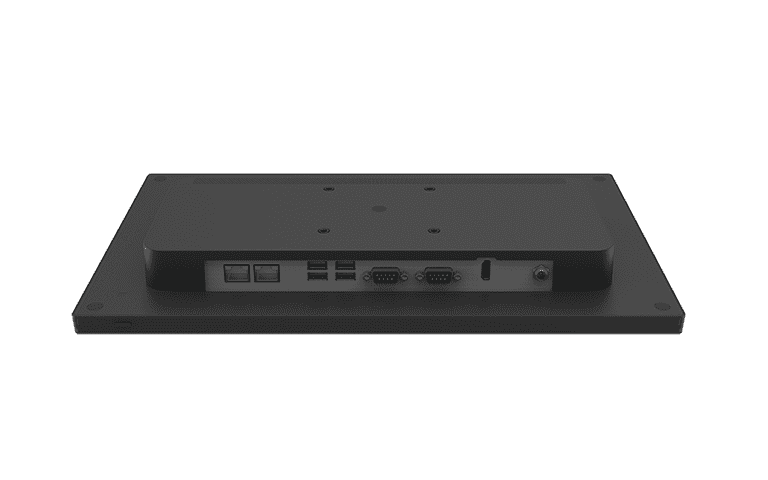

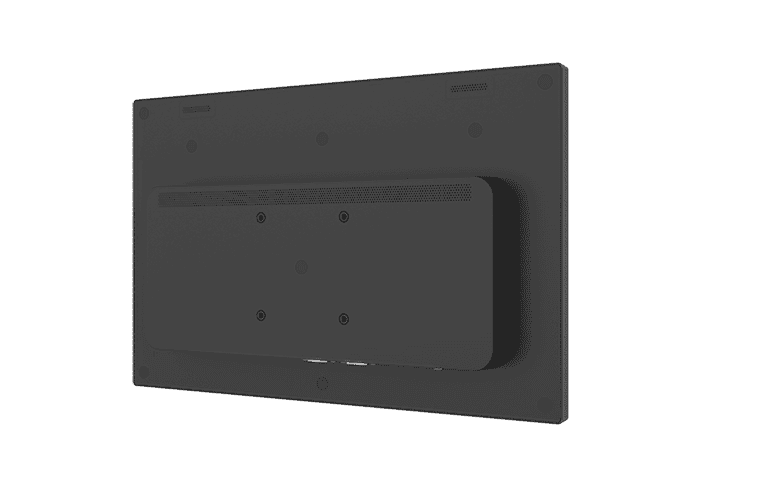

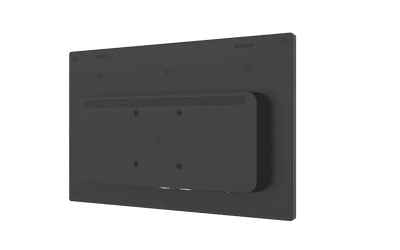

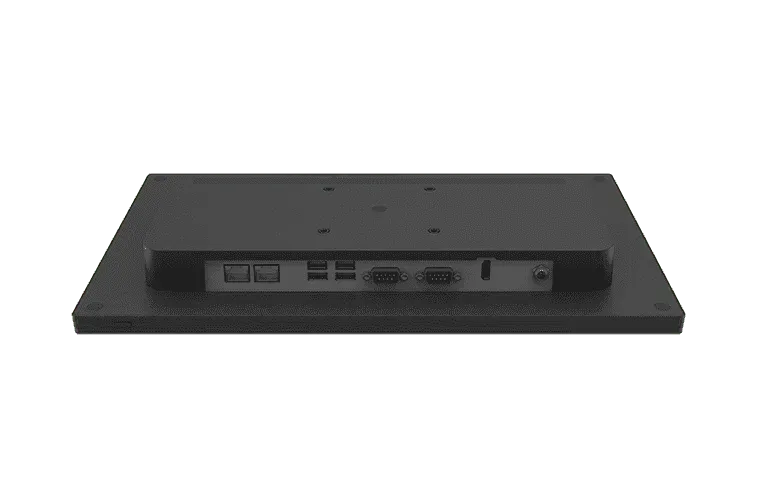

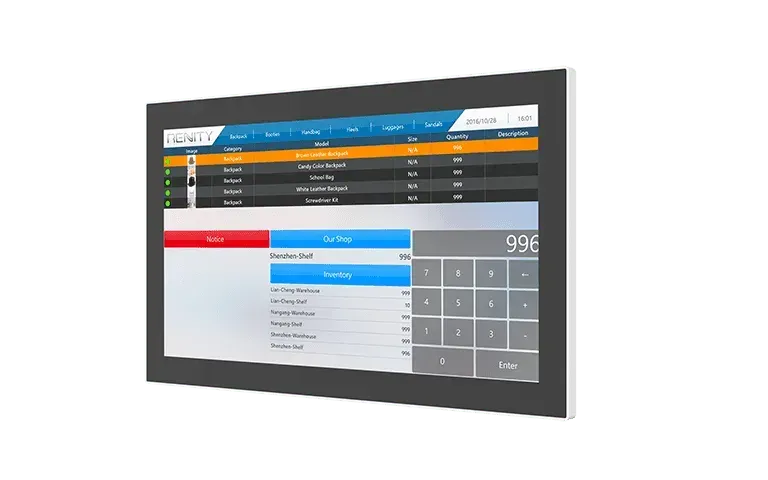

RiVar-1502

RiVar-1502 FrontRiVar-1502 FrontRiVar-1502 FrontRiVar-1502 FrontRiVar-1502 FrontRiVar-1502 Front
RiVar-1502 FrontRiVar-1502 FrontRiVar-1502 FrontRiVar-1502 FrontRiVar-1502 FrontRiVar-1502 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Intel® Celeron® Processor J3455
  • IP65 for panel, IP41 for back
  • 2 x Gigabit Ethernet
  • 1 x M.2 slot for WiFi/BT
  • 4 x USB 3.0, 2 x RS-232

Product Description

The Avalue RiVar-1502 is a robust 15.6-inch all-in-one POS terminal designed for demanding retail and hospitality applications. Powered by the Intel® Celeron® J3455 processor, it delivers reliable performance for various point-of-sale operations.

The system features a Full HD (1920x1080) projected capacitive touchscreen, housed in a fanless design with an IP65-rated front panel for durability and hygiene.

It offers extensive connectivity options, including 4 x USB 3.0 ports, 2 x COM ports, 2 x Gigabit Ethernet ports, and built-in Wi-Fi and Bluetooth. The RiVar-1502 supports Windows 10 and Android 8.1, making it a versatile solution for modern POS systems.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J3455

System Memory

Onboard LPDDR4 4GB

I/O Chipset

EC ITE8987E

TPM

TPM 2.0

SBC

Intel® Celeron® Apollo Lake Platform

Expansion

Expansion

1 x M.2 E Key slot for .2.4/5G WiFi module

Storage

Storage

Onboard 128GB eMMC 1 x 2.5 storage (option)

Display

Graphic Chipset

Intel® HD Graphics 500

Audio

Audio Codec

ES8336

Audio Interface

2 x 2W

Ethernet

LAN Chipset

2 x RJ45 with realtek RTL8111H

Power Requirement

DC Input

+24V

DC Input Connector

DC Jack

Software Support

OS

Win 10 / Android 8.1

Certification

Certification Information

CE/FCC/UKCA/VCCI : Class A

External I/O

USB Port

4 x USB 3.0

Panel

LCD Size

15.6\"

LCD Panel

Main LCD panel: 15.6 1920 x 1080 full HD

2nd LCD panel: 15.6 1920 x 1080 full HD (option)

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.179 x 0.179

Luminance

300 cd/m2

Contrast ratio

700

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

14ms

Backlight

LED

Touch Type

Projective capacitive

Touch Light Transmission

85%

Touch Controller

USB interface, EETI

I/O

COM Port

2 x COM ports supported all pin 9 supported 5V/12V 1A max output

Thermal Printer

Printing Method

SEIKO thermal printer CAPD347D-E

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Dimension (W x L x H)

253 x 390 x 431mm

Weight

10 kg (dual display mode)

IP Rating

IP65 for front panel, IP41 for rear

Power Mode

ATX

System Fan

Fanless

Construction - Front

Black/white

Construction - Rear

Black/white

Construction - Front

Black/white

Construction

Black/white

Component

Adapter

24V DC in 60W or 120W (printer SKU)

Ordering Information

Ordering Information

RIVAR-1501-A1400R

15.6\"/1920x1080/PCT/4G RAM/130W Adapter/5 USB/1 RJ45/1 SD Slot/Stand/2 Powered COM/1 RJ11 for Cash Drawer/Thermal Printer


RIVAR-1501-A1800R

15.6\"/1920x1080/PCT/4G RAM/130W Adapter/5 USB/1 RJ45/1 SD Slot/Stand/2 Powered COM/1 RJ11 for Cash Drawer/Thermal Printer/15.6\" PCT 2nd display


ACC-RIVAR-MSR-01R

Magstripe Card Reader for RIVAR-1501


EU Power Cord E1702031000R

US Power Cord E1702031833R

JP Power Cord E1702031834R

UK Power Cord E170P060380R

What is RiVar-1502?

The RiVar-1502 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. The Avalue RiVar-1502 is a robust 15.6-inch all-in-one POS terminal designed for demanding retail and hospitality applications. Powered by the Intel® Celeron® J3455 processor, it delivers reliable performance for various point-of-sale operations. The system features a Full HD (1920x1080) projected capacitive touchscreen, housed in a fanless design with an IP65-rated front panel for durability and hygiene. It offers extensive connectivity options, including 4 x USB 3.0 ports, 2 x COM ports, 2 x Gigabit Ethernet ports, and built-in Wi-Fi and Bluetooth. The RiVar-1502 supports Windows 10 and Android 8.1, making it a versatile solution for modern POS systems.

Key Features & Benefits

  • Intel® Celeron® Processor J3455
  • IP65 for panel, IP41 for back
  • 2 x Gigabit Ethernet
  • 1 x M.2 slot for WiFi/BT
  • 4 x USB 3.0, 2 x RS-232

Applications & Use Cases

The RiVar-1502 is ideal for various industrial automation applications:

  • Applications in A fanless design with an ip65-rated front panel for durability and hygiene
  • Harsh industrial environments requiring dust and water protection
  • Wireless connectivity and remote monitoring applications
  • Legacy equipment integration and serial communication
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Demanding retail and hospitality applications
