What is the PCC-ARC-AB10-C panel kit used for?

The PCC-ARC-AB10-C is a panel kit designed for integrating panel PCs or industrial displays into machines, control panels, or embedded systems.

Is the PCC-ARC-AB10-C suitable for industrial environments?

Yes, it is designed for industrial environments where secure and reliable panel PC or display integration is required.

What types of systems can be integrated using this panel kit?

This panel kit can be used to integrate panel PCs, industrial displays, and HMI systems used in automation and industrial control.

Does the PCC-ARC-AB10-C support open frame installation?

Yes, it supports open frame installation, allowing flexible mounting into custom enclosures or machinery panels.

Is this panel kit suitable for OEM and system integrator projects?

Yes, it is suitable for OEMs and system integrators requiring customized panel PC or display integration solutions.

Is the PCC-ARC-AB10-C easy to install?

The kit is designed to simplify installation and reduce assembly time during system integration.

What are the benefits of using a panel PC kit in industrial applications?

Panel PC kits provide secure mounting, flexible integration, space efficiency, and improved reliability in industrial systems.

Can this panel kit be used for HMI applications?

Yes, it is suitable for HMI applications where panel PCs or displays are embedded into control panels.

Is the PCC-ARC-AB10-C suitable for automation and manufacturing systems?

Yes, it is suitable for automation, manufacturing, and industrial control systems requiring durable panel integration solutions.

Why are panel kits important for industrial panel PC solutions?

Panel kits ensure secure installation, proper alignment, and long-term reliability of panel PCs or displays in industrial environments.

PCC-ARC-AB10-C

*Price on request. Contact us for a quote.

Manufacturer: Avalue

10.1\" LCD with PCAP Multi-Touch","Wide Operating Temperature Support
Up to 350 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 800:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Product Description

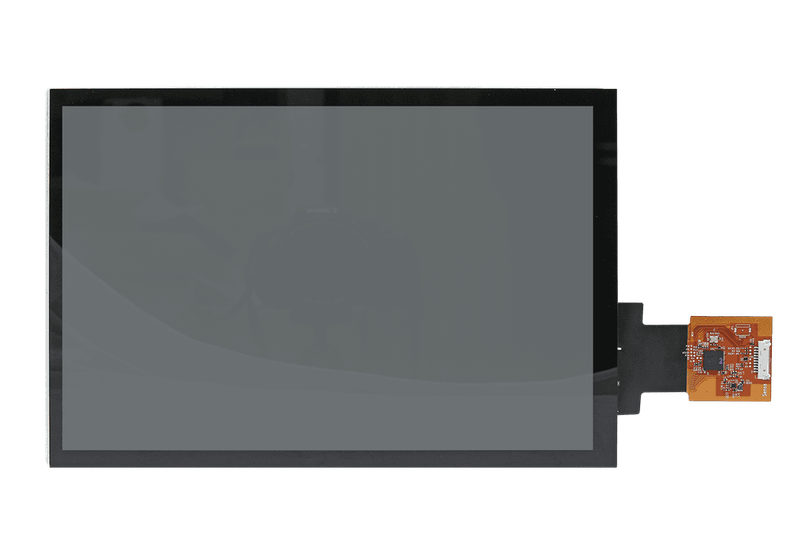

The Avalue PCC‑ARC‑AB10‑C is a high‑quality 10.1″ panel kit featuring a WXGA (1280×800) LVDS LCD and PCAP multi‑touch interface.

With up to 350 nits brightness (LED backlight), 800:1 contrast ratio, wide viewing angles, and a built‑in backlight inverter, it’s designed for robust performance in industrial or embedded environments.

The kit supports wide operating temperature ranges (‑10 °C to 50 °C for the panel, and ‑20 °C to 60 °C for the touch module), and offers optional upgrades — such as optical bonding, anti‑glare / anti‑fingerprint coatings, anti‑UV treatment, and custom logo printing — making it a flexible solution for HMI displays, kiosks, or embedded projects.

Technical Specifications

Panel

LCD Size

10.1\", 16:10

LCD Panel

LVDS

Display Type

WXGA

B/L Inverter/Converter

Built-in

Resolution

1280 x 800

Pixel pitch

0.1695mm(H) x 0.1695mm(V)

Luminance

350 nits

Contrast ratio

800

Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)

Response time

25ms

Touch Type

PCAP

Touch Light Transmission

88%

Touch Controller

EETI

Mechanical & Environmental

Operating Temp.

-10 to 50℃ (panel)

-20 to 60℃ (touch)

What is PCC-ARC-AB10-C?

The PCC-ARC-AB10-C is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for panel-kits applications. The Avalue PCC‑ARC‑AB10‑C is a high‑quality 10.1″ panel kit featuring a WXGA (1280×800) LVDS LCD and PCAP multi‑touch interface. With up to 350 nits brightness (LED backlight), 800:1 contrast ratio, wide viewing angles, and a built‑in backlight inverter, it’s designed for robust performance in industrial or embedded environments. The kit supports wide operating temperature ranges (‑10 °C to 50 °C for the panel, and ‑20 °C to 60 °C for the touch module), and offers optional upgrades — such as optical bonding, anti‑glare / anti‑fingerprint coatings, anti‑UV treatment, and custom logo printing — making it a flexible solution for HMI displays, kiosks, or embedded projects.

Key Features & Benefits

10.1\" LCD with PCAP Multi-Touch","Wide Operating Temperature Support
Up to 350 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 800:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Applications & Use Cases

The PCC-ARC-AB10-C is ideal for various industrial automation applications:

Extreme temperature environments and outdoor installations
Robust performance in industrial or embedded environments
Interactive control interfaces and operator panels
Interactive kiosk and self-service terminals
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
Industrial control and monitoring systems
Factory automation and process control
