What is the PCC-ARC-AB12-C panel kit used for?

The PCC-ARC-AB12-C is a panel kit designed for integrating panel PCs or industrial displays into control panels, machines, and embedded industrial systems.

Is the PCC-ARC-AB12-C suitable for industrial environments?

Yes, it is designed for industrial environments requiring secure, stable, and long-term panel PC or display integration.

What systems can be integrated using the PCC-ARC-AB12-C?

It can be used to integrate panel PCs, industrial monitors, and HMI systems commonly used in automation and industrial control applications.

Does the PCC-ARC-AB12-C support open frame installation?

Yes, it supports open frame installation, allowing flexible mounting into custom enclosures or equipment panels.

Is this panel kit suitable for OEM and system integrator projects?

Yes, it is suitable for OEMs and system integrators who require customized panel PC or display integration solutions.

Is the PCC-ARC-AB12-C easy to install?

The kit is designed to simplify installation and reduce integration time during system assembly.

What are the advantages of using a panel PC kit in industrial applications?

Panel PC kits provide secure mounting, flexible integration, space efficiency, and improved system reliability in industrial environments.

Can this panel kit be used for HMI applications?

Yes, it is suitable for HMI applications where panel PCs or displays are embedded into machine or control panel interfaces.

Is the PCC-ARC-AB12-C suitable for automation and manufacturing systems?

Yes, it is suitable for automation, manufacturing, and industrial control systems requiring durable panel integration solutions.

Why are panel kits important for industrial panel PC solutions?

Panel kits ensure proper mounting, alignment, and long-term reliability of panel PCs or displays in demanding industrial environments.

PCC-ARC-AB12-C

*Price on request. Contact us for a quote.

Manufacturer: Avalue

12.1\" LCD with PCAP Multi-Touch
Wide Operating Temperature Support
Up to 600 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 1000:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Product Description

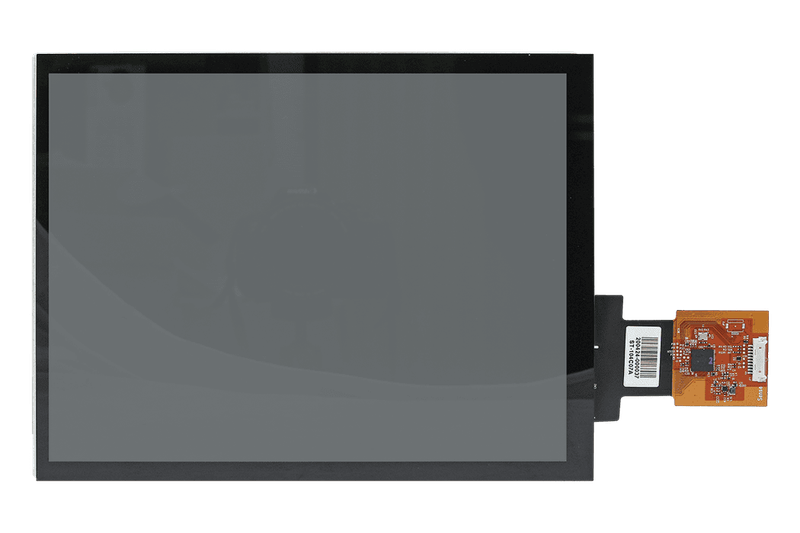

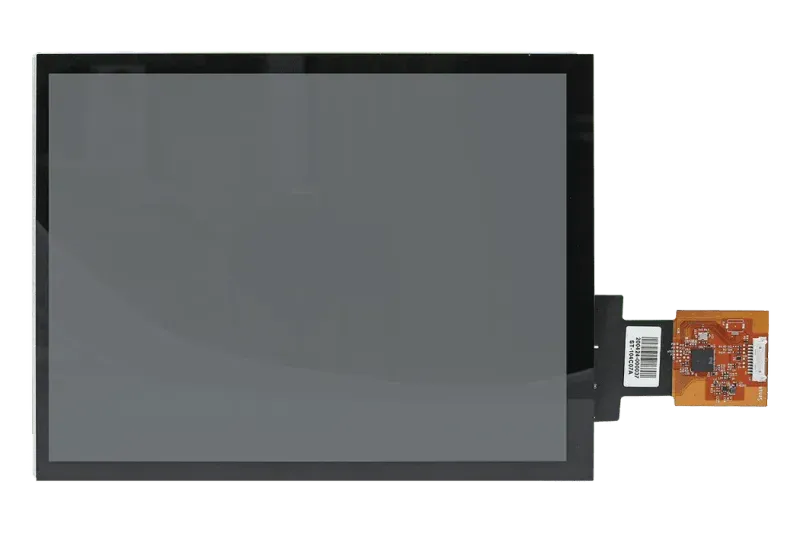

The Avalue PCC‑ARC‑AB12‑C is a 12.1‑inch LCD panel kit featuring XGA resolution (1024×768), LVDS interface, and PCAP multi‑touch support via EETI controller. The panel offers high brightness up to 600 nits and a contrast ratio of 1000:1, ensuring clear visibility even under bright ambient light.

It supports a broad operating temperature range (‑30 °C to 85 °C for the panel; ‑20 °C to 70 °C for the touch module), making it suitable for rugged industrial environments.

The kit also allows customization — including optical bonding, anti‑glare/anti‑fingerprint/anti‑UV coatings, and custom logo branding — to tailor to specific embedded, automation or kiosk projects.

Technical Specifications

Panel

LCD Size

12.1\", 4:3

LCD Panel

LVDS

Display Type

XGA

B/L Inverter/Converter

Built-in

Resolution

1024x768

Pixel pitch

0.240mm(H) x 0.240mm(V)

Luminance

600 nits

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

11ms

Touch Type

PCAP

Touch Light Transmission

89%

Touch Controller

EETI

Mechanical & Environmental

Operating Temp.

-30 to 85℃ (panel)

-20 to 70℃ (touch)

What is PCC-ARC-AB12-C?

The PCC-ARC-AB12-C is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for panel-kits applications. The Avalue PCC‑ARC‑AB12‑C is a 12.1‑inch LCD panel kit featuring XGA resolution (1024×768), LVDS interface, and PCAP multi‑touch support via EETI controller. The panel offers high brightness up to 600 nits and a contrast ratio of 1000:1, ensuring clear visibility even under bright ambient light. It supports a broad operating temperature range (‑30 °C to 85 °C for the panel; ‑20 °C to 70 °C for the touch module), making it suitable for rugged industrial environments. The kit also allows customization — including optical bonding, anti‑glare/anti‑fingerprint/anti‑UV coatings, and custom logo branding — to tailor to specific embedded, automation or kiosk projects.

Key Features & Benefits

12.1\" LCD with PCAP Multi-Touch
Wide Operating Temperature Support
Up to 600 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 1000:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Applications & Use Cases

The PCC-ARC-AB12-C is ideal for various industrial automation applications:

Extreme temperature environments and outdoor installations
Interactive control interfaces and operator panels
Interactive kiosk and self-service terminals
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
Industrial control and monitoring systems
Factory automation and process control
Machine control and visualization
