What is the PCC-ARC-AB15-C-04R panel kit used for?

The PCC-ARC-AB15-C-04R is an open frame panel kit designed for integrating 15-inch panel PCs or industrial displays into machines, control panels, and embedded industrial systems.

Is the PCC-ARC-AB15-C-04R suitable for industrial environments?

Yes, it is designed for industrial environments that require secure, stable, and long-term integration of panel PCs or displays.

What types of systems can use this panel kit?

This panel kit is suitable for panel PCs, industrial monitors, and HMI systems used in automation, manufacturing, and industrial control applications.

Does the PCC-ARC-AB15-C-04R support open frame installation?

Yes, it supports open frame installation, allowing flexible mounting into custom enclosures, kiosks, or machinery panels.

Is this panel kit suitable for OEM and system integrator projects?

Yes, it is well suited for OEMs and system integrators requiring customized panel PC or display integration solutions.

Is the PCC-ARC-AB15-C-04R easy to install?

The kit is designed to simplify installation and reduce system integration time during assembly.

What are the benefits of using a panel PC open frame kit?

Open frame panel PC kits offer flexible integration, space efficiency, easier customization, and reliable mounting for industrial applications.

Can this panel kit be used for HMI applications?

Yes, it is suitable for HMI applications where panel PCs or displays are embedded into control panels or machine interfaces.

Is the PCC-ARC-AB15-C-04R suitable for automation and manufacturing systems?

Yes, it is suitable for automation, manufacturing, and industrial control systems that require durable panel integration solutions.

Why are panel kits important in industrial panel PC solutions?

Panel kits ensure secure mounting, proper alignment, and long-term reliability of panel PCs or displays in demanding industrial environments.

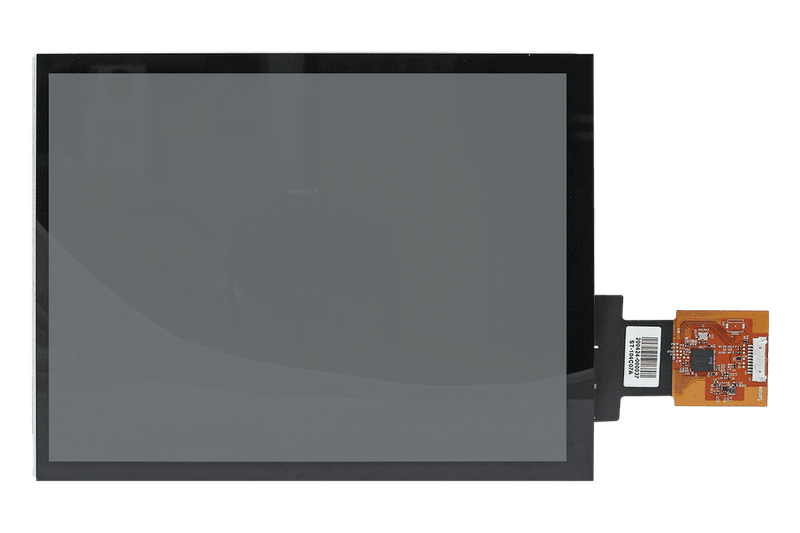

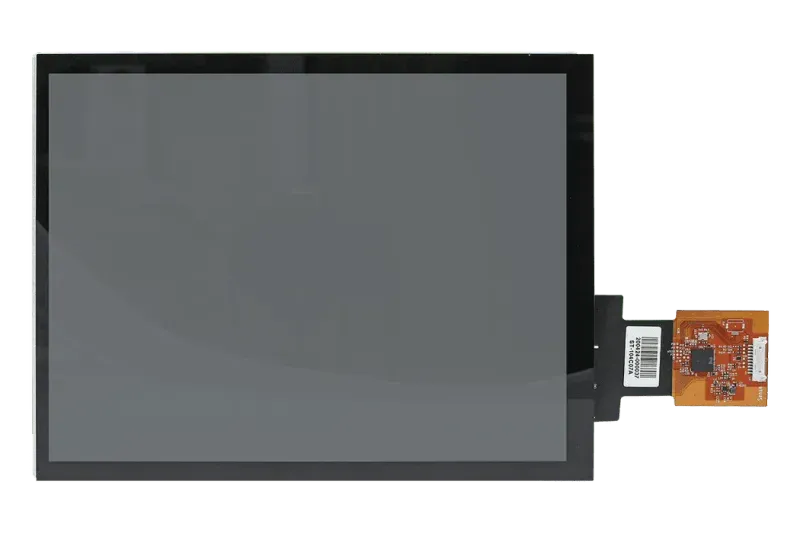

PCC-ARC-AB15-C-04R

*Price on request. Contact us for a quote.

Manufacturer: Avalue

15\" XGA LCD with PCAP Multi-Touch
Wide Operating Temperature Support
Up to 300 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 2000:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Product Description

The Avalue PCC‑ARC‑AB15‑C‑04R is a 15″ XGA LCD panel kit with PCAP multi‑touch, designed for use in HMI panels, kiosks, industrial controllers, and embedded systems.

It features a 1024×768 resolution, 300 nits LED backlight, up to 2000:1 contrast ratio, and a high‑transmission (≈ 89%) PCAP touchscreen. The panel supports LVDS interface and offers rugged operating temperature range from ‑20 °C to 70 °C (panel) and ‑10 °C to 70 °C (touch).

Optional customization includes optical bonding and anti‑glare/anti‑fingerprint/anti‑UV coatings. The kit is a flexible solution for OEM projects requiring reliable touch display modules.

Technical Specifications

Panel

LCD Size

15\", 4:3

LCD Panel

LVDS

Display Type

XGA

B/L Inverter/Converter

Built-in

Resolution

1024x768

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

300 nits

Contrast ratio

2000

Viewing angle

88 (U), 88 (D), 88 (L), 88 (R)

Response time

16ms

Touch Type

PCAP

Touch Light Transmission

89%

Touch Controller

ILITEK

Mechanical & Environmental

Operating Temp.

-20 to 70℃ (panel)

-10 to 70℃ (touch)

What is PCC-ARC-AB15-C-04R?

The PCC-ARC-AB15-C-04R is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for panel-kits applications. The Avalue PCC‑ARC‑AB15‑C‑04R is a 15″ XGA LCD panel kit with PCAP multi‑touch, designed for use in HMI panels, kiosks, industrial controllers, and embedded systems. It features a 1024×768 resolution, 300 nits LED backlight, up to 2000:1 contrast ratio, and a high‑transmission (≈ 89%) PCAP touchscreen. The panel supports LVDS interface and offers rugged operating temperature range from ‑20 °C to 70 °C (panel) and ‑10 °C to 70 °C (touch). Optional customization includes optical bonding and anti‑glare/anti‑fingerprint/anti‑UV coatings. The kit is a flexible solution for OEM projects requiring reliable touch display modules.

Key Features & Benefits

15\" XGA LCD with PCAP Multi-Touch
Wide Operating Temperature Support
Up to 300 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 2000:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Applications & Use Cases

The PCC-ARC-AB15-C-04R is ideal for various industrial automation applications:

Extreme temperature environments and outdoor installations
Interactive control interfaces and operator panels
Interactive kiosk and self-service terminals
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
Industrial control and monitoring systems
Factory automation and process control
Human-machine interface applications
