What is the PCC-LPC-AB08-R?

It is an 8" (4:3) SVGA (800x600) LCD panel kit with 5-wire resistive touch, an LVDS signal interface, and an LED driving board — supplied as an integration-ready display module for OEMs.

Is the PCC-LPC-AB08-R a complete monitor or a kit?

It is a panel kit (display + touch + driving board), not a finished monitor — it is intended to be integrated by the OEM into a kiosk, instrument, or HMI enclosure.

What is the resolution of the PCC-LPC-AB08-R?

800 x 600 (SVGA) on an 8" 4:3 panel.

What touch technology does the PCC-LPC-AB08-R use?

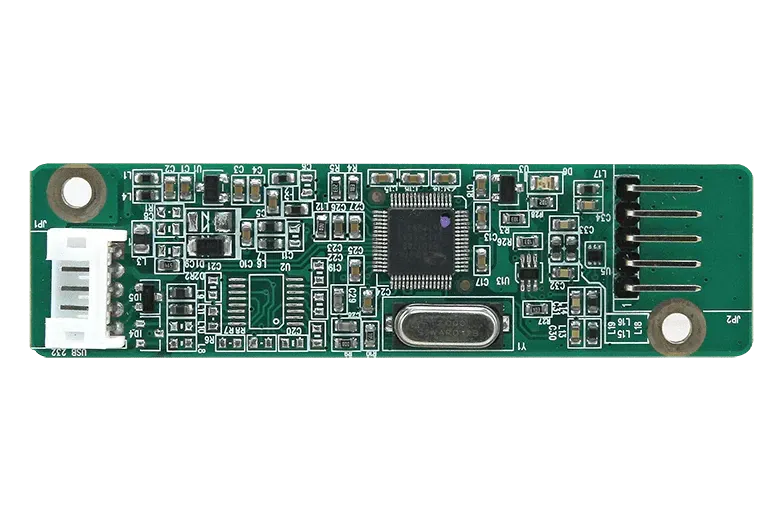

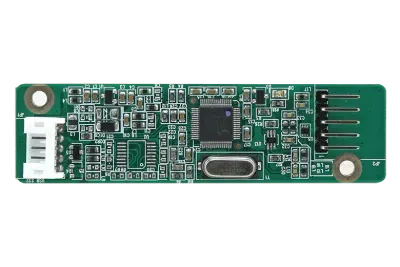

5-wire resistive touch with an EETI touch controller and 80% touch light transmission.

How bright is the PCC-LPC-AB08-R?

Up to 500 nits as standard, with customization available for higher brightness.

What signal interface does the PCC-LPC-AB08-R use?

An LVDS signal interface, with an included LED driving board (B/L inverter/converter).

What is the operating temperature range of the PCC-LPC-AB08-R?

-20 to 70°C for the panel and -10 to 70°C for the touch — a wide range suited to industrial use.

Can the PCC-LPC-AB08-R be optically bonded?

Yes, optical bonding is available as a customized solution to improve readability and durability.

What panel coatings are available for the PCC-LPC-AB08-R?

Anti-reflective, anti-fingerprint, anti-glare, and anti-UV coatings are available as customized solutions.

Does Avalue offer logo customization on the PCC-LPC-AB08-R?

Yes, a logo customization service is available.

Why choose resistive touch on the PCC-LPC-AB08-R?

5-wire resistive touch works with gloves and styluses and is robust in industrial settings where contaminants or PPE are common.

What is the viewing angle of the PCC-LPC-AB08-R?

50° up, 70° down, 70° left, 70° right.

What applications is the PCC-LPC-AB08-R best suited for?

OEM integration into compact kiosks, instruments, machine HMI, and embedded display front-ends needing a rugged 8" SVGA touch module.

What type of systems can use this panel kit?

The kit is suitable for panel PCs, industrial displays, HMI systems, and embedded control interfaces used in automation and machinery.

Can this panel kit be used for OEM projects?

Yes, it is well suited for OEM and system integrator projects requiring customized panel PC or display integration.

Is the panel kit easy to install and integrate?

The kit is designed to simplify installation and integration, reducing assembly time during system deployment.

What are the benefits of using a panel PC open frame kit?

Open frame panel kits offer flexibility, space efficiency, easier customization, and seamless integration into industrial equipment.

Can this kit be used in automation and manufacturing environments?

Yes, it is designed for automation, manufacturing, and industrial control environments requiring durable panel integration solutions.

Why are panel kits important in industrial panel PC solutions?

Panel kits enable secure mounting, proper alignment, and reliable integration of panel PCs or displays, ensuring long-term performance in industrial systems.

Avalue · Panel PC / Monitor / Mobile

PCC-LPC-AB08-R

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

8" (4:3) SVGA (800x600) LCD panel kit with 5-wire resistive touch
LVDS signal interface with LED driving board (B/L inverter/converter)
Up to 500-nit brightness (higher on request)
High contrast ratio up to 500:1
Wide operating temperature (-20~70°C panel)
EETI touch controller, 80% touch light transmission
Optical bonding (customized solution)
Anti-reflective / anti-fingerprint / anti-glare / anti-UV coatings (customized)
Logo customization service

Product Description

The Avalue PCC-LPC-AB08-R is an 8" (4:3) LCD panel kit with 5-wire resistive touch, supplied as an integration-ready display module with an LVDS signal interface and an LED driving board.

It is built for OEM integration into kiosks, instruments, and HMI enclosures.

The 800x600 SVGA panel supports up to 500-nit brightness with a 500:1 contrast ratio and a wide -20~70°C panel operating range.

Customized options include optical bonding, higher brightness, anti-reflective/anti-fingerprint/anti-glare/anti-UV panel coatings, and logo customization.

Technical Specifications

LCD Size

8", 4:3

LCD Panel

LVDS

Display Type

SVGA

B/L Inverter/Converter

with LED Driving Board

Resolution

800 x 600

Pixel pitch

0.0675mm(H) x 0.2025mm(V)

Luminance

500 nits

Contrast ratio

500

Viewing angle

50 (U), 70 (D), 70 (L), 70 (R)

Response time

25 ms

Touch Type

5-wire Resistive Touch

Touch Light Transmission

80%

Touch Controller

EETI

Operating Temp.

-20 to 70℃ (panel)

-10 to 70℃ (touch)

Customized Options

Optical Bonding

Higher brightness

Anti-reflective / Anti-fingerprint / Anti-glare / Anti-UV panel coating

Logo customized service

What is PCC-LPC-AB08-R?

The PCC-LPC-AB08-R is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for panel-kits applications. The Avalue PCC-LPC-AB08-R is an 8" (4:3) LCD panel kit with 5-wire resistive touch, supplied as an integration-ready display module with an LVDS signal interface and an LED driving board. It is built for OEM integration into kiosks, instruments, and HMI enclosures. The 800x600 SVGA panel supports up to 500-nit brightness with a 500:1 contrast ratio and a wide -20~70°C panel operating range. Customized options include optical bonding, higher brightness, anti-reflective/anti-fingerprint/anti-glare/anti-UV panel coatings, and logo customization.

Key Features & Benefits

8" (4:3) SVGA (800x600) LCD panel kit with 5-wire resistive touch
LVDS signal interface with LED driving board (B/L inverter/converter)
Up to 500-nit brightness (higher on request)
High contrast ratio up to 500:1
Wide operating temperature (-20~70°C panel)
EETI touch controller, 80% touch light transmission
Optical bonding (customized solution)
Anti-reflective / anti-fingerprint / anti-glare / anti-UV coatings (customized)
Logo customization service

Applications & Use Cases

The PCC-LPC-AB08-R is ideal for various industrial automation applications:

Extreme temperature environments and outdoor installations
Interactive control interfaces and operator panels
Interactive kiosk and self-service terminals
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
Industrial control and monitoring systems
Factory automation and process control
Human-machine interface applications
