What is the PCC-OFP-AB07-C-01R panel kit used for?

The PCC-OFP-AB07-C-01R is an open frame panel kit designed for integrating panel PCs or displays into industrial machines, kiosks, or HMI systems.

Is the PCC-OFP-AB07-C-01R suitable for industrial applications?

Yes, it is designed for industrial environments where reliable mounting and integration of panel PCs or displays are required.

What type of systems can use this panel kit?

The kit is suitable for panel PCs, industrial displays, HMI systems, and embedded control interfaces used in automation and machinery.

Does the PCC-OFP-AB07-C-01R support open frame installation?

Yes, it is specifically designed for open frame installation, allowing flexible integration into custom enclosures or equipment panels.

Can this panel kit be used for OEM projects?

Yes, it is well suited for OEM and system integrator projects requiring customized panel PC or display integration.

Is the panel kit easy to install and integrate?

The kit is designed to simplify installation and integration, reducing assembly time during system deployment.

What are the benefits of using a panel PC open frame kit?

Open frame panel kits offer flexibility, space efficiency, easier customization, and seamless integration into industrial equipment.

Is the PCC-OFP-AB07-C-01R suitable for HMI applications?

Yes, it is suitable for HMI applications where panel PCs or displays are embedded into control panels or machinery interfaces.

Can this kit be used in automation and manufacturing environments?

Yes, it is designed for automation, manufacturing, and industrial control environments requiring durable panel integration solutions.

Why are panel kits important in industrial panel PC solutions?

Panel kits enable secure mounting, proper alignment, and reliable integration of panel PCs or displays, ensuring long-term performance in industrial systems.

PCC-OFP-AB07-C-01R

*Price on request. Contact us for a quote.

Manufacturer: Avalue

7\" LCD with PCAP Multi-Touch
Wide Operating Temperature Support
Up to 300 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 900:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Product Description

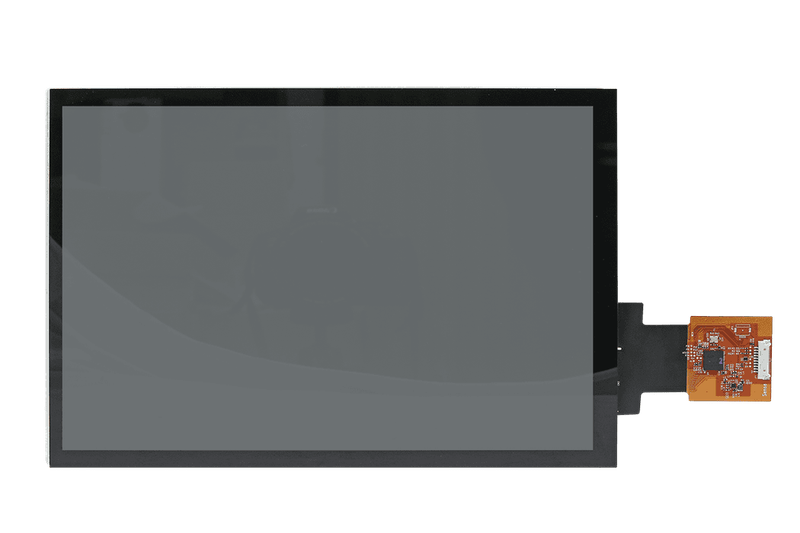

The Avalue PCC‑OFP‑AB07‑C‑01R is a 7″ open‑frame LCD panel kit featuring a WXGA (1280×800) display with PCAP multi‑touch capability. The kit supports a wide operating temperature range (‑20 °C to 70 °C) for both panel and touch module, making it suitable for rugged and industrial environments.

It offers up to 300 nits brightness with LED backlight and a 900:1 contrast ratio, with an LVDS signal interface.

The panel kit can be customized with optical bonding, anti‑glare / anti‑fingerprint / anti‑UV coating, and OEM logo printing — making it a flexible solution for HMI systems, industrial control panels, kiosks, automation control systems, and embedded display projects.

Technical Specifications

Panel

LCD Size

7\", 16:10

LCD Panel

LVDS

Display Type

WXGA

B/L Inverter/Converter

Built-in

Resolution

1280 x 800

Pixel pitch

0.03925(H) x 0.11775(V)

Luminance

300 nits

Contrast ratio

900

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

30ms

Touch Type

PCAP

Touch Light Transmission

89%

Touch Controller

EETI

Mechanical & Environmental

Operating Temp.

-20 to 70℃ (panel)

-20 to 70℃ (touch)

What is PCC-OFP-AB07-C-01R?

The PCC-OFP-AB07-C-01R is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for panel-kits applications. The Avalue PCC‑OFP‑AB07‑C‑01R is a 7″ open‑frame LCD panel kit featuring a WXGA (1280×800) display with PCAP multi‑touch capability. The kit supports a wide operating temperature range (‑20 °C to 70 °C) for both panel and touch module, making it suitable for rugged and industrial environments. It offers up to 300 nits brightness with LED backlight and a 900:1 contrast ratio, with an LVDS signal interface. The panel kit can be customized with optical bonding, anti‑glare / anti‑fingerprint / anti‑UV coating, and OEM logo printing — making it a flexible solution for HMI systems, industrial control panels, kiosks, automation control systems, and embedded display projects.

Key Features & Benefits

7\" LCD with PCAP Multi-Touch
Wide Operating Temperature Support
Up to 300 nits Brightness with LED Backlight (provide customization for higher brightness)
High Contrast Ratio up to 900:1
LVDS Signal Interface
Optical Bonding (Customized Solution)
Anti-reflective, Anti-fingerprint, Anti-glare, Anti-UV Panel Coating (Customized Solution)
Logo Customized Service

Applications & Use Cases

The PCC-OFP-AB07-C-01R is ideal for various industrial automation applications:

Extreme temperature environments and outdoor installations
Interactive control interfaces and operator panels
Interactive kiosk and self-service terminals
Outdoor and high-ambient-light environments
Visual monitoring and data display systems
Industrial control and monitoring systems
Factory automation and process control
Human-machine interface applications

Product Features
