Question 1

What is an HMI?

Accepted Answer

HMI stands for Human Machine Interface. It's a touchscreen panel that provides a visual interface for operators to interact with and control industrial equipment, machines, and automation systems.

Question 2

What are the main uses of HMI panels?

Accepted Answer

HMI panels are used in industrial automation for factory control, process monitoring, machine control, data acquisition, SCADA systems, and IIoT (Industrial Internet of Things) applications.

Question 3

What makes an HMI 'industrial grade'?

Accepted Answer

Industrial grade HMIs are designed for harsh environments with features like IP65/IP66 protection, extended temperature ranges, shock/vibration resistance, 24/7 operation capability, and natural cooling systems.

Question 4

What is the difference between resistive and capacitive touchscreens?

Accepted Answer

Resistive touchscreens can be operated with gloves or stylus and are pressure-sensitive, making them ideal for industrial environments. Capacitive touchscreens offer better clarity and multi-touch capabilities but require bare finger or special stylus operation.

Question 5

How long do HMI panels typically last?

Accepted Answer

Most industrial HMI panels are designed for extended lifecycles with backlights rated for 20,000-50,000 hours and components selected for long-term reliability. Many models offer 24/7 operation capabilities with proper maintenance.

Question 6

What are the key features of the ITV Series HMIs?

Accepted Answer

ITV Series HMIs feature ARM9 RISC architecture, 128MB SDRAM, dual Ethernet ports, USB Host/Client connectivity, RS232/RS485 communication, IP66 protection, MQTT support, OPC UA Server capability, and compatibility with over 500 PLC protocols.

Question 7

What screen sizes are available in the ITV Series?

Accepted Answer

The ITV Series is available in 7.0-inch (ITV407), 10.1-inch (ITV410), 12.1-inch (ITV412), and 15.0-inch (ITV415) screen sizes.

Question 8

What is the difference between ITV 22 Series and 24 Series?

Accepted Answer

The ITV 22 Series is the standard model, while the ITV 24 Series is an enhanced model with additional features and capabilities.

Question 9

Does the ITV Series support remote monitoring?

Accepted Answer

Yes, ITV Series HMIs support remote monitoring through IDCS (Intelligent Display Control System), allowing for remote access, PLC equipment monitoring, and alarm push notifications.

Question 10

What IoT platforms does the ITV Series support?

Accepted Answer

The ITV Series supports MQTT IoT platforms including WISE-PaaS, Alibaba Cloud, Amazon Web Services (AWS), and Microsoft Azure.

Question 11

What PLC brands are compatible with these HMI panels?

Accepted Answer

Our HMI panels support over 500 PLC communication protocols from major manufacturers including Siemens, Allen-Bradley, Mitsubishi, Omron, Delta, and many others.

Question 12

What programming software is used for these HMI panels?

Accepted Answer

Most of our HMI panels use PM Designer software, which runs on Windows 7/10 and allows for intuitive HMI application development with downloads via Serial, Ethernet, or USB connections.

Question 13

What is MQTT and why is it important for HMIs?

Accepted Answer

MQTT (Message Queuing Telemetry Transport) is a lightweight messaging protocol ideal for IIoT applications. HMIs with MQTT support can easily integrate with cloud platforms like AWS, Azure, and Alibaba Cloud for remote monitoring and data collection.

Question 14

What is OPC UA and how does it benefit HMI systems?

Accepted Answer

OPC UA (Open Platform Communications Unified Architecture) is a machine-to-machine communication protocol for industrial automation. HMIs with OPC UA Server capability can act as a standardized data exchange hub between different industrial systems and devices.

Question 15

How are HMI panels powered?

Accepted Answer

Most industrial HMI panels operate on 24VDC±10% power supply, with isolation for protection against electrical noise and surges common in industrial environments.

Question 16

What does IP65/IP66 protection mean?

Accepted Answer

IP65 protection means the device is totally protected against dust (6) and protected against low-pressure water jets (5). IP66 offers the same dust protection but with increased water protection against powerful water jets (6).

Question 17

How are HMI panels typically mounted?

Accepted Answer

HMI panels are typically panel-mounted through a cutout in a control cabinet or equipment enclosure, secured with mounting clips or screws, with the front face exposed for operator interaction.

Question 18

What is the recommended operating environment for HMI panels?

Accepted Answer

Most standard HMI panels operate reliably in temperatures from 0°C to 50°C with relative humidity between 10% and 90% (non-condensing). Extended temperature models can operate in ranges from -10°C to 60°C or wider.

Question 19

Do I need to install additional cooling for HMI panels?

Accepted Answer

Most industrial HMI panels use natural cooling systems and don't require additional cooling fans or systems when installed within their specified operating temperature range in well-ventilated enclosures.

Question 20

What maintenance is required for HMI panels?

Accepted Answer

HMI panels require minimal maintenance, typically limited to occasional cleaning of the touchscreen with appropriate non-abrasive cleaners and periodic backup of programming. The battery for the real-time clock may need replacement every 3-5 years.

Question 21

What should I do if the touchscreen becomes unresponsive?

Accepted Answer

For unresponsive touchscreens, first try power cycling the device. If issues persist, check for physical damage, verify power supply stability, and ensure the operating environment is within specifications. For resistive touchscreens, recalibration may be necessary.

Question 22

How can I resolve communication issues between HMI and PLC?

Accepted Answer

To resolve communication issues, verify physical connections and network settings, ensure both devices use the same communication protocol and parameters, check for address mapping errors, and confirm firmware compatibility between devices.

Question 23

What causes HMI panels to restart unexpectedly?

Accepted Answer

Unexpected restarts can be caused by power supply issues, excessive environmental temperatures, software conflicts, or the watchdog function detecting system hangs. Check power stability, environmental conditions, and review recent software changes.

Question 24

How can I retrieve lost HMI project files?

Accepted Answer

If project files are lost, check for backups on development computers, Micro SD cards, or USB drives used with the HMI. Some HMI models allow project upload from the device to a computer, though this may not include all source elements.

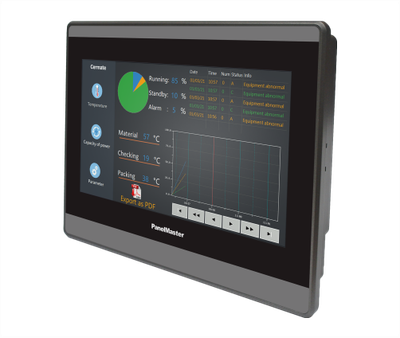

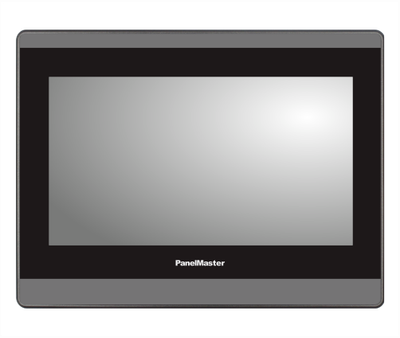

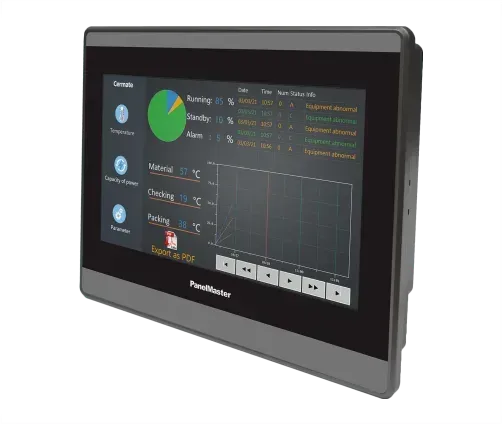

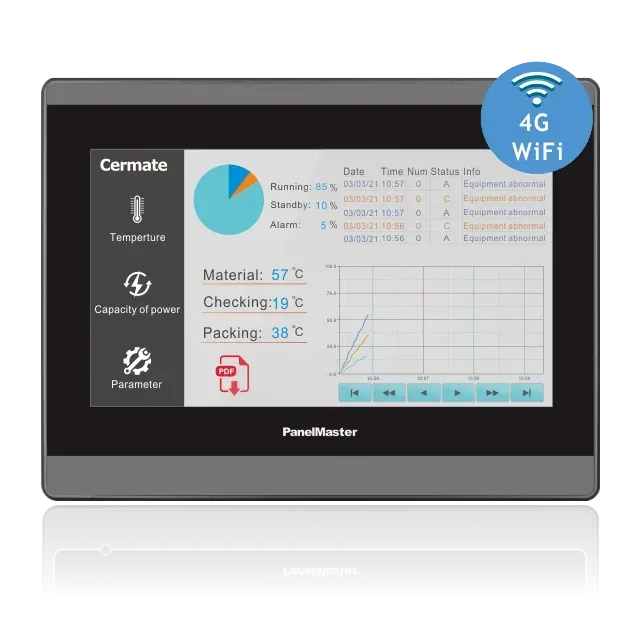

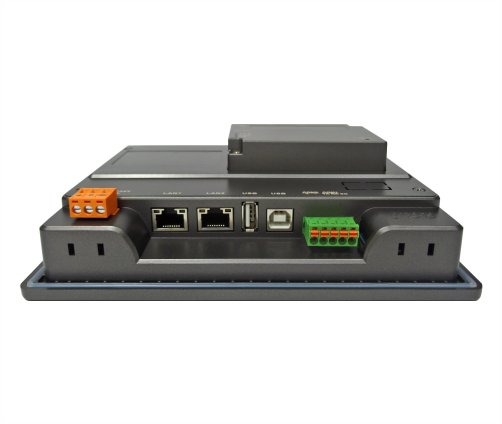

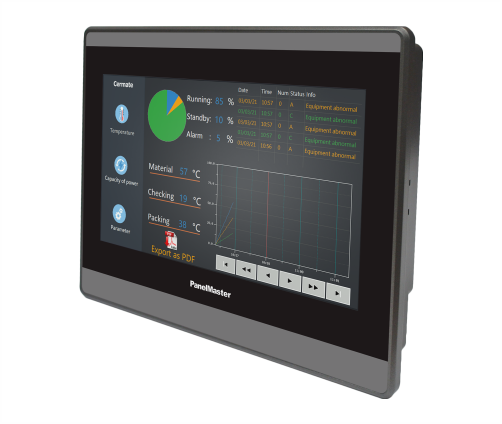

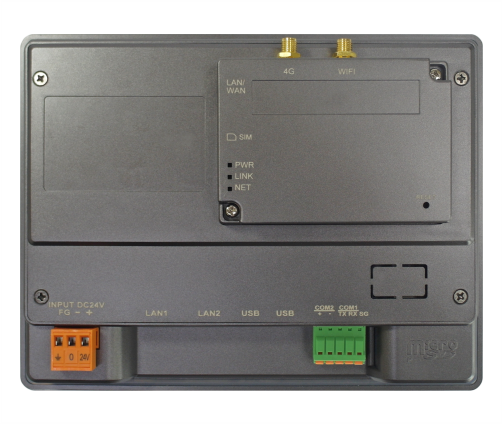

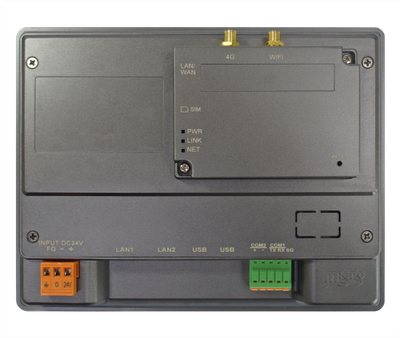

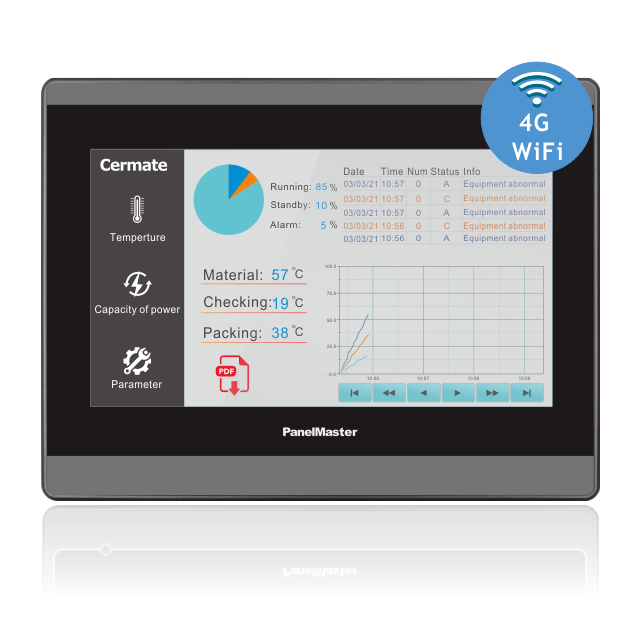

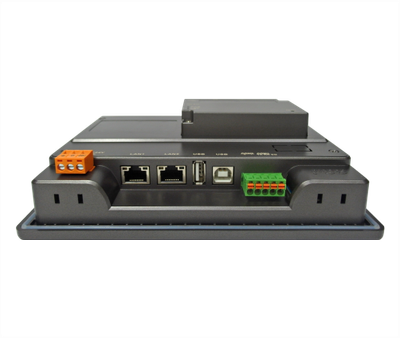

ITV407-24
