eV058-TST

*Price on request. Contact us for a quote.

Manufacturer: Exor

5.7” TFT color display, 256 colors, LED backlight
320x240 pixels
Resistive touchscreen
Portrait mode operation
4MB user memory

Product Description

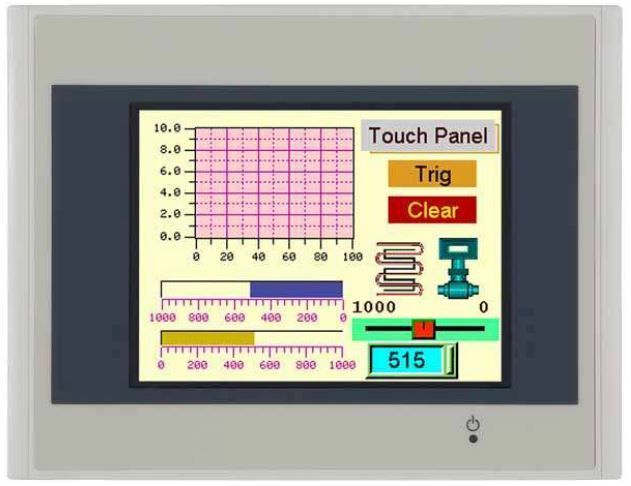

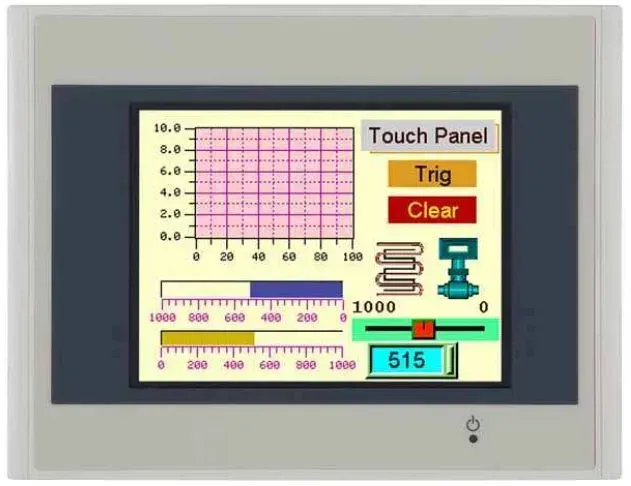

The effectiView eV058-TST and eV058-TNT are compact HMI panels with a 5.7-inch TFT display and resistive touchscreen, designed for entry-level automation applications.

They feature efficient programming with eVDesigner software, multiple communication interfaces, data acquisition, trend presentation, and multilingual support. The eV058-TNT model includes a 10/100 Ethernet interface.

Both models offer a durable design with IP65-rated front panel protection, ensuring reliable operation in industrial environments.

Technical Specifications

Display

Size

5.7" diagonal

Max. Resolution

320*240

Type

TFT

Max. Colors

256

Backlight

LED

Dimming

Touch Screen

Analog resistive

System LED indicators

Memory

Hardware RTC

Yes, with battery back-up

User Memory

4MB Flash

System memory

128KB - 1MB RAM with battery back-up

Data File Memory

64MB

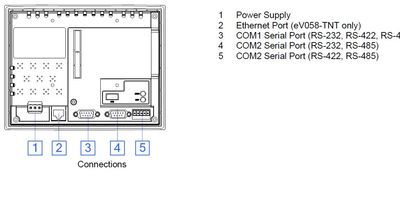

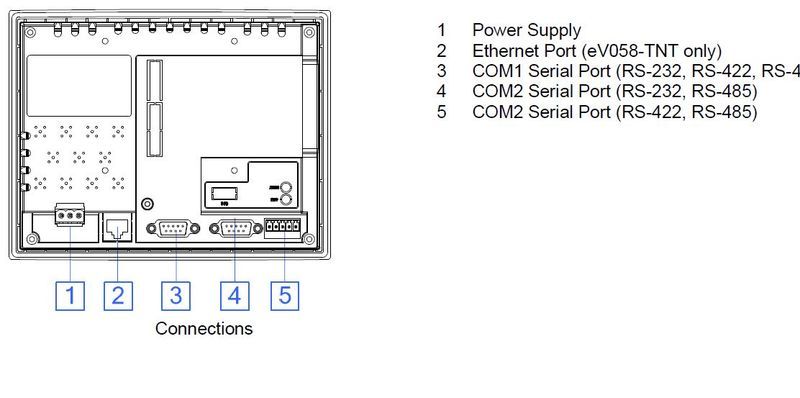

Communication Interface

Serial

COM1 RS-232, RS-422, RS-485

COM2 RS-422, RS-485

Ethernet

Power

Supply Voltage

24VDC

Current Consumption

0.4A

Environment

Operating Temperature

0°C~50°C

Storage Temperature

-20°C to 50°C

Relative Humidity

10%~90%

CE

Emission EN 61000-6-4

Immunity EN 61000-6-2

for installation in industrial environments

Ingress Protection

IP65 Front

IP20 Rear

Cooling

Natural Cooling

Mechanism Spec.

Dimension WxHxD (mm)

186mm x 145mm x 38mm

Cutout Dimension AxB (mm)

174.5mm × 132.5mm

Net Weight (Kg)

0.6kg

Software

Software Version

eV Designer

What is eV058-TST?

The eV058-TST is a hmi - human machine interface manufactured by Exor, designed specifically for human-machine-interface applications. The effectiView eV058-TST and eV058-TNT are compact HMI panels with a 5.7-inch TFT display and resistive touchscreen, designed for entry-level automation applications. They feature efficient programming with eVDesigner software, multiple communication interfaces, data acquisition, trend presentation, and multilingual support. The eV058-TNT model includes a 10/100 Ethernet interface. Both models offer a durable design with IP65-rated front panel protection, ensuring reliable operation in industrial environments.

Key Features & Benefits

5.7” TFT color display, 256 colors, LED backlight
320x240 pixels
Resistive touchscreen
Portrait mode operation
4MB user memory

Applications & Use Cases

The eV058-TST is ideal for various industrial automation applications:

Interactive control interfaces and operator panels
Human-machine interface for industrial automation
Memory-intensive applications and multitasking
Manufacturing process control and monitoring
Visual monitoring and data display systems
Production line visualization and control
Quality control and inspection systems
Data acquisition and logging systems
