eV121-VNT
Series: eV
Manufactured byExor

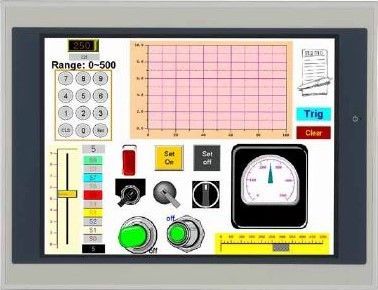

The effectiView eV121-TNT is a high-performance HMI panel with a 12.1-inch TFT display and resistive touchscreen. It features 800x600 resolution, 64K colors, and CCFL backlighting. The panel offers versatile connectivity with 10/100 Ethernet and two USB 2.0 Host interfaces. Key functionalities include efficient programming with eVDesigner software, data acquisition, trend presentation, multilingual support, and robust security features. The IP65-rated front panel ensures reliability in industrial environments.
Key Features
- 12.1" TFT color display, 64K colors, CCFL backlight
- 800x600 pixel screen resolution
- Resistive touchscreen
- Portrait mode operation
- 10/100 Ethernet interface
- 2x USB 2.0 Host interfaces
- 16MB user memory
Technical Specifications
Display
| Size | 12.1" diagonal |
|---|---|
| Max. Resolution | 800x600 |
| Type | TFT |
| Max. Colors | 64K |
| Backlight | CCFL |
| Dimming | Yes |
| Touch Screen | Analog resistive |
| System LED indicators | 1 |
Memory
| Hardware RTC | Yes, with battery back-up |
|---|---|
| User Memory | 16MB Flash |
| System Memory | 128KB - 1MB RAM with battery back-up |
Communication Interface
| Serial | COM1 RS-232, RS-422, RS-485, COM2 RS-422, RS-485, COM3 RS-232 |
|---|---|
| Ethernet | 10/100 |
| USB | 2x Host V2.0 |
Power
| Supply Voltage | 24VDC |
|---|---|
| Current Consumption | 1.2A |
Environment
| Operating Temperature | 0°C~50°C |
|---|---|
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 10%~90% |
| CE | Emission EN 61000-6-4, Immunity EN 61000-6-2, for installation in industrial environments |
| Ingress Protection | IP65 Front, IP20 Rear |
| Cooling | Natural Cooling |
Mechanism Spec.
| Dimension WxHxD (mm) | 315mm x 241mm x 50mm |
|---|---|
| Cutout Dimension AxB (mm) | 301.5mm × 228mm |
| Net Weight (Kg) | 2.2kg |
Software
| Software Version | eV Designer |
|---|
