AIB-NIAO-S

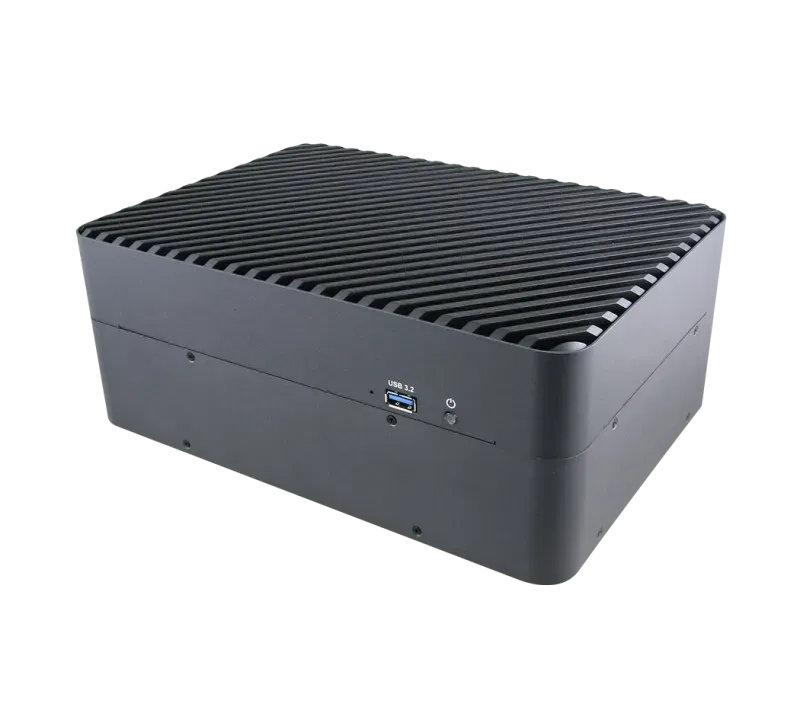

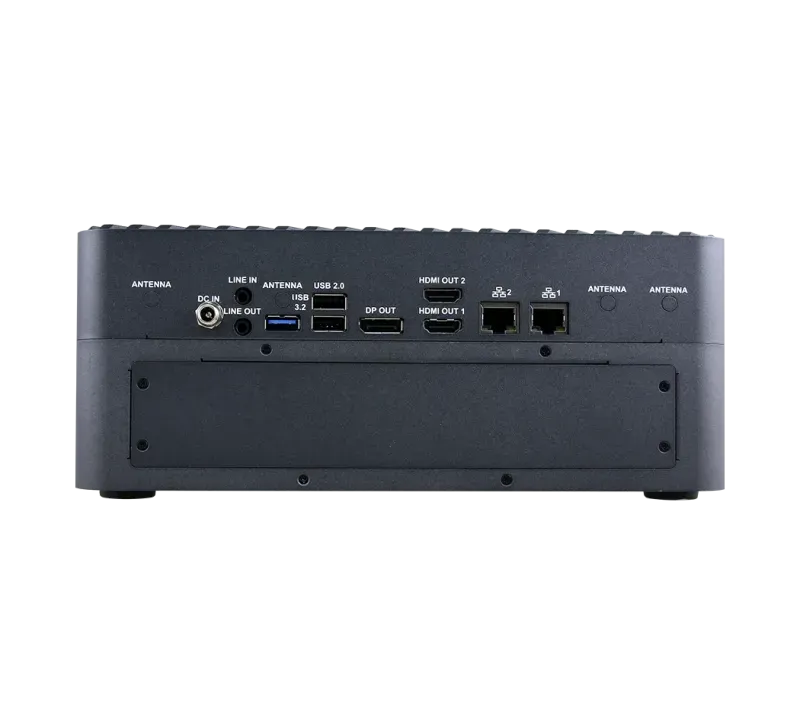

AIB-NIAO-S FrontAIB-NIAO-S FrontAIB-NIAO-S Front
AIB-NIAO-S, Image 1AIB-NIAO-S, Image 2AIB-NIAO-S, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Highly integrated fanless edge AI server, NVIDIA Jetson AGX Orin™ 32GB/64GB
  • Up to 200/275 TOPS AI performance
  • 32/64GB 256-bit LPDDR5 (204.8GB/s), 64GB eMMC
  • 2 x PCIe Gen3 x4 slots
  • 3 x M.2 M-Key / 1 x M.2 E-Key / 1 x M.2 B-Key
  • 2 x USB 3.2 Gen1 + 2 x USB 2.0 Type-A, dual GbE
  • 2 x HDMI 2.0, 1 x DP, 16 internal MIPI CSI-2 lanes
  • CAN bus / UART / I2C / SPI, audio in/out
  • DC 12~28V input, 0~60°C with airflow; Ubuntu / JetPack

Product Description

The Avalue AIB-NIAO-S is a highly integrated, fanless edge AI server built on the NVIDIA Jetson AGX Orin™ (32GB/64GB) module, delivering up to 200/275 TOPS for demanding vision and inference workloads.

With 32/64GB 256-bit LPDDR5 (204.8GB/s), 64GB onboard eMMC and rich PCIe/M.2 expansion, it pairs AGX Orin performance with broad camera and storage I/O.

It provides 2x USB 3.2 Gen1 + 2x USB 2.0 Type-A, dual GbE, dual HDMI 2.0, DP, 16 internal MIPI CSI-2 lanes, 2x PCIe Gen3 x4, multiple M.2 (M/E/B-Key) slots and audio in/out on a 12~28V input over 0~60°C, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2, in a 265 x 187 x 105 mm, ~4.2kg enclosure.

Technical Specifications

NVIDIA Platform

NVIDIA Jetson AGX Orin™ 32GB/64GB

AI Performance

200/275 TOPS

System Memory

32/64GB 256 bit LPDDR5 204.8GB/s

OS

Ubuntu 20.04 / Ubuntu 22.04

Kernal

5.10.104-tegra or Higher

BSP

Linux for Tegra(L4T) R35.1 or Higher

SDK

JetPack 5.1.1 / JetPack 6.2 or Higher

AI SDK GitHub

https://github.com/Avalue-Technology/repositories.directory

Storage

64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module)

USB Port

2×USB3.2 Gen1 ( Type A )

2×USB2.0 ( Type A )

LAN Port

2 x RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client )

HDMI

2×HDMI2.0

DP

1×DP

MIPI (Internal)

16×MIPI CSI 2 Lanes ( D PHY 2.1, 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes, Support MIPI Camera, Capture Card )

Antenna

2 x Antenna Mounting with Dust Protection Cover

AC/DC Input

1 x DC Jack

Audio

1×3.5mm Line In

1×3.5mm Line Out

PCIe

1×PCIe Gen3×4 Slot( Slot(*)

1×PCIe Gen3×4 Slot(**)

Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use

Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use

M.2

1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot

1×M.2 2280 M Key PCIe Gen4×4 Slot

1×M.2 2280 M Key PCIe Gen4×4 Slot(*)

1×M.2 3080 M Key PCIe Gen4×4 Slot(**)

1×M.2 3042 B Key USB3.2 Gen2 ( 10G ) Slot

* Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use

** Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use

Power Requirement

DC input : 12 ~28 V

Operating Temperature

Standard Version: 0~60。C with Airflow

Storage Temperature

-20~80。C

Dimension (W x L x H)

265.08mm×186.70mm×105.29mm

Weight

4200g

Ordering Information

AIB-NIAO-S32X-A1R:Orin AGX 32GB/64GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2, AIB-NIAO-S64X-A1R:Orin AGX 64GB/64GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2, AIB-NIAO-S32E-A1R:Orin AGX 32GB/64GB SSD/PSE/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2, AIB-NIAO-S64E-A1R:Orin AGX 64GB/64GB SSD/PSE/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2

PCIe Model

4×HDMI2.0

4×12G-SDI

16×TVI / AHD

8×GMSL2

4×HDMI

4×6G-SDI

M.2 Model

1×HDMI2.0

1×12G-SDI

1×DVI-I

1×YPbPr

1×VGA

SDK / Software

By request

AGX 5G

5G Mobility Network ( Supports 5G / 4G / 3G SIM Module)

AGX PSE

"*IP Camera

8×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant

*PSE Power Supply

8×15W ( IEEE802.3af )"

What is AIB-NIAO-S?

The AIB-NIAO-S is a ai computing platforms manufactured by Avalue, designed specifically for nvidia-solution applications. The Avalue AIB-NIAO-S is a highly integrated, fanless edge AI server built on the NVIDIA Jetson AGX Orin™ (32GB/64GB) module, delivering up to 200/275 TOPS for demanding vision and inference workloads. With 32/64GB 256-bit LPDDR5 (204.8GB/s), 64GB onboard eMMC and rich PCIe/M.2 expansion, it pairs AGX Orin performance with broad camera and storage I/O. It provides 2x USB 3.2 Gen1 + 2x USB 2.0 Type-A, dual GbE, dual HDMI 2.0, DP, 16 internal MIPI CSI-2 lanes, 2x PCIe Gen3 x4, multiple M.2 (M/E/B-Key) slots and audio in/out on a 12~28V input over 0~60°C, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2, in a 265 x 187 x 105 mm, ~4.2kg enclosure.

Key Features & Benefits

  • Highly integrated fanless edge AI server, NVIDIA Jetson AGX Orin™ 32GB/64GB
  • Up to 200/275 TOPS AI performance
  • 32/64GB 256-bit LPDDR5 (204.8GB/s), 64GB eMMC
  • 2 x PCIe Gen3 x4 slots
  • 3 x M.2 M-Key / 1 x M.2 E-Key / 1 x M.2 B-Key
  • 2 x USB 3.2 Gen1 + 2 x USB 2.0 Type-A, dual GbE
  • 2 x HDMI 2.0, 1 x DP, 16 internal MIPI CSI-2 lanes
  • CAN bus / UART / I2C / SPI, audio in/out
  • DC 12~28V input, 0~60°C with airflow; Ubuntu / JetPack

Applications & Use Cases

The AIB-NIAO-S is ideal for various industrial automation applications:

  • Dust-sensitive environments and silent operation requirements
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
  • Edge computing and IoT applications
