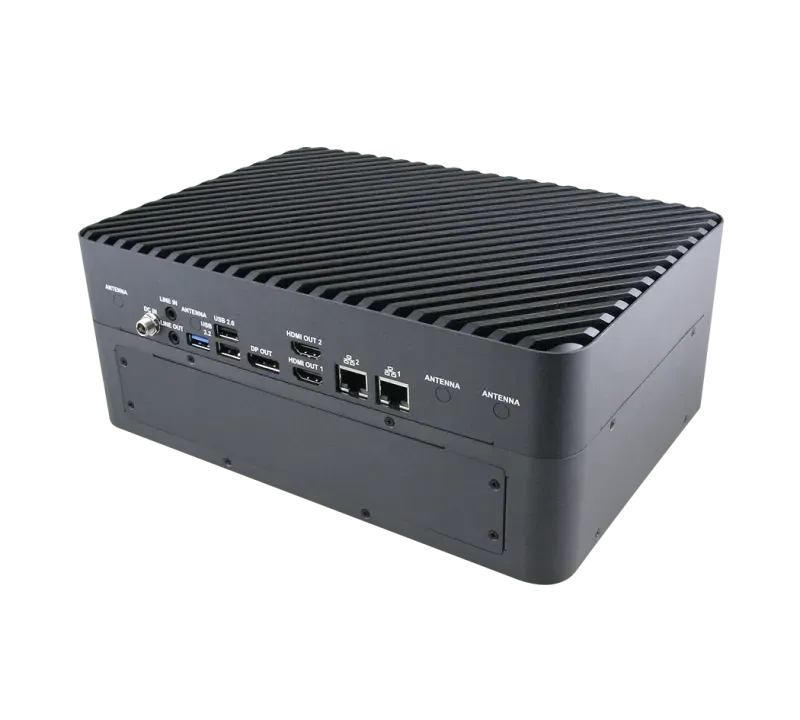

AIB-NIAO-S

Series: AIB

Manufactured byAvalue

The Avalue AIB-NIAO-S is a highly integrated, fanless edge AI server built on the NVIDIA Jetson AGX Orin™ (32GB/64GB) module, delivering up to 200/275 TOPS for demanding vision and inference workloads. With 32/64GB 256-bit LPDDR5 (204.8GB/s), 64GB onboard eMMC and rich PCIe/M.2 expansion, it pairs AGX Orin performance with broad camera and storage I/O. It provides 2x USB 3.2 Gen1 + 2x USB 2.0 Type-A, dual GbE, dual HDMI 2.0, DP, 16 internal MIPI CSI-2 lanes, 2x PCIe Gen3 x4, multiple M.2 (M/E/B-Key) slots and audio in/out on a 12~28V input over 0~60°C, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2, in a 265 x 187 x 105 mm, ~4.2kg enclosure.

Key Features

Highly integrated fanless edge AI server, NVIDIA Jetson AGX Orin™ 32GB/64GB
Up to 200/275 TOPS AI performance
32/64GB 256-bit LPDDR5 (204.8GB/s), 64GB eMMC
2 x PCIe Gen3 x4 slots
3 x M.2 M-Key / 1 x M.2 E-Key / 1 x M.2 B-Key
2 x USB 3.2 Gen1 + 2 x USB 2.0 Type-A, dual GbE
2 x HDMI 2.0, 1 x DP, 16 internal MIPI CSI-2 lanes
CAN bus / UART / I2C / SPI, audio in/out
DC 12~28V input, 0~60°C with airflow; Ubuntu / JetPack

Technical Specifications

System Information

NVIDIA Platform	NVIDIA Jetson AGX Orin™ 32GB/64GB
AI Performance	200/275 TOPS
System Memory	32/64GB 256 bit LPDDR5 204.8GB/s

Development Environment

OS	Ubuntu 20.04 / Ubuntu 22.04
Kernal	5.10.104-tegra or Higher
BSP	Linux for Tegra(L4T) R35.1 or Higher
SDK	JetPack 5.1.1 / JetPack 6.2 or Higher
AI SDK GitHub	https://github.com/Avalue-Technology/repositories.directory

Storage

Storage	64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module)

I/O

USB Port	2×USB3.2 Gen1 ( Type A ), 2×USB2.0 ( Type A )
LAN Port	2 x RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client )
HDMI	2×HDMI2.0
DP	1×DP
MIPI (Internal)	16×MIPI CSI 2 Lanes ( D PHY 2.1, 4×4 \| 3×4+2×2 \| 2×4+4×2 \| 1×4+5×2 \| 6×2 MIPI Lanes, Support MIPI Camera, Capture Card )
Antenna	2 x Antenna Mounting with Dust Protection Cover
AC/DC Input	1 x DC Jack
Audio	1×3.5mm Line In, 1×3.5mm Line Out

Expansion

PCIe	1×PCIe Gen3×4 Slot( Slot(), 1×PCIe Gen3×4 Slot(*), Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use, Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use
M.2	1×M.2 2230 E Key PCIe Gen41/USB2.0/SDIO Slot, 1×M.2 2280 M Key PCIe Gen4×4 Slot, 1×M.2 2280 M Key PCIe Gen4×4 Slot(), 1×M.2 3080 M Key PCIe Gen4×4 Slot(*), 1×M.2 3042 B Key USB3.2 Gen2 ( 10G ) Slot, Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use, ** Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use

Mechanical & Environmental

Power Requirement	DC input : 12 ~28 V
Operating Temperature	Standard Version: 0~60。C with Airflow
Storage Temperature	-20~80。C
Dimension (W x L x H)	265.08mm×186.70mm×105.29mm
Weight	4200g

Ordering Information

Ordering Information	AIB-NIAO-S32X-A1R:Orin AGX 32GB/64GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2, AIB-NIAO-S64X-A1R:Orin AGX 64GB/64GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2, AIB-NIAO-S32E-A1R:Orin AGX 32GB/64GB SSD/PSE/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2, AIB-NIAO-S64E-A1R:Orin AGX 64GB/64GB SSD/PSE/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2

Capture Card ( Optional )

PCIe Model	4×HDMI2.0, 4×12G-SDI, 16×TVI / AHD, 8×GMSL2, 4×HDMI, 4×6G-SDI
M.2 Model	1×HDMI2.0, 1×12G-SDI, 1×DVI-I, 1×YPbPr, 1×VGA

Optional Product Features Extension by Daughter Board

SDK / Software	By request
AGX 5G	5G Mobility Network ( Supports 5G / 4G / 3G SIM Module)
AGX PSE	"IP Camera, 8×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant, PSE Power Supply, 8×15W ( IEEE802.3af )"
