AIB-NINX-S

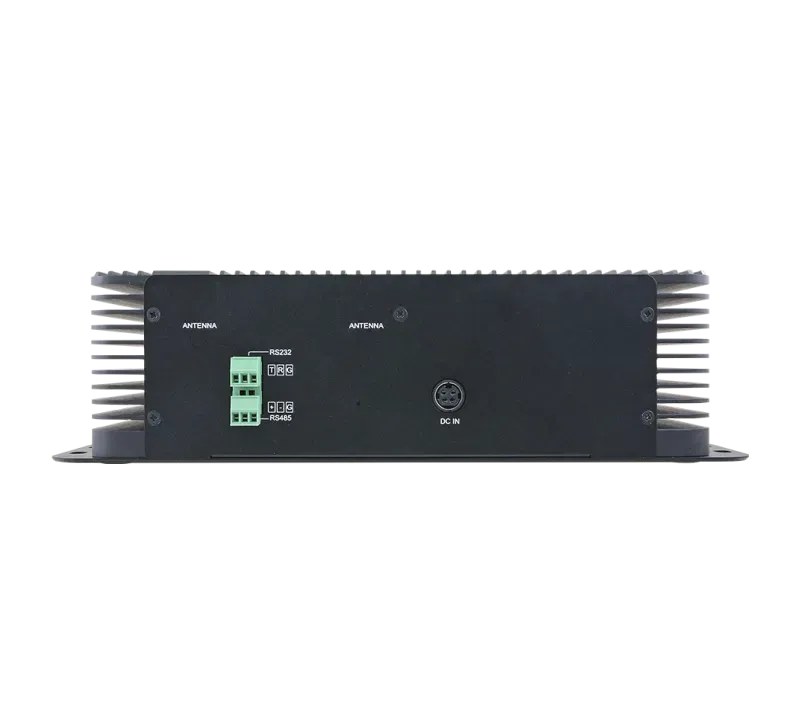

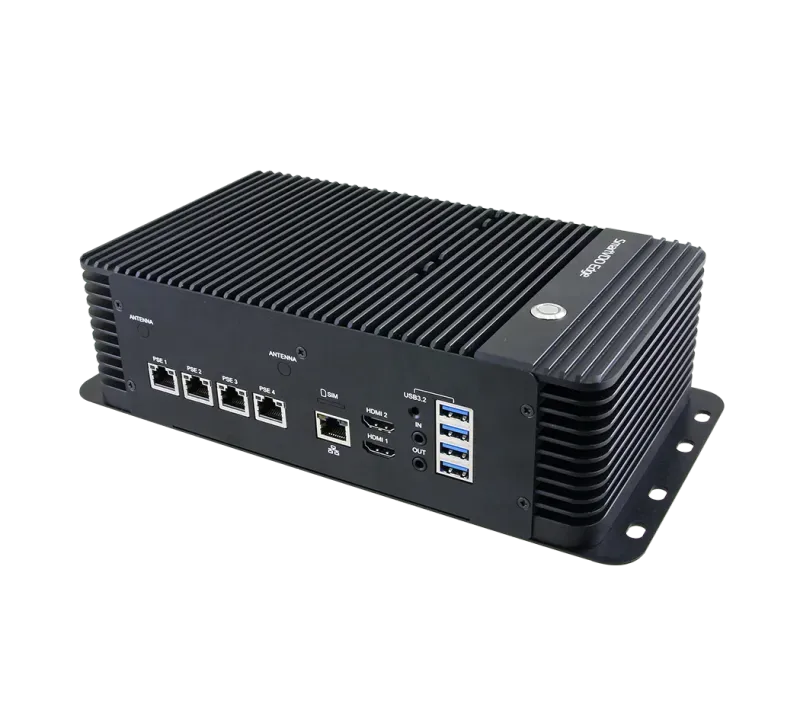

AIB-NINX-S FrontAIB-NINX-S FrontAIB-NINX-S Front

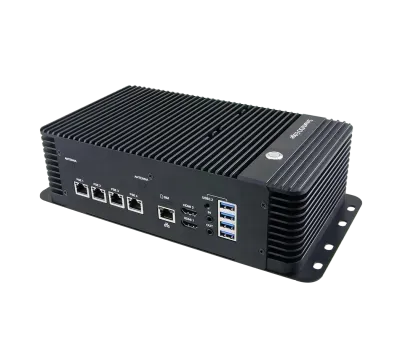

AIB-NINX-S, Image 1AIB-NINX-S, Image 2AIB-NINX-S, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Compact fanless edge AI platform, NVIDIA Jetson Orin™ NX 8GB/16GB
  • Up to 70/100 TOPS AI performance
  • 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage
  • 3 x M.2 M-Key PCIe Gen4 (x4 / x2 / x1) slots
  • 4 x USB 3.2 Gen2 Type-A + 2 x USB 3.2 Gen1 header
  • 2 x HDMI 2.0, 8 internal MIPI CSI-2 lanes
  • RS-232 / RS-485, audio in/out, 1 x GbE
  • DC 9~36V or 48V PSE input, 0~60°C with airflow
  • Ubuntu 20.04/22.04, JetPack 5.1.1 / 6.2

Product Description

The Avalue AIB-NINX-S is a compact, fanless edge AI platform built on the NVIDIA Jetson Orin™ NX (8GB/16GB) module, delivering up to 70/100 TOPS for vision and inference at the edge.

With 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage and triple M.2 M-Key PCIe Gen4 slots, it pairs rich camera and serial I/O with a rugged fanless design.

It provides 4x USB 3.2 Gen2 Type-A, dual HDMI 2.0, 8 internal MIPI CSI-2 lanes, RS-232/RS-485, audio in/out and a wide 9~36V (or 48V PSE) input over a 0~60°C range, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2, in a 286 x 144 x 76.6 mm, ~1.85kg enclosure.

Technical Specifications

NVIDIA Platform

NVIDIA Jetson Orin™ NX 8GB/16GB

AI Performance

70/100 TOPS

System Memory

8/16GB 128 bit LPDDR5 102.4GB/s

OS

Ubuntu 20.04 / Ubuntu 22.04

Kernal

5.10.104 tegra or Higher

BSP

Linux for Tegra(L4T) R35.3.1 or Higher

SDK

JetPack 5.1.1 / JetPack 6.2 or Higher

AI SDK GitHub

https://github.com/Avalue-Technology/repositories.directory

M.2

128 GB

Storage

Supports External NVMe

USB Port

4×USB3.2 Gen2 ( Type-A )

2×USB3.2 Gen1 ( Pin Header )

LAN Port

1 x RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client )

HDMI

2 x HDMI2.0

MIPI (Internal)

8 MIPI CSI 2 Lanes ( D PHY 2.1, Support MIPI Camera, Capture Card )

Antenna

4 x Antenna Mounting with Dust Protection Cover

AC/DC Input

1 x DC Jack

Audio

1×3.5mm Line In

1×3.5mm Line Out

RS232

1×RS232 ( Phoenix Connector)

RS485

1×RS485 ( Phoenix Connector)

SIM Card Slot

Optional

M.2

1×M.2 2280/3080 M Key PCIe Gen4×4 Slot

1×M.2 2280 M Key PCIe Gen4×1 Slot

1×M.2 2280 M Key PCIe Gen4×2 Slot (HDMI 2.0 Model)

Power Requirement

DC input : 9~36V / DC Input : 48V (PSE model)

Operating Temperature

0~60C° with Airflow

Storage Temperature

-20~70 C°

Dimension (W x L x H)

286mm × 144mm × 76.6mm

Weight

1850g

Ordering Information

AIB-NINX-S08B-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04, Jetpack 5.1.1 or JetPack 6.2 / HDMI 2.0, AIB-NINX-S16B-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / HDMI 2.0, AIB-NINX-S08E-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / PSE, AIB-NINX-S16E-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / PSE, AIB-NINX-S08X-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2, AIB-NINX-S16X-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2

SDK / Software

By request

NX 5G

5G Mobility Network ( Supports 5G / 4G / 3G SIM Module)

NX PSE

"*IP Camera

4×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant

*PSE Power Supply

4×15W ( IEEE802.3af )"

What is AIB-NINX-S?

The AIB-NINX-S is a ai computing platforms manufactured by Avalue, designed specifically for nvidia-solution applications. The Avalue AIB-NINX-S is a compact, fanless edge AI platform built on the NVIDIA Jetson Orin™ NX (8GB/16GB) module, delivering up to 70/100 TOPS for vision and inference at the edge. With 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage and triple M.2 M-Key PCIe Gen4 slots, it pairs rich camera and serial I/O with a rugged fanless design. It provides 4x USB 3.2 Gen2 Type-A, dual HDMI 2.0, 8 internal MIPI CSI-2 lanes, RS-232/RS-485, audio in/out and a wide 9~36V (or 48V PSE) input over a 0~60°C range, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2, in a 286 x 144 x 76.6 mm, ~1.85kg enclosure.

Key Features & Benefits

  • Compact fanless edge AI platform, NVIDIA Jetson Orin™ NX 8GB/16GB
  • Up to 70/100 TOPS AI performance
  • 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage
  • 3 x M.2 M-Key PCIe Gen4 (x4 / x2 / x1) slots
  • 4 x USB 3.2 Gen2 Type-A + 2 x USB 3.2 Gen1 header
  • 2 x HDMI 2.0, 8 internal MIPI CSI-2 lanes
  • RS-232 / RS-485, audio in/out, 1 x GbE
  • DC 9~36V or 48V PSE input, 0~60°C with airflow
  • Ubuntu 20.04/22.04, JetPack 5.1.1 / 6.2

Applications & Use Cases

The AIB-NINX-S is ideal for various industrial automation applications:

  • Dust-sensitive environments and silent operation requirements
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Legacy equipment integration and serial communication
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
