Avalue · Computer-on-Module

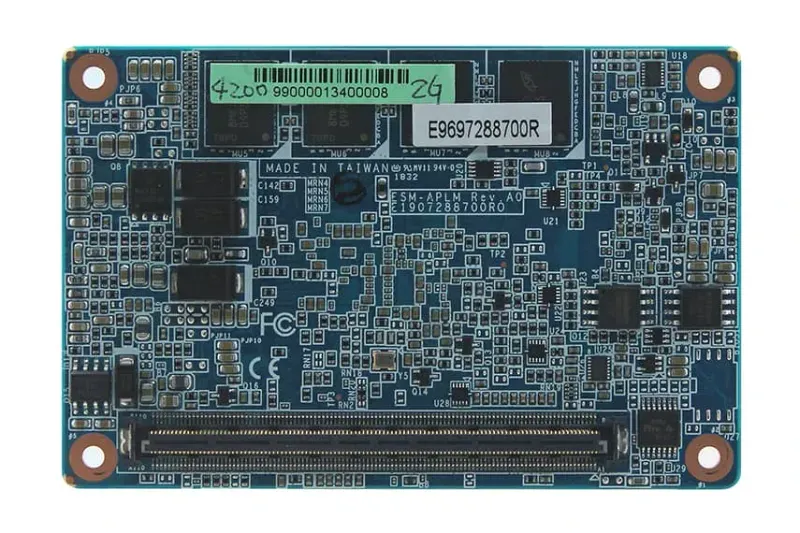

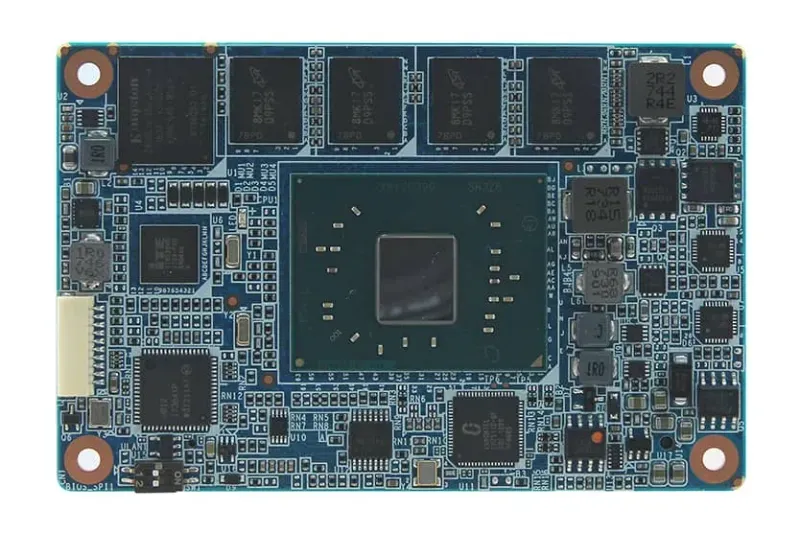

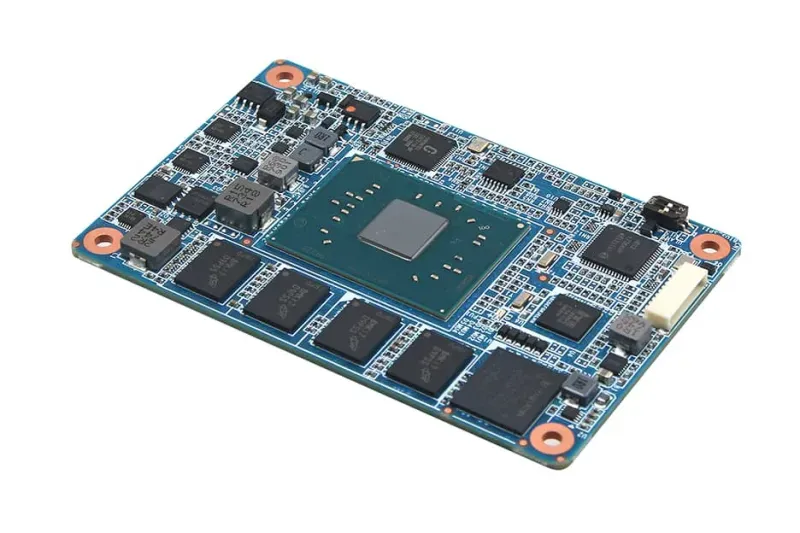

ESM-APLM

ESM-APLM FrontESM-APLM FrontESM-APLM Front
ESM-APLM, Image 1ESM-APLM, Image 2ESM-APLM, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • COM Express 3.0 Mini Type 10 module (84 x 55 mm)
  • Intel® Celeron® N3350 / Pentium® N4200 (Apollo Lake) SoC, 6W TDP
  • Onboard DDR3L 1600/1333MHz up to 8GB
  • Optional eMMC 5.1 up to 128GB
  • 1 x PCIe x4 (Gen2), 2 x SATA 3.0
  • 2 x USB 3.1 Gen1 + 8 x USB 2.0
  • 1 x Intel I210AT GbE, Intel HD Audio
  • DP 1.2 (4K) / HDMI 1.4b / LVDS / optional eDP
  • 0~60°C; ATX/AT 4.75~20V input; CE / FCC / RoHS

Product Description

The Avalue ESM-APLM is a COM Express 3.0 Mini Type 10 module (84 x 55 mm) built on the Intel® Celeron® N3350 or Pentium® N4200 (Apollo Lake) SoC BGA processor, designed as a compact, ultra-low-power x86 compute core for size- and power-constrained embedded designs.

With onboard DDR3L 1600/1333MHz up to 8GB, optional eMMC 5.1 up to 128GB and a 6W TDP, it delivers a complete x86 subsystem on the smallest COM Express pin-out.

It offers a PCIe x4 (Gen2) lane set, 2x SATA 3.0, 2x USB 3.1 Gen1 + 8x USB 2.0, Intel I210AT GbE, Intel HD Audio, and digital display (DP 1.2 4K, HDMI 1.4b, single-channel LVDS or optional eDP), running Windows 10 (64-bit) or Linux (kernel 4.5+), over a 0~60°C range with a wide 4.75~20V input.

Technical Specifications

Processor

Intel® Pentium® N4200 2.50 GHz (Burst) | 1.1 GHz Clock Quad Core L2 cache 2MB 6W TDP

Intel® Celeron® N3350 2.40 GHz (Burst) | 1.1 GHz Clock Dual Core L2 cache 1MB 6W TDP

System Memory

Onboard DDR3L 1600&1333MHz Memory Support Up to 8 GB

I/O Chipset

EC iTE IT8528VG

BIOS

AMI UEFI BIOS, 128Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

H/W Status Monitor

Monitoring System Temperature

Voltage and FAN Status with Auto Throttling Control

Expansion

1 x PCIe x4 (Supports x1, x2, x4, Optional 1 x PCIe x4 While Removing Ethernet) Compliant to PCIe Gen2 5.0 GT/s

Storage

eMMC 5.1 Up to 128G (Optional)

Graphic Chipset

Intel® SoC Integrated Graphics

LVDS

Single Channel 18/24-bit LVDS From eDP-to-LVDS IC CH7511B

LVDS: Up to 1920 x 1080@60 Hz

Digital Display Interface

DDI0 Supports DisplayPort/HDMI/DVI-D

DisplayPort 1.2 up to 4096×2160@60Hz

HDMI 1.4b: Up to 3840 x 2160@30 Hz

eDP

4 Lane Support (Build Option, In Place of LVDS)

eDP 1.3: up to 3840 x 2160@60 Hz (Optional)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx Gigabit Ethernet Compatible

OS

Windows 10 Enterprise (64-bit)

Linux (Kernel 4.5) above

Certification Information

CE, FCC Class, RoHS Compliant

USB

2 x USB 3. 1 (Gen1)

8 x USB 2.0

GPIO

1 x 8bit GPIO

SATA

2 x SATA 3.0 (6 Gb/s)

MIO

1 x SMBus

1 x LPC

Operating Temp.

Standard: 0°C to 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs(0.2kg)

Power Requirement

Standard Input

ATX: 4.75V~20V, 5Vsb ±5%;

AT: 4.75V~20V

Power Mode

ATX/AT

Dimension (L x W)

84 x 55 mm (3.31 x 2.17)

Ordering Information

ESM-APLM-4200-B2R | Intel® Pentium® SoC Processor N4200 Type10 COMe Mini Module

ESM-APLM-3350-B2R | Intel® Celeron® SoC Processor N3350 Type10 COMe Mini Module

EEV-EX15-A1R | MiniITX Ev. Board for COMe Type 10 A1

ACC-ESMAPLM-SK-1R | Heatsink for ESM-APLM W/O FAN H=26 mm

ACC-ESMAPLM-SK-2R | Heatsink for ESM-APLM W/O FAN H=26 mm with pad for eMMC

ACC-ESMAPLM-SD-1R | Heatspreader for ESM-APLM W/O FAN H=13 mm

ACC-ESMAPLM-SD-2R | Heatspreader for ESM-APLM W/O FAN H=13 mm with pad for eMMC

What is ESM-APLM?

The ESM-APLM is a computer-on-module manufactured by Avalue, designed specifically for com-express-type-10 applications. The Avalue ESM-APLM is a COM Express 3.0 Mini Type 10 module (84 x 55 mm) built on the Intel® Celeron® N3350 or Pentium® N4200 (Apollo Lake) SoC BGA processor, designed as a compact, ultra-low-power x86 compute core for size- and power-constrained embedded designs. With onboard DDR3L 1600/1333MHz up to 8GB, optional eMMC 5.1 up to 128GB and a 6W TDP, it delivers a complete x86 subsystem on the smallest COM Express pin-out. It offers a PCIe x4 (Gen2) lane set, 2x SATA 3.0, 2x USB 3.1 Gen1 + 8x USB 2.0, Intel I210AT GbE, Intel HD Audio, and digital display (DP 1.2 4K, HDMI 1.4b, single-channel LVDS or optional eDP), running Windows 10 (64-bit) or Linux (kernel 4.5+), over a 0~60°C range with a wide 4.75~20V input.

Key Features & Benefits

  • COM Express 3.0 Mini Type 10 module (84 x 55 mm)
  • Intel® Celeron® N3350 / Pentium® N4200 (Apollo Lake) SoC, 6W TDP
  • Onboard DDR3L 1600/1333MHz up to 8GB
  • Optional eMMC 5.1 up to 128GB
  • 1 x PCIe x4 (Gen2), 2 x SATA 3.0
  • 2 x USB 3.1 Gen1 + 8 x USB 2.0
  • 1 x Intel I210AT GbE, Intel HD Audio
  • DP 1.2 (4K) / HDMI 1.4b / LVDS / optional eDP
  • 0~60°C; ATX/AT 4.75~20V input; CE / FCC / RoHS

Applications & Use Cases

The ESM-APLM is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
