Avalue · Computer-on-Module

ESM-APLC

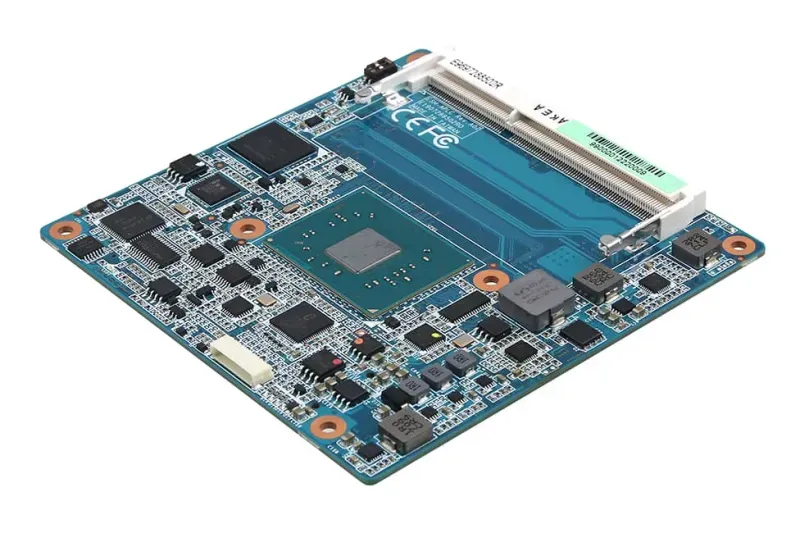

ESM-APLC FrontESM-APLC FrontESM-APLC Front

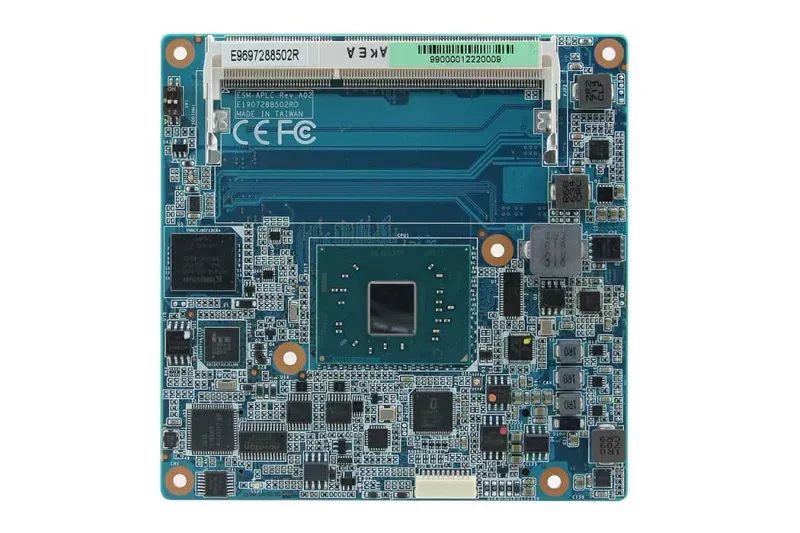

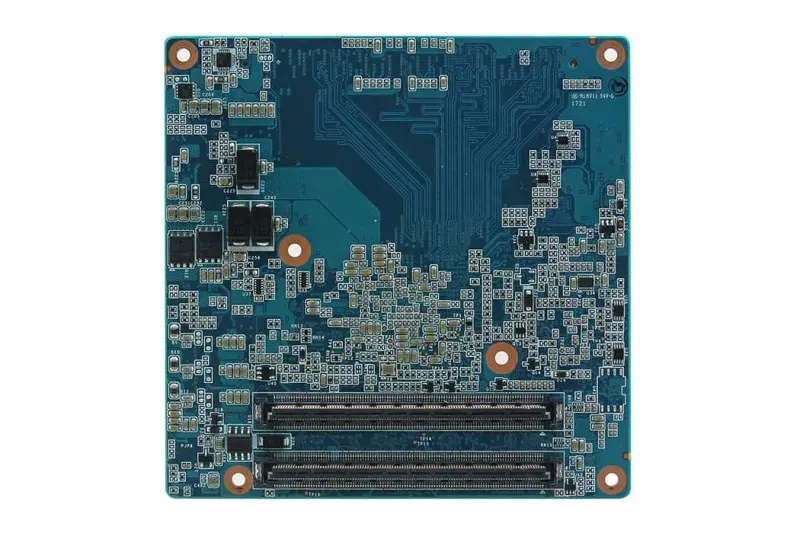

ESM-APLC, Image 1ESM-APLC, Image 2ESM-APLC, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • COM Express Type 6 Compact module (95 x 95 mm)
  • Intel Pentium N4200, Celeron N3350/J3455 (Apollo Lake)
  • 1 x 204-pin DDR3L 1600/1333MHz SO-DIMM up to 8GB (non-ECC)
  • Optional onboard TPM 2.0, optional eMMC 5.0 up to 64GB
  • Intel SoC graphics: dual-channel LVDS, DP, HDMI, VGA, eDP (optional)
  • Configurable PCIe Gen2 (4x x1 / 1x x4)
  • Intel I210AT Gigabit Ethernet, 4x USB3.0 + 8x USB2.0, 2x SATA III
  • Standard 0~60°C operating
  • Windows 10 Enterprise / Linux; CE, FCC, RoHS

Product Description

The Avalue ESM-APLC is a COM Express Type 6 Compact module (95 x 95 mm) built on Intel Pentium N4200, Celeron N3350 and Celeron J3455 (Apollo Lake) processors, designed as a low-power, cost-effective compute core for long-lifecycle embedded and industrial designs.

With a DDR3L 1600/1333MHz SO-DIMM (up to 8GB), optional onboard TPM 2.0, and optional eMMC up to 64GB, it delivers efficient x86 performance through the standardised Type 6 pin-out.

It offers Intel SoC integrated graphics with dual-channel LVDS, DP, HDMI and VGA (up to 4096x2160@60Hz on DP), 4x USB3.0 + 8x USB2.0, 2x SATA III, Intel I210AT GbE, configurable PCIe Gen2, and a wide +9~19V input over 0~60°C, running Windows 10 Enterprise or Linux.

Technical Specifications

Processor

Intel® Pentium® N4200 4C 1.1GHz / 6W

Intel® Celeron® N3350 2C 1.1 GHz / 6W

Intel® Celeron® J3455 4C 1.5 GHz / 10W

System Memory

1 x 204-Pin DDR3L 1600&1333MHz SO-DIMM, Supports Up to 8GB (Non-ECC)

I/O Chipset

EC iTE IT8528VG

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

H/W Status Monitor

Monitoring System Temperature

Voltage and FAN Status with Auto Throttling Control

TPM

Onboard TPM 2.0 Optional

Expansion

4 x PCIe x1 or 1 x PCIe x4 while Removing Ethernet, Compliant to PCIe (Gen2), 3 Ports Optional

Storage

eMMC 5.0 Up to 64GB (Optional)

Graphic Chipset

Intel® SoC Integrated Graphics

Spec. & Resolution

VGA: Max. Resolution 1920x1200@60Hz

LVDS: Max. Resolution 1920x1200@60Hz

HDMI: Max. Resolution 3840x2160@30Hz

DP: Max. Resolution 4096x2160@60Hz

Multiple Display

Support Dual Channel18/24 bit LVDS, Display Port, HDMI, VGA, eDP (Optional)

LVDS

CH7511B(eDP to LVDS)

DDI

HDMI

DP

DisplayPort

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx Gigabit Ethernet Compatible

OS

Windows 10 Enterprise (64-bit)

Linux (Kernel 4.5) above

Certification Information

CE, FCC Class, RoHS Compliant

USB

4 x USB 3.0

8 x USB 2.0

COM Port

2 x UART (RX/TX Only)

SATA

2 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x SMBus

1 x LPC

1 x I2C

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs(0.2Kg)

Power Requirement

+9V ~ +19V

Power Mode

AT/ATX

Dimension (L x W)

3.74” x 3.74” (95 x 95 mm)

Ordering Information

ESM-APLC-N42-A3R | Intel® Pentium® SoC Processor N4200 Type6 COMe Compact Module

ESM-APLC-N33-A3R | Intel® Celeron® SoC Processor N3350 Type6 COMe Compact Module

ESM-APLC-J34-A3R | Intel® Celeron® SoC Processor J3455 Type6 COMe Compact Module

EEV-EX14-B1R | mATX Ev. Board for COMe Type 6 A2

ACC-ESMAPLC-SK-1R | Heatsink for ESM-APLC W/O FAN H=22.5mm

ACC-ESMAPLC-SD-1R | Heatspreader for ESM-APLC W/O FAN H=8.0mm

What is ESM-APLC?

The ESM-APLC is a computer-on-module manufactured by Avalue, designed specifically for com-express-type-6 applications. The Avalue ESM-APLC is a COM Express Type 6 Compact module (95 x 95 mm) built on Intel Pentium N4200, Celeron N3350 and Celeron J3455 (Apollo Lake) processors, designed as a low-power, cost-effective compute core for long-lifecycle embedded and industrial designs. With a DDR3L 1600/1333MHz SO-DIMM (up to 8GB), optional onboard TPM 2.0, and optional eMMC up to 64GB, it delivers efficient x86 performance through the standardised Type 6 pin-out. It offers Intel SoC integrated graphics with dual-channel LVDS, DP, HDMI and VGA (up to 4096x2160@60Hz on DP), 4x USB3.0 + 8x USB2.0, 2x SATA III, Intel I210AT GbE, configurable PCIe Gen2, and a wide +9~19V input over 0~60°C, running Windows 10 Enterprise or Linux.

Key Features & Benefits

  • COM Express Type 6 Compact module (95 x 95 mm)
  • Intel Pentium N4200, Celeron N3350/J3455 (Apollo Lake)
  • 1 x 204-pin DDR3L 1600/1333MHz SO-DIMM up to 8GB (non-ECC)
  • Optional onboard TPM 2.0, optional eMMC 5.0 up to 64GB
  • Intel SoC graphics: dual-channel LVDS, DP, HDMI, VGA, eDP (optional)
  • Configurable PCIe Gen2 (4x x1 / 1x x4)
  • Intel I210AT Gigabit Ethernet, 4x USB3.0 + 8x USB2.0, 2x SATA III
  • Standard 0~60°C operating
  • Windows 10 Enterprise / Linux; CE, FCC, RoHS

Applications & Use Cases

The ESM-APLC is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • PLC integration and programmable logic control
  • Industrial automation and control
  • Manufacturing process monitoring
