ESM-RPLC

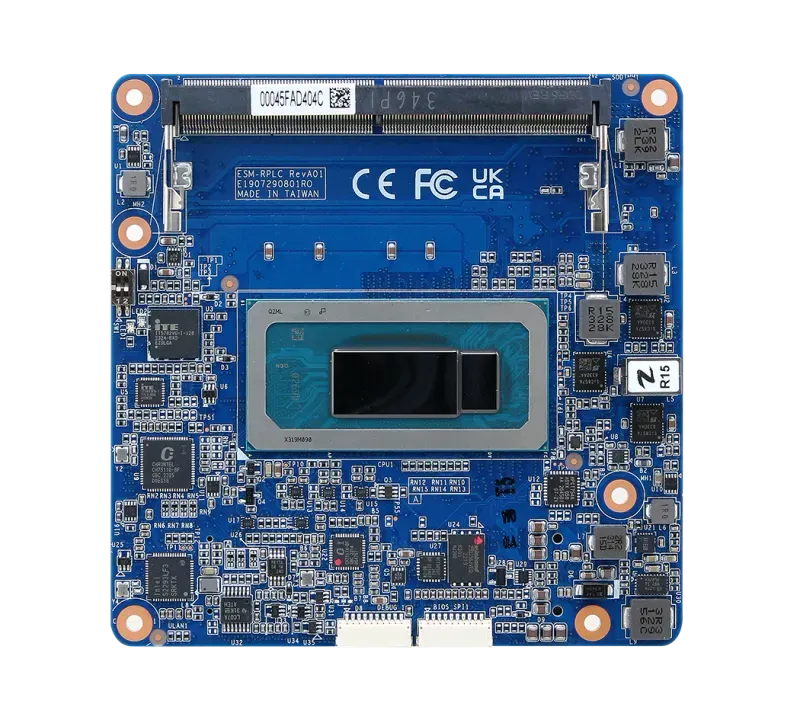

ESM-RPLC FrontESM-RPLC FrontESM-RPLC Front

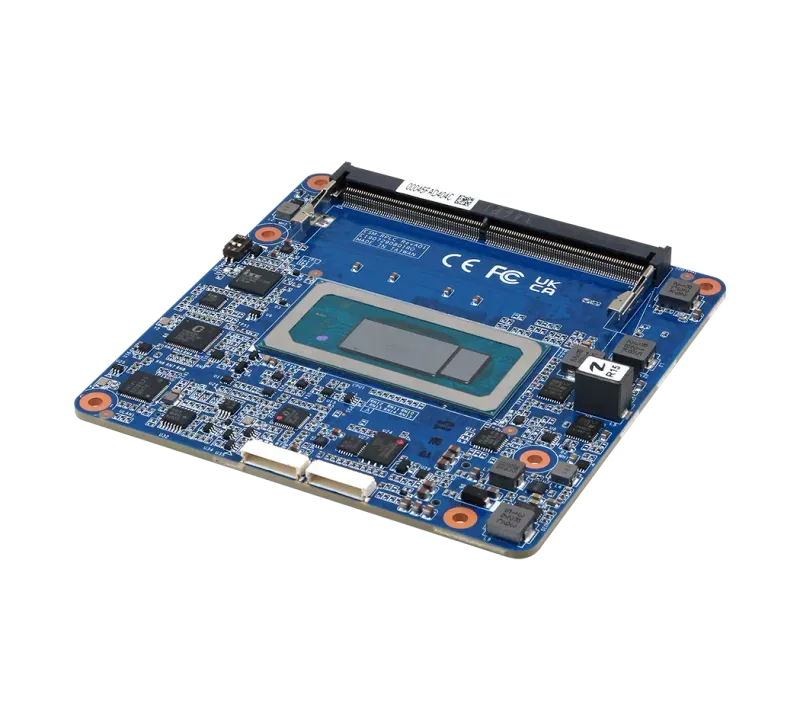

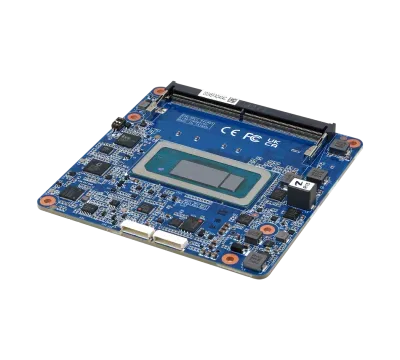

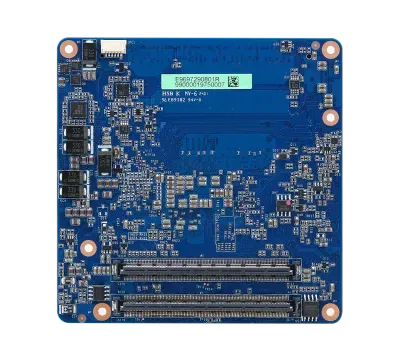

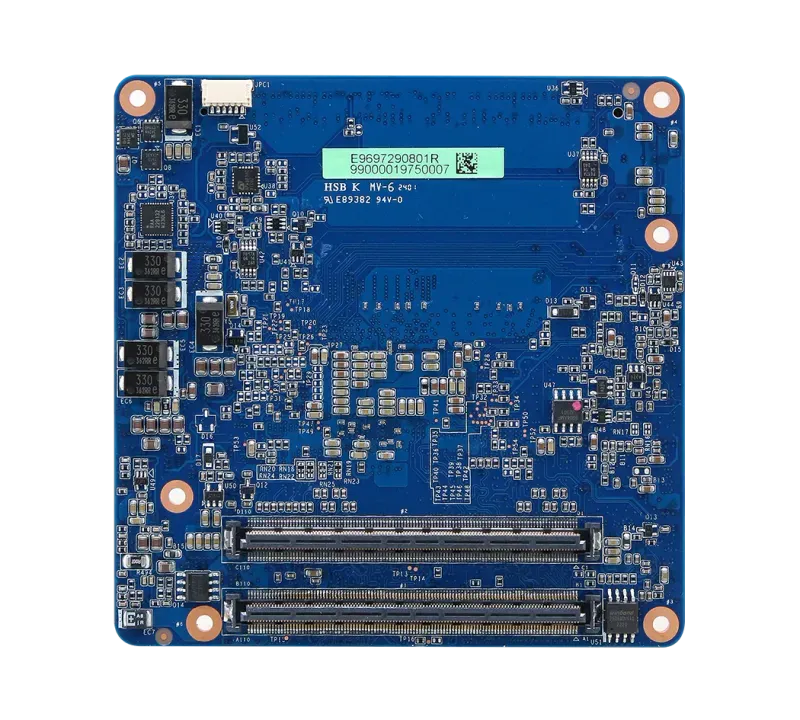

ESM-RPLC, Image 1ESM-RPLC, Image 2ESM-RPLC, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • COM Express Type 6 Compact module (95 x 95 mm)
  • 13th Gen Intel P-Series (28W) / U-Series (15W) embedded processors
  • 1 x 262-pin DDR5 4800MT/s SO-DIMM up to 32GB
  • Onboard Nuvoton NPCT754 TPM 2.0
  • Intel Iris Xe / UHD Graphics, quad display up to 4K (3x DDI + eDP)
  • PCIe Gen4 (2x x4) + Gen3 (5x x1), optional USB4
  • Intel i226LM/IT 2.5GbE, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III
  • Standard 0~60°C / extended -40~75°C operating
  • Windows 11 64-bit / Linux; CE, FCC, RoHS

Product Description

The Avalue ESM-RPLC is a COM Express Type 6 Compact module (95 x 95 mm) built on 13th Gen Intel P-Series (28W) and U-Series (15W) embedded/industrial processors, designed as a performant, upgrade-ready compute core for embedded and industrial designs.

With a DDR5 4800MT/s SO-DIMM (up to 32GB), onboard Nuvoton TPM 2.0, and PCIe Gen4/Gen3 expansion, it delivers strong x86 performance through the standardised Type 6 pin-out.

It offers Intel Iris Xe / UHD graphics with quad display (3x DDI + eDP up to 4K), optional USB4, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel i226LM/IT 2.5GbE, and a wide +9~19V input with an extended -40~75°C option, running Windows 11 64-bit or Linux.

Technical Specifications

Processor

13th Gen. Intel® P-Series Embedded / Industrial (28W)

U-Series Embedded / Industrial (15W)

System Memory

1 x 262-Pin DDR5 4800MT/s SO-DIMM Up to 32GB

I/O Chipset

EC iTE IT5782

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

H/W Status Monitor

Monitoring System Temperature

Voltage and FAN Status with Auto Throttling Control

TPM

Onboard nuvoTon_NPCT754AADYX TPM 2.0

Expansion

2 x PCIe x4 (Gen4), Only for SSD, (From CPU)

Default: 5 x PCIe x1 (Gen3), 2 x SATA (2 Lanes Shares with SATA)

Graphic Chipset

Intel® Iris® Xe Graphics on i7/i5 Processor

Intel® UHD Graphics on i3/Celeron® Processor

Intel® Gfx Up to 96 EU

Spec. & Resolution

3 x DDI, VGA, eDP/LVDS (BOM Optional)

VGA Supported by Build Option Via DP-to-VGA IC, Max. Resolution 1920x1200@60Hz

VDS Single/Dual Channel 18/24-bit LVDS from eDP-to-LVDS IC, Max. Resolution 1920x1200@60Hz in Dual Mode or

eDP Build Option in Place of LVDS, 4 lanes, eDP 1.4b (by BOM)

USB4 Max. 2 x USB4 in Place of DDI 1/2, Supports DP 1.4a by DP Alternative Mode

DDI3 for Avalue EX-EX26 Carrier HDMI 2.1 or DP 1.4a

Select by BIOS, Support Feature Depend on Carrier Board.

Multiple Display

Four Display Support, Up to 4K (3DDI+eDP)

LVDS

CH7511B(eDP to LVDS)

DDI

3 x DDI, VGA, eDP/LVDS (BOM Optional)

HDMI/DP(Default)

VGA Supported by Build Option Via DP-to-VGA IC (In Place of DDI 3)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I226LM/IT

Ethernet Interface

10/100/1000/2500 Base-Tx GbE Compatible

OS

Windows 11 64bit, Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

2 x USB 4 by TCP Ports (Optional by BIOS)

4 x USB 3.2 Gen2

8 x USB 2.0

COM Port

2 x UART (RX/TX Only)

SATA

2 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x SMBus

1 x LPC (Via ESPI-to-LPC Bridge IC)

1 x GP_SPI(TBC)

1 x I2C

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Extend: -40°C ~ 75°C (-40°F ~ 167°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.1631lbs (0.074Kg)

Power Requirement

+9V ~ +19V

Power Mode

AT/ATX

Dimension (L x W)

3.74” x 3.74” (95 x 95 mm)

Ordering Information

ESM-RPLC-S65-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i7-1365UE CPU

ESM-RPLC-S35-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i5-1335UE CPU

ESM-RPLC-S15-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i3-1315UE CPU

ESM-RPLC-S40-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -i5-1340PE CPU

ESM-RPLC-300-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board -U300E CPU

ESM-RPLC-W65-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1365URE CPU

ESM-RPLC-W45-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board – i5-1345URE CPU

ESM-RPLC-W15-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board – i3-1315URE CPU

ESM-RPLC-W70-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board - i7-1370PRE CPU

ESM-RPLC-W50-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board – i5-1350PRE CPU

ESM-RPLC-W20-A1R | Intel® Raptor Lake-P SoC COM Express Module Type 6 on board – i3-1320PRE CPU

What is ESM-RPLC?

The ESM-RPLC is a computer-on-module manufactured by Avalue, designed specifically for com-express-type-6 applications. The Avalue ESM-RPLC is a COM Express Type 6 Compact module (95 x 95 mm) built on 13th Gen Intel P-Series (28W) and U-Series (15W) embedded/industrial processors, designed as a performant, upgrade-ready compute core for embedded and industrial designs. With a DDR5 4800MT/s SO-DIMM (up to 32GB), onboard Nuvoton TPM 2.0, and PCIe Gen4/Gen3 expansion, it delivers strong x86 performance through the standardised Type 6 pin-out. It offers Intel Iris Xe / UHD graphics with quad display (3x DDI + eDP up to 4K), optional USB4, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel i226LM/IT 2.5GbE, and a wide +9~19V input with an extended -40~75°C option, running Windows 11 64-bit or Linux.

Key Features & Benefits

  • COM Express Type 6 Compact module (95 x 95 mm)
  • 13th Gen Intel P-Series (28W) / U-Series (15W) embedded processors
  • 1 x 262-pin DDR5 4800MT/s SO-DIMM up to 32GB
  • Onboard Nuvoton NPCT754 TPM 2.0
  • Intel Iris Xe / UHD Graphics, quad display up to 4K (3x DDI + eDP)
  • PCIe Gen4 (2x x4) + Gen3 (5x x1), optional USB4
  • Intel i226LM/IT 2.5GbE, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III
  • Standard 0~60°C / extended -40~75°C operating
  • Windows 11 64-bit / Linux; CE, FCC, RoHS

Applications & Use Cases

The ESM-RPLC is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • PLC integration and programmable logic control
  • Visual monitoring and data display systems
  • Industrial automation and control
  • Manufacturing process monitoring
