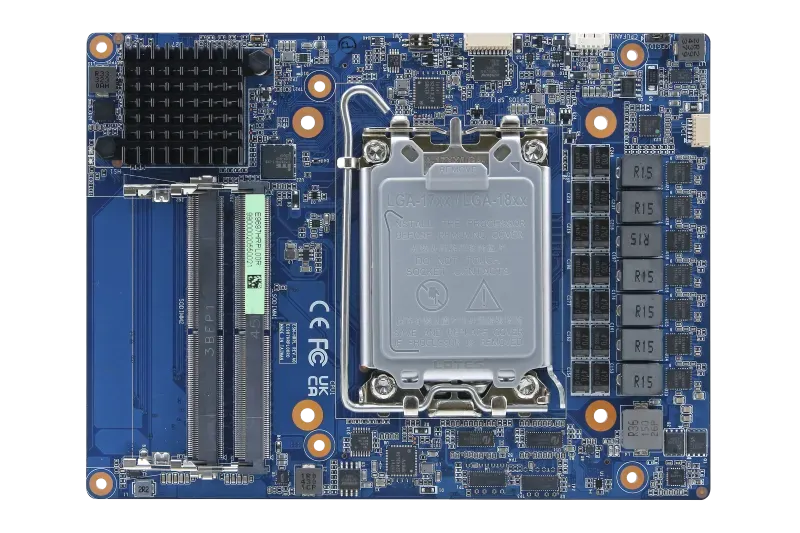

ESM-HRPL

Series: ESM

Manufactured byAvalue

The Avalue ESM-HRPL is a COM-HPC Client Size C module built on Intel 12/13/14th Generation and Series 2 Refresh Core i9/i7/i5/i3 processors (LGA 1700, up to 65W) with the Intel R680E chipset, designed as a high-performance, upgrade-ready compute core for edge-AI, medical imaging, and industrial servers. With four DDR5 SO-DIMM sockets (up to 128GB, 3600MT/s, optional ECC), PCIe Gen5/Gen4 lanes, dual Intel i226 2.5GbE, quadruple independent displays, USB 3.2 Gen2x2, SATA III, and optional TPM 2.0, the ESM-HRPL delivers desktop/server-class performance through the standardised COM-HPC Client pin-out for long-lifecycle designs.

Key Features

COM-HPC Client Size C module (160 x 120 mm)
Intel 12/13/14th & Series 2 Gen Refresh Core i9/i7/i5/i3 (LGA 1700, up to 65W)
Intel R680E chipset
4 x 262-pin DDR5 SO-DIMM up to 128GB, 3600MT/s, optional ECC
PCIe x16 Gen5 + Gen4/Gen3 lanes (incl. BMC PCIe x1)
2 x Intel i226-LM 2.5GbE
3 x DDI (DP1.4a/HDMI2.1b) + 1 x eDP, quadruple independent displays
4 x USB3.2 Gen2x2, 8 x USB2.0, 2 x SATA III
Optional Nuvoton NPCT754 TPM 2.0; Windows 11 LTSC / Linux

Technical Specifications

System Information

Processor	Intel 12/13/14th & Series 2 Gen Refresh Core Processors, LGA 1700, up to 65W Max
Platform Controller Hub	Intel R680E chipset
System Memory	4 x 262-Pin DDR5 SO-DIMM up to 128GB, 3600MT/s, optional ECC (CPU depending)
I/O Chipset	EC iTE IT5782
Watchdog Timer	H/W Reset, 1Sec ~ 65535Sec, 1Sec/Step
BIOS	AMI uEFI BIOS, 256 Mbit SPI Flash ROM
H/W Status Monitor	Monitoring system temperature, voltage and FAN status with auto throttling control
TPM	Optional NuvoTon NPCT754AADYX TPM 2.0

Expansion

Expansion	1 x PCIe x16 Gen5, 1 x PEG x4 Gen4, 3 x PCIe x4 Gen4, 2 x PCIe x4 Gen3 (from PCH), 1 x PCIe x1 Gen3 for BMC (owned by carrier board)

Display

Graphic Chipset	Intel UHD Graphics 770 up to 32EUs
Spec. & Resolution	3 x DDI ports support configurable DP1.4a or HDMI2.1b, 1 x eDP1.4b
Multiple Display	Quadruple Independent Displays

Ethernet

LAN Chipset	2 x Intel i226LM 2.5G Gigabit Ethernet Controller

Software Support

OS	Windows 11 LTSC, Linux

I/O

USB	4 ports support USB3.2 Gen2x2, 8 ports support USB2.0
SMBus	1 port supports SMBus
SATA	2 ports support SATAIII
DIO	12 ports support GPIO
Other	1 x Smart FAN on COM-HPC module, 1 port Smart FAN for carrier, 1 port each Audio, I2C, SPI
UART	2 x UART (2 wire)

Mechanical & Environmental

Operating Temp.	With CPU cooler, supports 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow
Storage Temp.	-20°C ~ 75°C (-4°F ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (L x W)	160 x 120mm (COM-HPC Client size C)

Ordering Information

Ordering Information	ESM-HRPL-R68-A1R
