What is the ESM-HRPL?

It is a COM-HPC Client Size C module (160 x 120 mm) built on Intel 12/13/14th Gen and Series 2 Refresh Core i9/i7/i5/i3 processors with the Intel R680E chipset, for high-performance, upgrade-ready embedded designs.

COM-HPC is the PICMG high-performance Computer-on-Module standard (successor to COM Express) for compute-intensive applications, separating the CPU subsystem from a custom carrier board.

Which processors does the ESM-HRPL support?

Intel 12th/13th/14th Generation and Series 2 Gen Refresh Core i9/i7/i5/i3 on LGA 1700, up to 65W maximum.

How much memory does the ESM-HRPL support?

Four 262-pin DDR5 SO-DIMM sockets up to 128GB at 3600MT/s, with optional ECC depending on the CPU.

What PCIe expansion does the ESM-HRPL provide?

1x PCIe x16 Gen5, 1x PEG x4 Gen4, 3x PCIe x4 Gen4, 2x PCIe x4 Gen3 (from PCH), and 1x PCIe x1 Gen3 for BMC on the carrier.

What networking does the ESM-HRPL offer?

Two Intel i226-LM 2.5 Gigabit Ethernet controllers.

How many displays can the ESM-HRPL drive?

Up to four independent displays via 3x DDI (configurable DP1.4a or HDMI2.1b) plus 1x eDP1.4b, with Intel UHD Graphics 770.

What storage and USB does the ESM-HRPL provide?

2x SATA III and 4x USB 3.2 Gen2x2 plus 8x USB 2.0.

Does the ESM-HRPL include hardware security?

Optionally — a Nuvoton NPCT754 TPM 2.0 is available for hardware key storage and platform integrity.

What is the ESM-HRPL's operating temperature range?

With a CPU cooler it supports 0°C ~ 60°C operating (with 0.5m/s airflow) and -20°C ~ 75°C storage.

What is the form factor of the ESM-HRPL?

COM-HPC Client Size C, 160 x 120 mm.

Why use a COM-HPC module instead of a full custom board?

It isolates the high-performance CPU subsystem onto a standardised module, so the carrier can be reused and the compute upgraded without redesigning the whole system — reducing risk and lifecycle cost.

What applications is the ESM-HRPL best suited for?

Edge-AI, medical imaging, industrial servers, and machine vision needing scalable, long-lifecycle high-performance x86 compute.

Avalue · Computer-on-Module

ESM-HRPL

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

COM-HPC Client Size C module (160 x 120 mm)
Intel 12/13/14th & Series 2 Gen Refresh Core i9/i7/i5/i3 (LGA 1700, up to 65W)
Intel R680E chipset
4 x 262-pin DDR5 SO-DIMM up to 128GB, 3600MT/s, optional ECC
PCIe x16 Gen5 + Gen4/Gen3 lanes (incl. BMC PCIe x1)
2 x Intel i226-LM 2.5GbE
3 x DDI (DP1.4a/HDMI2.1b) + 1 x eDP, quadruple independent displays
4 x USB3.2 Gen2x2, 8 x USB2.0, 2 x SATA III
Optional Nuvoton NPCT754 TPM 2.0; Windows 11 LTSC / Linux

Product Description

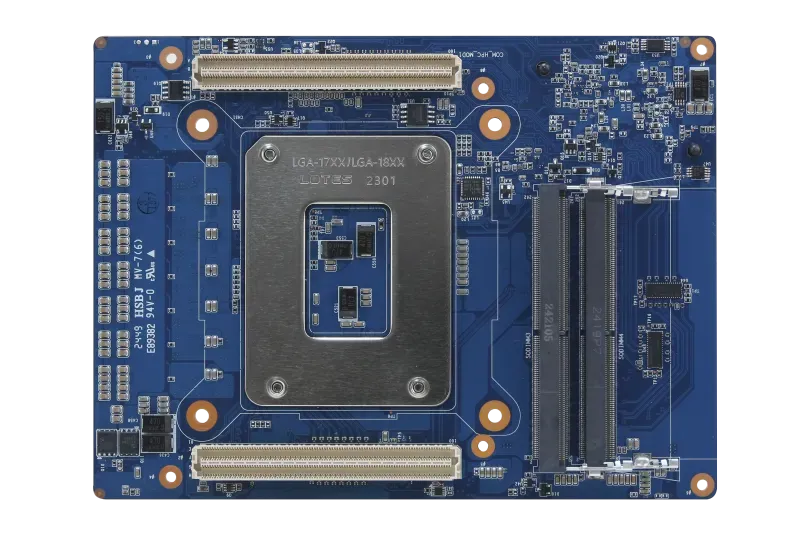

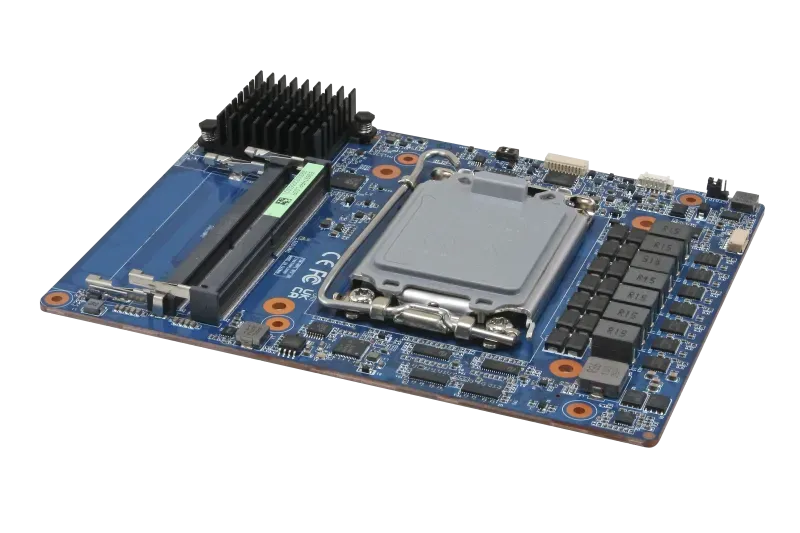

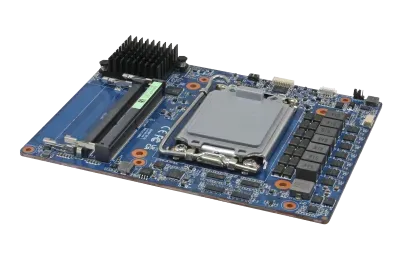

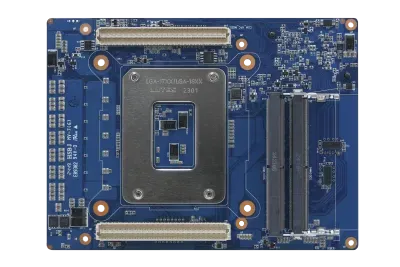

The Avalue ESM-HRPL is a COM-HPC Client Size C module built on Intel 12/13/14th Generation and Series 2 Refresh Core i9/i7/i5/i3 processors (LGA 1700, up to 65W) with the Intel R680E chipset, designed as a high-performance, upgrade-ready compute core for edge-AI, medical imaging, and industrial servers.

With four DDR5 SO-DIMM sockets (up to 128GB, 3600MT/s, optional ECC), PCIe Gen5/Gen4 lanes, dual Intel i226 2.5GbE, quadruple independent displays, USB 3.2 Gen2x2, SATA III, and optional TPM 2.0, the ESM-HRPL delivers desktop/server-class performance through the standardised COM-HPC Client pin-out for long-lifecycle designs.

Technical Specifications

Processor

Intel 12/13/14th & Series 2 Gen Refresh Core Processors, LGA 1700, up to 65W Max

Platform Controller Hub

Intel R680E chipset

System Memory

4 x 262-Pin DDR5 SO-DIMM up to 128GB, 3600MT/s, optional ECC (CPU depending)

I/O Chipset

EC iTE IT5782

Watchdog Timer

H/W Reset, 1Sec ~ 65535Sec, 1Sec/Step

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

H/W Status Monitor

Monitoring system temperature, voltage and FAN status with auto throttling control

TPM

Optional NuvoTon NPCT754AADYX TPM 2.0

Expansion

1 x PCIe x16 Gen5

1 x PEG x4 Gen4

3 x PCIe x4 Gen4

2 x PCIe x4 Gen3 (from PCH)

1 x PCIe x1 Gen3 for BMC (owned by carrier board)

Graphic Chipset

Intel UHD Graphics 770 up to 32EUs

Spec. & Resolution

3 x DDI ports support configurable DP1.4a or HDMI2.1b

1 x eDP1.4b

Multiple Display

Quadruple Independent Displays

LAN Chipset

2 x Intel i226LM 2.5G Gigabit Ethernet Controller

OS

Windows 11 LTSC

Linux

USB

4 ports support USB3.2 Gen2x2

8 ports support USB2.0

SMBus

1 port supports SMBus

SATA

2 ports support SATAIII

DIO

12 ports support GPIO

Other

1 x Smart FAN on COM-HPC module

1 port Smart FAN for carrier

1 port each Audio, I2C, SPI

UART

2 x UART (2 wire)

Operating Temp.

With CPU cooler, supports 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow

Storage Temp.

-20°C ~ 75°C (-4°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (L x W)

160 x 120mm (COM-HPC Client size C)

Ordering Information

ESM-HRPL-R68-A1R

What is ESM-HRPL?

The ESM-HRPL is a computer-on-module manufactured by Avalue, designed specifically for com-hpc applications. The Avalue ESM-HRPL is a COM-HPC Client Size C module built on Intel 12/13/14th Generation and Series 2 Refresh Core i9/i7/i5/i3 processors (LGA 1700, up to 65W) with the Intel R680E chipset, designed as a high-performance, upgrade-ready compute core for edge-AI, medical imaging, and industrial servers. With four DDR5 SO-DIMM sockets (up to 128GB, 3600MT/s, optional ECC), PCIe Gen5/Gen4 lanes, dual Intel i226 2.5GbE, quadruple independent displays, USB 3.2 Gen2x2, SATA III, and optional TPM 2.0, the ESM-HRPL delivers desktop/server-class performance through the standardised COM-HPC Client pin-out for long-lifecycle designs.

Key Features & Benefits

COM-HPC Client Size C module (160 x 120 mm)
Intel 12/13/14th & Series 2 Gen Refresh Core i9/i7/i5/i3 (LGA 1700, up to 65W)
Intel R680E chipset
4 x 262-pin DDR5 SO-DIMM up to 128GB, 3600MT/s, optional ECC
PCIe x16 Gen5 + Gen4/Gen3 lanes (incl. BMC PCIe x1)
2 x Intel i226-LM 2.5GbE
3 x DDI (DP1.4a/HDMI2.1b) + 1 x eDP, quadruple independent displays
4 x USB3.2 Gen2x2, 8 x USB2.0, 2 x SATA III
Optional Nuvoton NPCT754 TPM 2.0; Windows 11 LTSC / Linux

Applications & Use Cases

The ESM-HRPL is ideal for various industrial automation applications:

High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Visual monitoring and data display systems
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
