EEV-EX14

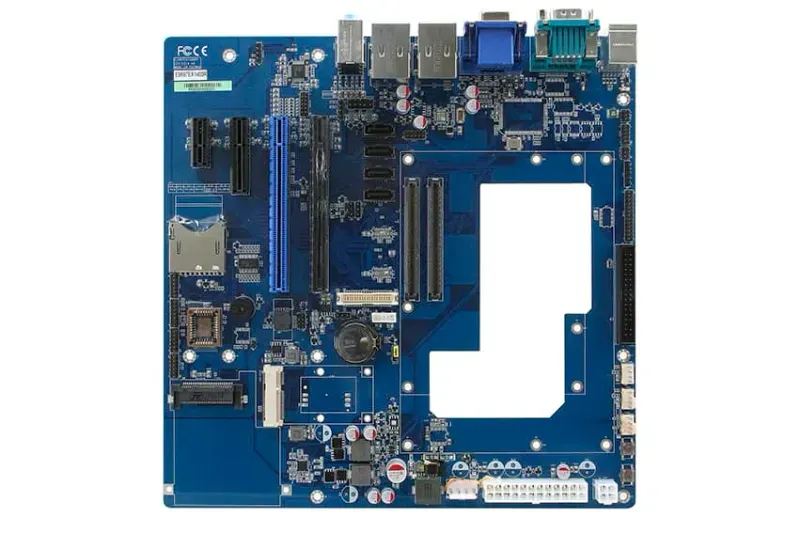

EEV-EX14 Front
EEV-EX14, Image 1
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Micro ATX COM Express Type 6 evaluation carrier board
  • PICMG COM Express Revision 2.1
  • 1 x PCIe x16 + 1 x PCIe x4 + 1 x PCIe x1
  • Express Card (optional), Mini-PCIe with SIM slot
  • DP / VGA / HDMI / LVDS / eDP outputs
  • 2 x Gigabit Ethernet (Realtek RTL8111E), Realtek ALC892 audio
  • 4 x USB 3.0 + 2 x USB 2.0, RS-232 + RS-232/422/485, 4 x SATA II
  • Legacy PS/2, LPT, floppy, IrDA, SDIO
  • 0~60°C operating; CE, FCC, RoHS

Product Description

The Avalue EEV-EX14 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 2.1, designed for prototyping and validating legacy and current Type 6 modules.

In a 243.84 x 243.84 mm footprint it exposes the module's full I/O, including legacy interfaces, for thorough development.

It provides PCIe x16/x4/x1, Express Card (optional) and Mini-PCIe with SIM, DP/VGA/HDMI/LVDS/eDP outputs, dual Gigabit Ethernet, Realtek ALC892 audio, 4x USB 3.0 + 2x USB 2.0, RS-232 and RS-232/422/485, 4x SATA II, and legacy PS/2, LPT, floppy and IrDA — a comprehensive Type 6 development platform.

Technical Specifications

Processor

Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 2.1

Expansion

1 x PCIe x16

1 x PCIe x4

1 x PCIe x1

1 x Express Card (Optional)

1 x Mini PCIe with SIM Card Slot

Spec. & Resolution

1 x DP

1 x VGA

1 x HDMI

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS

1 x eDP

Audio Codec

Realtek ALC892 HD Audio Decoding Controller

Audio Interface

Line-out. Mic-in, Lin-in

LAN Chipset

1 x Realtek RTL8111E Gigabit Ethernet

Ethernet Interface

2 x Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.0

2 x USB 2.0

COM Port

1 x RS232

1 x RS232/422/485

GPIO

1 x 8-bit GPIO

SATA

4 x SATA II

MIO

1 x PS2/ KB & MS

1 x SDIO

1 x IrDA

1 x LPT

1 x Floppy connector

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.91lbs (0.412kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

EEV-EX14-B1R (Type6 Rev 2.1), Micro ATX COM Express Type6 Carrier Board without SD card for ESM-BDW/ESM-QM87/ESM-QM87R, EEV-EX14-B2R (Type6 Rev 2.1), Micro ATX COM Express Type6 Carrier Board without Express Card/54 & SD card for ESM-BYT/ESM-BYT2/ESM-SKLH/ESM-SKLA/ESM-SKLU/ESM-KBLH/ESM-KBLA/ESM-KBLU/ESM-APLC

What is EEV-EX14?

The EEV-EX14 is a computer-on-module manufactured by Avalue, designed specifically for eval-carrier-board applications. The Avalue EEV-EX14 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 2.1, designed for prototyping and validating legacy and current Type 6 modules. In a 243.84 x 243.84 mm footprint it exposes the module's full I/O, including legacy interfaces, for thorough development. It provides PCIe x16/x4/x1, Express Card (optional) and Mini-PCIe with SIM, DP/VGA/HDMI/LVDS/eDP outputs, dual Gigabit Ethernet, Realtek ALC892 audio, 4x USB 3.0 + 2x USB 2.0, RS-232 and RS-232/422/485, 4x SATA II, and legacy PS/2, LPT, floppy and IrDA — a comprehensive Type 6 development platform.
