EEV-EX15

Series: EEV

Manufactured byAvalue

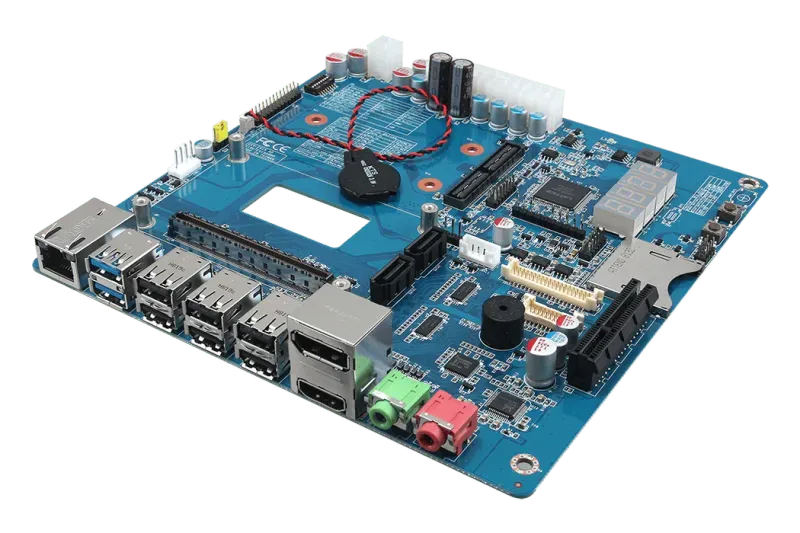

The Avalue EEV-EX15 is a Mini-ITX evaluation carrier board for COM Express Type 10 modules, designed for prototyping and validating compact Type 10 compute modules. In a 170 x 170 mm Mini-ITX footprint it exposes the module's I/O and ships with two expansion boards for thorough development. It provides a PCIe x4 slot, DP/HDMI/LVDS/eDP outputs, Gigabit Ethernet, Realtek ALC888S audio, 2x USB 3.1 + 6x USB 2.0, 2x SATA II, 8-bit GPIO, an SD card slot and an IET connector — a compact Type 10 development platform.

Key Features

Mini-ITX COM Express Type 10 evaluation carrier board
1 x PCIe x4 slot
DP / HDMI / LVDS / eDP outputs
1 x Gigabit Ethernet, Realtek ALC888S audio
2 x USB 3.1 + 6 x USB 2.0, 2 x SATA II
8-bit GPIO, SD card slot, IET connector (BOM optional)
Ships with 2 expansion boards
0~60°C operating
CE, FCC, RoHS

Technical Specifications

System Information

Processor	Mini ITX COM Express Type 10 Carrier Board

Expansion

Expansion	1 x PCIe x4

Display

Spec. & Resolution	1 x DP, 1 x HDMI
Multiple Display	Depends on the COMe module
LVDS	1 x LVDS, 1 x eDP

Audio

Audio Codec	Realtek ALC888S HD Audio Decoding Controller
Audio Interface	Line-out. Mic-in

Ethernet

Ethernet Interface	1 x Gigabit Ethernet Connector

Software Support

OS	According to COMe Module Solution

Certification

Certification Information	CE, FCC, RoHS Compliant

I/O

USB	2 x USB 3.1, 6 x USB 2.0
GPIO	1 x 8-bit GPIO
SATA	2 x SATA II
MIO	1 x SD Card Slot, 1 x IET Connector (BOM optional), 1 x Multi-function Pin header

Mechanical & Environmental

Operating Temp.	0 ~ 60°C (32 ~ 140°F)
Storage Temp.	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.46lbs (0.21kg)
Power Requirement	+12V/+5V/5VSB/+3.3V/-12V
Dimension (L x W)	6.7" x 6.7" (170mm x 170mm)

Ordering Information

Ordering Information	EEV-EX15-B1R \| Mini ITX Ev. Board for COMe Type 10 A1 (with 2 expansion boards)
