Avalue · Computer-on-Module

EEV-EX15

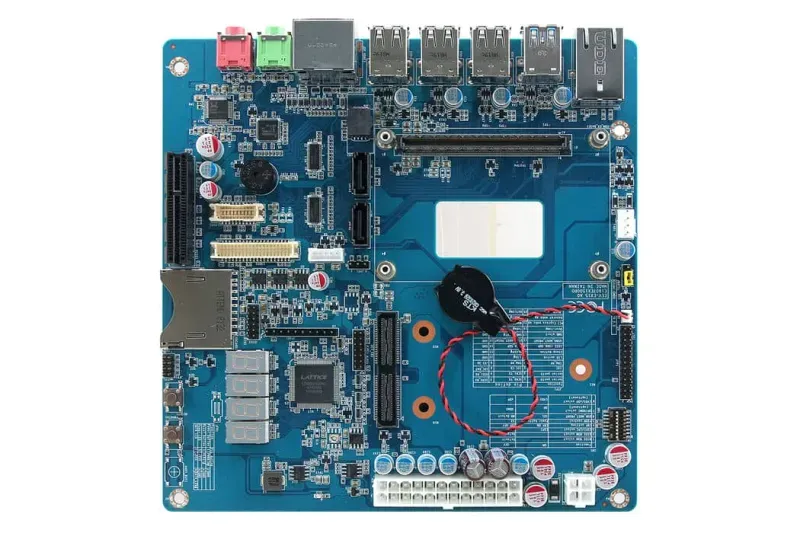

EEV-EX15 FrontEEV-EX15 FrontEEV-EX15 Front
EEV-EX15, Image 1EEV-EX15, Image 2EEV-EX15, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Mini-ITX COM Express Type 10 evaluation carrier board
  • 1 x PCIe x4 slot
  • DP / HDMI / LVDS / eDP outputs
  • 1 x Gigabit Ethernet, Realtek ALC888S audio
  • 2 x USB 3.1 + 6 x USB 2.0, 2 x SATA II
  • 8-bit GPIO, SD card slot, IET connector (BOM optional)
  • Ships with 2 expansion boards
  • 0~60°C operating
  • CE, FCC, RoHS

Product Description

The Avalue EEV-EX15 is a Mini-ITX evaluation carrier board for COM Express Type 10 modules, designed for prototyping and validating compact Type 10 compute modules.

In a 170 x 170 mm Mini-ITX footprint it exposes the module's I/O and ships with two expansion boards for thorough development.

It provides a PCIe x4 slot, DP/HDMI/LVDS/eDP outputs, Gigabit Ethernet, Realtek ALC888S audio, 2x USB 3.1 + 6x USB 2.0, 2x SATA II, 8-bit GPIO, an SD card slot and an IET connector — a compact Type 10 development platform.

Technical Specifications

Processor

Mini ITX COM Express Type 10 Carrier Board

Expansion

1 x PCIe x4

Spec. & Resolution

1 x DP

1 x HDMI

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS

1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out. Mic-in

Ethernet Interface

1 x Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB 3.1

6 x USB 2.0

GPIO

1 x 8-bit GPIO

SATA

2 x SATA II

MIO

1 x SD Card Slot

1 x IET Connector (BOM optional)

1 x Multi-function Pin header

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.46lbs (0.21kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EEV-EX15-B1R | Mini ITX Ev. Board for COMe Type 10 A1 (with 2 expansion boards)

What is EEV-EX15?

The EEV-EX15 is a computer-on-module manufactured by Avalue, designed specifically for eval-carrier-board applications. The Avalue EEV-EX15 is a Mini-ITX evaluation carrier board for COM Express Type 10 modules, designed for prototyping and validating compact Type 10 compute modules. In a 170 x 170 mm Mini-ITX footprint it exposes the module's I/O and ships with two expansion boards for thorough development. It provides a PCIe x4 slot, DP/HDMI/LVDS/eDP outputs, Gigabit Ethernet, Realtek ALC888S audio, 2x USB 3.1 + 6x USB 2.0, 2x SATA II, 8-bit GPIO, an SD card slot and an IET connector — a compact Type 10 development platform.

Key Features & Benefits

  • Mini-ITX COM Express Type 10 evaluation carrier board
  • 1 x PCIe x4 slot
  • DP / HDMI / LVDS / eDP outputs
  • 1 x Gigabit Ethernet, Realtek ALC888S audio
  • 2 x USB 3.1 + 6 x USB 2.0, 2 x SATA II
  • 8-bit GPIO, SD card slot, IET connector (BOM optional)
  • Ships with 2 expansion boards
  • 0~60°C operating
  • CE, FCC, RoHS

Applications & Use Cases

The EEV-EX15 is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • Prototyping and validating compact type 10 compute modules
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
