EEV-EX16-A1

Series: EEV

Manufactured byAvalue

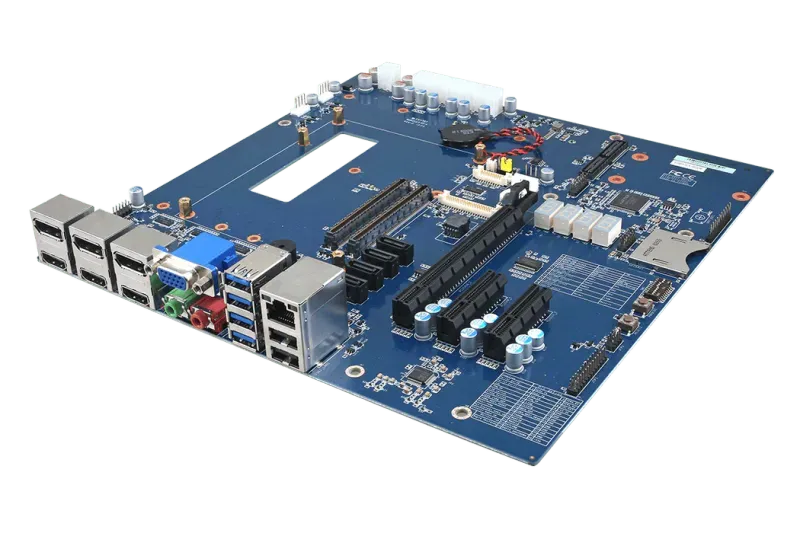

The Avalue EEV-EX16-A1 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 3.0, designed for prototyping and validating x86 and ARM Type 6 modules (e.g. ESM-ZXE). In a 243.84 x 243.84 mm footprint it exposes the module's full I/O for fast development. It provides PCIe x16 and 2x PCIe x4 slots, triple DP / triple HDMI / VGA / LVDS / eDP outputs, Gigabit Ethernet, Realtek ALC892 (x86) or WM8962 (ARM) audio, 4x USB 3.1 + 4x USB 2.0, 4x SATA III, 8-bit GPIO, LPC and SD card — a flexible Type 6 development platform.

Key Features

Micro ATX COM Express Type 6 evaluation carrier board
PICMG COM Express Revision 3.0
Supports x86 and ARM Type 6 modules (e.g. ESM-ZXE)
1 x PCIe x16 + 2 x PCIe x4
3 x DP / 3 x HDMI / VGA / LVDS / eDP outputs
Gigabit Ethernet, Realtek ALC892 (x86) / WM8962 (ARM) audio
4 x USB 3.1 (Gen1) + 4 x USB 2.0, 4 x SATA III
8-bit GPIO, LPC, SD card slot, IET connector (BOM optional)
0~60°C operating; CE, FCC, RoHS

Technical Specifications

System Information

Processor	Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.0

Expansion

Expansion	1 x PCIe x16, 2 x PCIe x4

Display

Spec. & Resolution	3 x DP, 3 x HDMI, 1 x VGA
Multiple Display	Depends on the COMe module
LVDS	1 x LVDS, 1 x eDP

Audio

Audio Codec	X86 Platform Realtek ALC892 HD Audio Decoding Controller, ARM Platform WM8962
Audio Interface	Line-out. Mic-in

Ethernet

Ethernet Interface	1 x Gigabit Ethernet Connector

Software Support

OS	According to COMe Module Solution

Certification

Certification Information	CE, FCC, RoHS Compliant

I/O

USB	4 x USB 3.1 (Gen 1/5 Gbps), 4 x USB 2.0
GPIO	1 x 8-bit GPIO
SATA	4 x SATA III
MIO	1 x LPC, 1 x SD Card Slot, 1 x IET Connector (BOM optional), 1 x Multi-function Select (SW1)

Mechanical & Environmental

Operating Temp.	0 ~ 60°C (32 ~ 140°F)
Storage Temp.	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.91lbs (0.412kg)
Power Requirement	+12V/+5V/5VSB/+3.3V/-12V
Dimension (L x W)	9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

Ordering Information	EEV-EX16-A1R \| Type 6 Micro ATX Eval. Board for ESM-ZXE A1
