EEV-EX16-A1

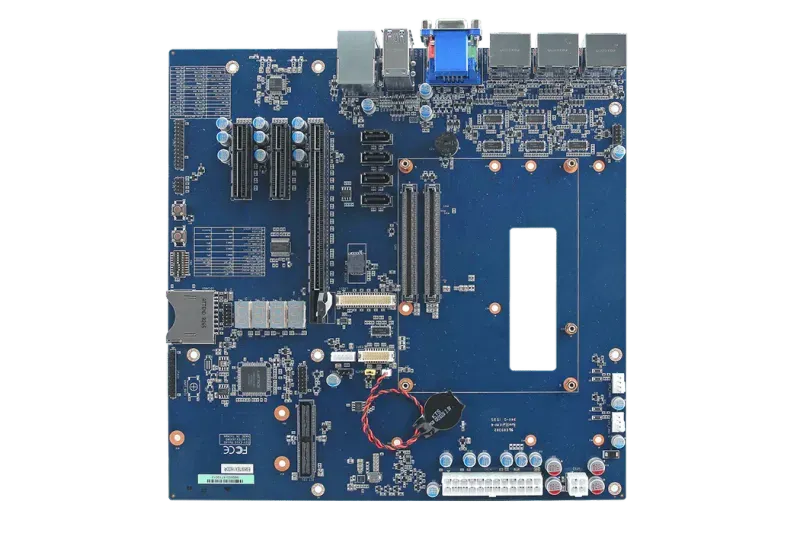

EEV-EX16-A1 FrontEEV-EX16-A1 FrontEEV-EX16-A1 Front

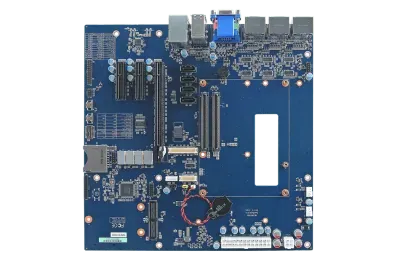

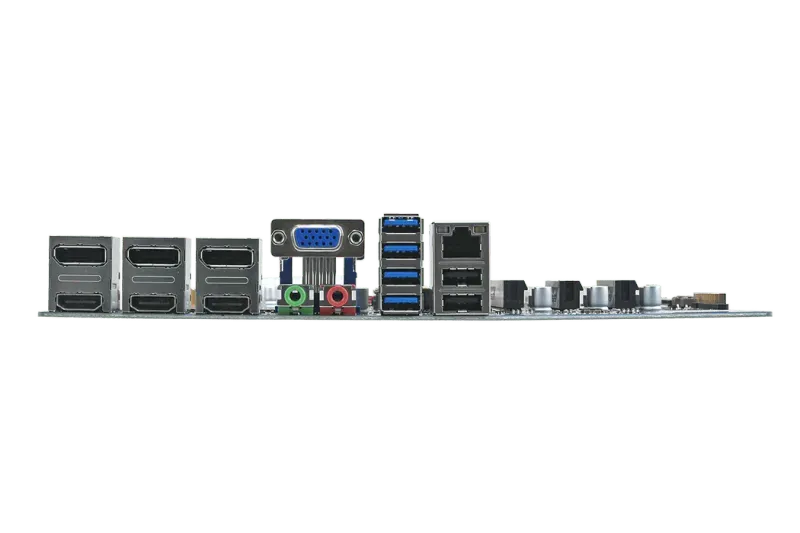

EEV-EX16-A1, Image 1EEV-EX16-A1, Image 2EEV-EX16-A1, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Micro ATX COM Express Type 6 evaluation carrier board
  • PICMG COM Express Revision 3.0
  • Supports x86 and ARM Type 6 modules (e.g. ESM-ZXE)
  • 1 x PCIe x16 + 2 x PCIe x4
  • 3 x DP / 3 x HDMI / VGA / LVDS / eDP outputs
  • Gigabit Ethernet, Realtek ALC892 (x86) / WM8962 (ARM) audio
  • 4 x USB 3.1 (Gen1) + 4 x USB 2.0, 4 x SATA III
  • 8-bit GPIO, LPC, SD card slot, IET connector (BOM optional)
  • 0~60°C operating; CE, FCC, RoHS

Product Description

The Avalue EEV-EX16-A1 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 3.0, designed for prototyping and validating x86 and ARM Type 6 modules (e.g. ESM-ZXE).

In a 243.84 x 243.84 mm footprint it exposes the module's full I/O for fast development.

It provides PCIe x16 and 2x PCIe x4 slots, triple DP / triple HDMI / VGA / LVDS / eDP outputs, Gigabit Ethernet, Realtek ALC892 (x86) or WM8962 (ARM) audio, 4x USB 3.1 + 4x USB 2.0, 4x SATA III, 8-bit GPIO, LPC and SD card — a flexible Type 6 development platform.

Technical Specifications

Processor

Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.0

Expansion

1 x PCIe x16

2 x PCIe x4

Spec. & Resolution

3 x DP

3 x HDMI

1 x VGA

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS

1 x eDP

Audio Codec

X86 Platform Realtek ALC892 HD Audio Decoding Controller

ARM Platform WM8962

Audio Interface

Line-out. Mic-in

Ethernet Interface

1 x Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.1 (Gen 1/5 Gbps)

4 x USB 2.0

GPIO

1 x 8-bit GPIO

SATA

4 x SATA III

MIO

1 x LPC

1 x SD Card Slot

1 x IET Connector (BOM optional)

1 x Multi-function Select (SW1)

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.91lbs (0.412kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

EEV-EX16-A1R | Type 6 Micro ATX Eval. Board for ESM-ZXE A1
