EEV-EX16-B1

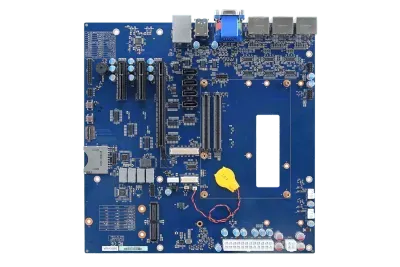

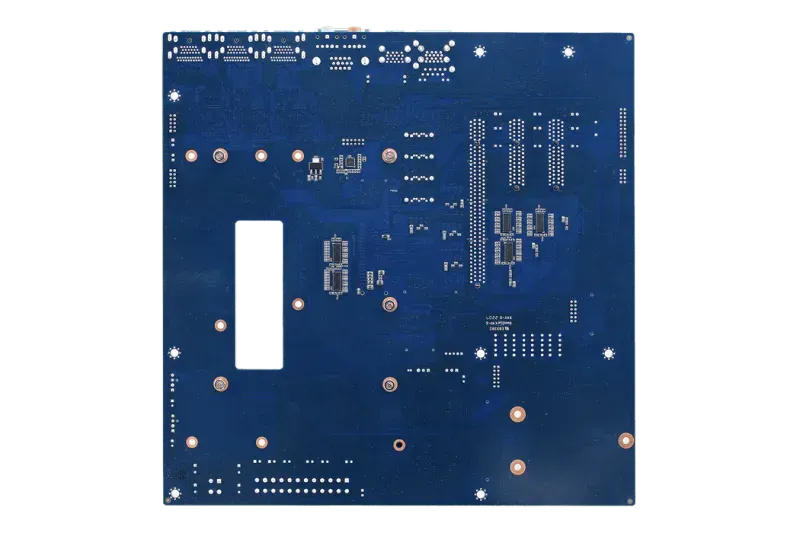

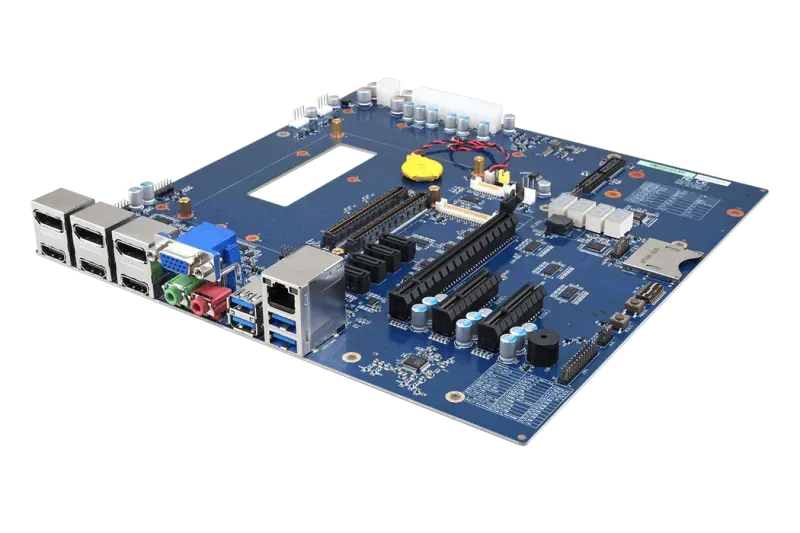

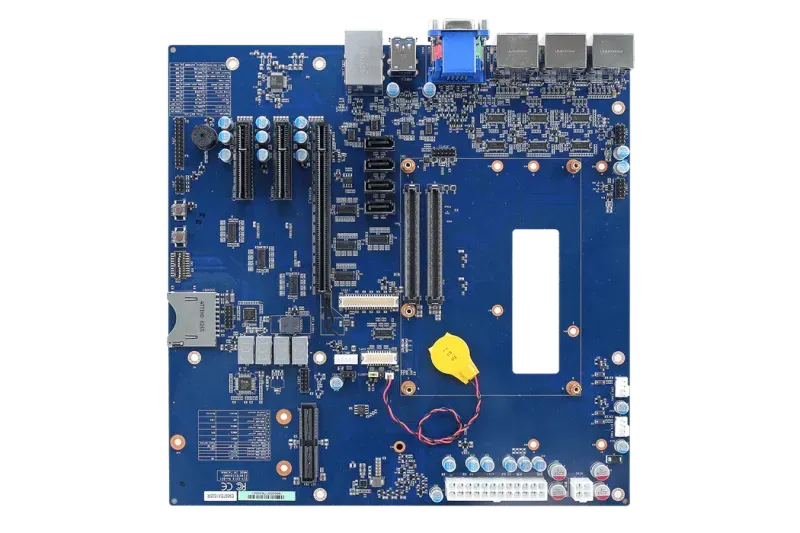

EEV-EX16-B1 FrontEEV-EX16-B1 FrontEEV-EX16-B1 Front
EEV-EX16-B1, Image 1EEV-EX16-B1, Image 2EEV-EX16-B1, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Micro ATX COM Express Type 6 evaluation carrier board
  • PICMG COM Express Revision 3.0, PCIe Gen4 redriver
  • For ESM-EHLC / ESM-TGH and later modules
  • 1 x PCIe x16 + 2 x PCIe x4
  • 3 x DP / 3 x HDMI / VGA / LVDS / eDP outputs
  • 1 x 2.5 Gigabit Ethernet, Realtek ALC888S audio
  • 4 x USB 3.2 Gen2 + 4 x USB 2.0, 4 x SATA III
  • 8-bit GPIO, SD card
  • 0~60°C operating; CE, FCC, RoHS

Product Description

The Avalue EEV-EX16-B1 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 3.0 with a PCIe Gen4 redriver for ESM-EHLC/ESM-TGH and later modules.

In a 243.84 x 243.84 mm footprint it exposes the module's full I/O for prototyping and validation.

It provides PCIe x16 and 2x PCIe x4 slots, triple DP / triple HDMI / VGA / LVDS / eDP display outputs, 2.5GbE, Realtek ALC888S audio, 4x USB 3.2 Gen2 + 4x USB 2.0, 4x SATA III, 8-bit GPIO and an SD card slot — a flexible Type 6 development platform.

Technical Specifications

Processor

Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.0

Expansion

1 x PCIe x16

2 x PCIe x4

Spec. & Resolution

3 x DP

3 x HDMI

1 x VGA

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS

1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out. Mic-in

Ethernet Interface

1 x 2.5 Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.2 Gen2

4 x USB 2.0

GPIO

1 x 8-bit GPIO

SATA

4 x SATA III

MIO

1 x SD Card

1 x Multi-function Pin header

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.91lbs (0.412kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

EEV-EX16-B1R | Type 6 Micro ATX Eval. Board W PCIe Gen4 Redriver for ESM-EHLC/ESM-TGH and later Models B1

What is EEV-EX16-B1?

The EEV-EX16-B1 is a computer-on-module manufactured by Avalue, designed specifically for eval-carrier-board applications. The Avalue EEV-EX16-B1 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 3.0 with a PCIe Gen4 redriver for ESM-EHLC/ESM-TGH and later modules. In a 243.84 x 243.84 mm footprint it exposes the module's full I/O for prototyping and validation. It provides PCIe x16 and 2x PCIe x4 slots, triple DP / triple HDMI / VGA / LVDS / eDP display outputs, 2.5GbE, Realtek ALC888S audio, 4x USB 3.2 Gen2 + 4x USB 2.0, 4x SATA III, 8-bit GPIO and an SD card slot — a flexible Type 6 development platform.

Key Features & Benefits

  • Micro ATX COM Express Type 6 evaluation carrier board
  • PICMG COM Express Revision 3.0, PCIe Gen4 redriver
  • For ESM-EHLC / ESM-TGH and later modules
  • 1 x PCIe x16 + 2 x PCIe x4
  • 3 x DP / 3 x HDMI / VGA / LVDS / eDP outputs
  • 1 x 2.5 Gigabit Ethernet, Realtek ALC888S audio
  • 4 x USB 3.2 Gen2 + 4 x USB 2.0, 4 x SATA III
  • 8-bit GPIO, SD card
  • 0~60°C operating; CE, FCC, RoHS

Applications & Use Cases

The EEV-EX16-B1 is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
