Highlights

  • Micro ATX COM Express Type 6 evaluation carrier board
  • PICMG COM Express Revision 3.1
  • 1 x PCIe x16 Gen4 + 2 x PCIe x4 Gen4
  • DP / HDMI / VGA / LVDS / eDP display outputs
  • IET connector to 2x USB Type-C module board
  • 1 x 2.5 Gigabit Ethernet, Realtek ALC888S audio
  • 4 x USB 3.2 Gen2 x1 + 1 x USB 2.0
  • 16-bit GPIO, LPC, SPI, SD socket
  • Wide -40~85°C operating; CE, FCC, RoHS

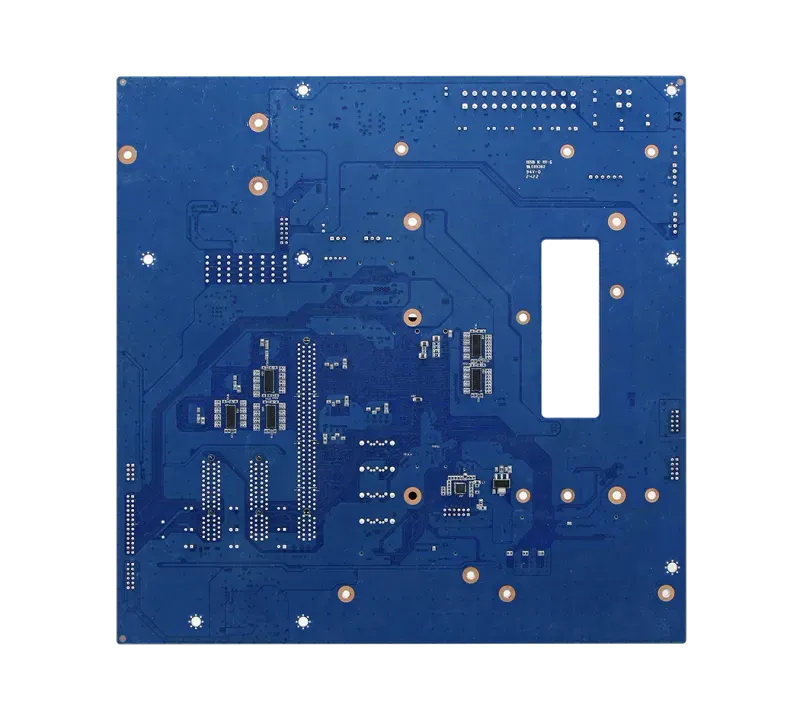

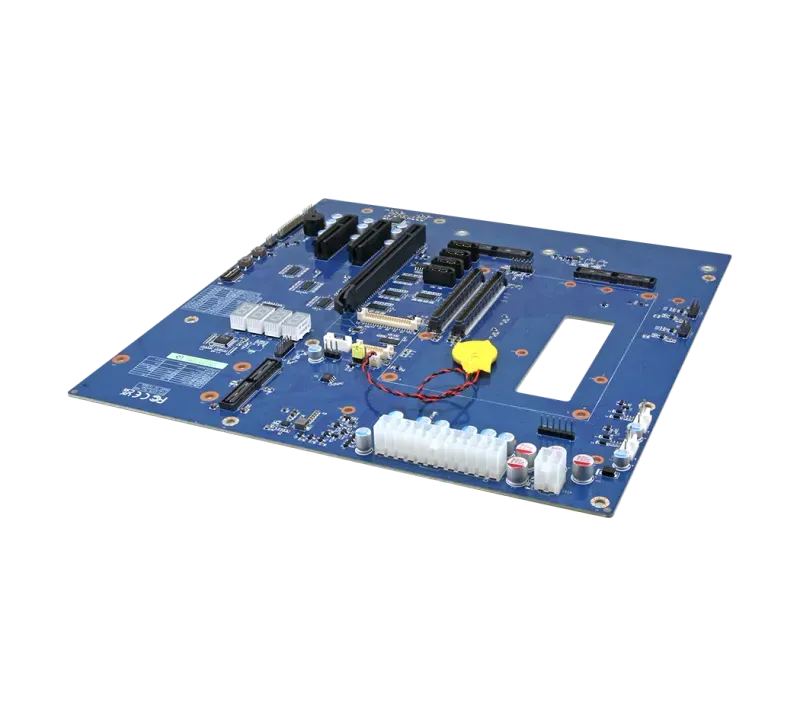

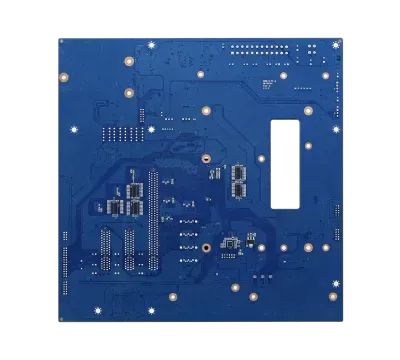

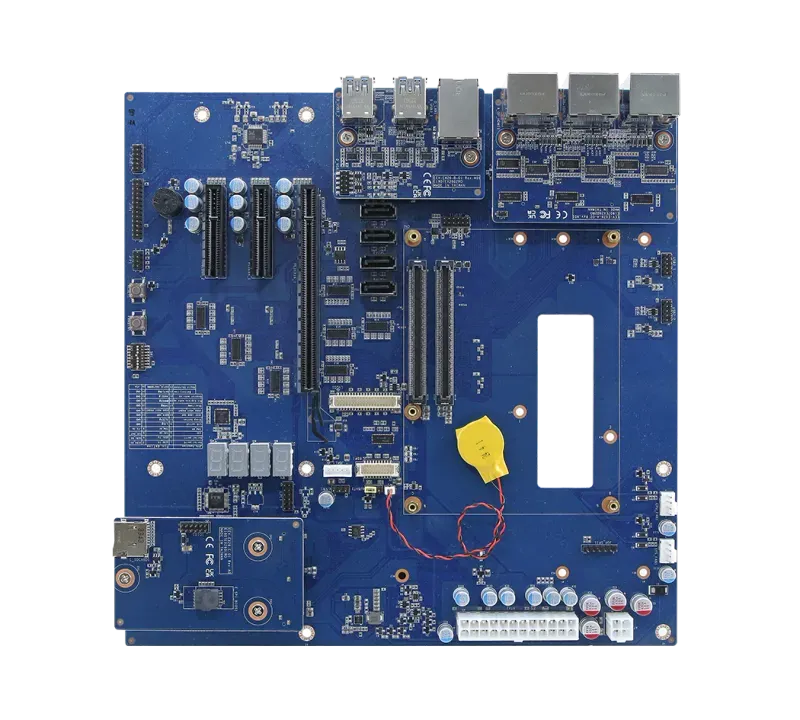

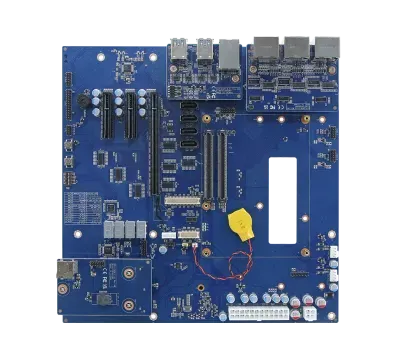

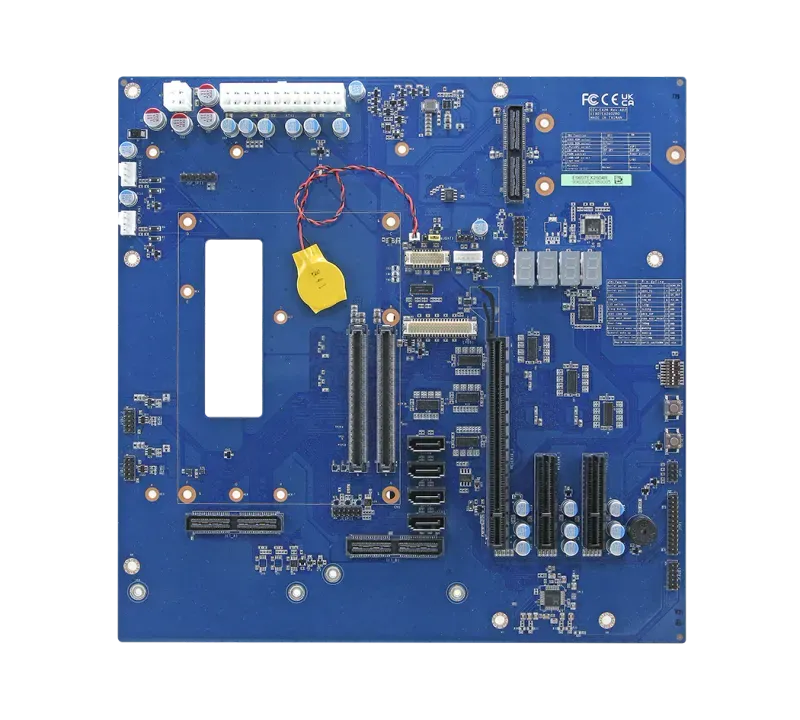

Product Description

The Avalue EEV-EX26 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 3.1, designed to accelerate prototyping, validation, and deployment of Type 6 compute modules.

In a 243.84 x 243.84 mm Micro ATX footprint it exposes the module's full I/O for fast development.

It provides PCIe x16 Gen4 and 2x PCIe x4 Gen4 slots, DP/HDMI/VGA/LVDS/eDP display outputs, an IET connector to a 2x USB Type-C module, 2.5GbE, Realtek ALC888S audio, 4x USB 3.2 Gen2 + 1x USB 2.0, 16-bit GPIO, LPC/SPI/SD, and a wide -40~85°C operating range — a rugged Type 6 development platform.

Technical Specifications

Processor

Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.1

Expansion

1 x PCIe x16 (Gen4)

2 x PCIe x4 (Gen4)

Spec. & Resolution

1 x DP

1 x HDMI

1 x IET connector to 2 x USB Type C module board at IO

1 x VGA

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS

1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out. Mic-in

Ethernet Interface

1 x 2.5 Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.2 Gen2 x1

1 x USB 2.0

GPIO

1 x 16-bit GPIO

MIO

1 x LPC

1 x SPI

1 x SD socket

1 x IET connector for LPC

Operating Temp.

-40 ~ 85°C (-40~ 185°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.91lbs (0.412kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

EEV-EX26-A1R | Type 6 Micro ATX Ev. Board for COM Express Rev.3.0 A1

What is EEV-EX26?

The EEV-EX26 is a computer-on-module manufactured by Avalue, designed specifically for eval-carrier-board applications. The Avalue EEV-EX26 is a Micro ATX evaluation carrier board for COM Express Type 6 modules, built to PICMG COM Express Revision 3.1, designed to accelerate prototyping, validation, and deployment of Type 6 compute modules. In a 243.84 x 243.84 mm Micro ATX footprint it exposes the module's full I/O for fast development. It provides PCIe x16 Gen4 and 2x PCIe x4 Gen4 slots, DP/HDMI/VGA/LVDS/eDP display outputs, an IET connector to a 2x USB Type-C module, 2.5GbE, Realtek ALC888S audio, 4x USB 3.2 Gen2 + 1x USB 2.0, 16-bit GPIO, LPC/SPI/SD, and a wide -40~85°C operating range — a rugged Type 6 development platform.

Key Features & Benefits

  • Micro ATX COM Express Type 6 evaluation carrier board
  • PICMG COM Express Revision 3.1
  • 1 x PCIe x16 Gen4 + 2 x PCIe x4 Gen4
  • DP / HDMI / VGA / LVDS / eDP display outputs
  • IET connector to 2x USB Type-C module board
  • 1 x 2.5 Gigabit Ethernet, Realtek ALC888S audio
  • 4 x USB 3.2 Gen2 x1 + 1 x USB 2.0
  • 16-bit GPIO, LPC, SPI, SD socket
  • Wide -40~85°C operating; CE, FCC, RoHS

Applications & Use Cases

The EEV-EX26 is ideal for various industrial automation applications:

  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Visual monitoring and data display systems
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
