Avalue · Computer-on-Module

OSM-IMX8MM

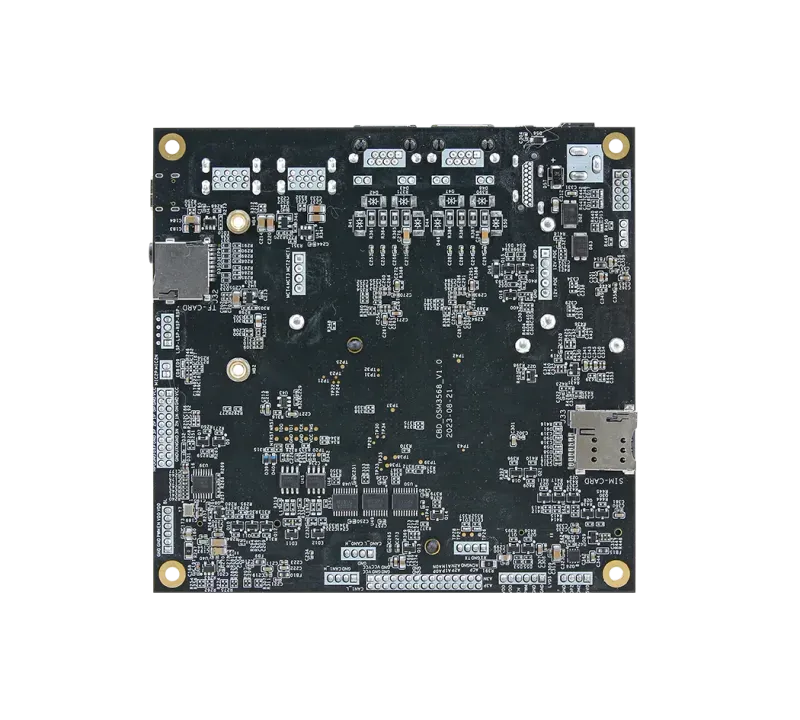

OSM-IMX8MM FrontOSM-IMX8MM FrontOSM-IMX8MM FrontOSM-IMX8MM FrontOSM-IMX8MM FrontOSM-IMX8MM Front

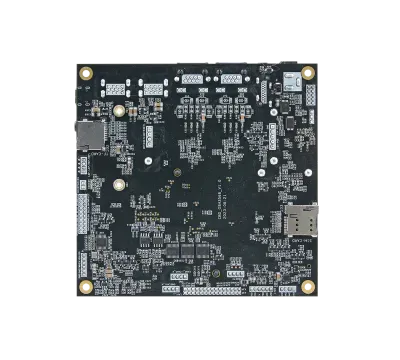

OSM-IMX8MM, Image 1OSM-IMX8MM, Image 2OSM-IMX8MM, Image 3OSM-IMX8MM, Image 4OSM-IMX8MM, Image 5OSM-IMX8MM, Image 6
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • OSM 1.1 Size-L (45 x 45 mm) Open Standard Module
  • NXP i.MX8M Mini quad-core Cortex-A53 + Cortex-M4
  • 2GB LPDDR4, 8GB eMMC 5.1
  • HDMI 4K60 output
  • PCIe 2.0, Gigabit Ethernet, 2x SDIO 3.0
  • MIPI CSI (4-lane) + MIPI DSI (4-lane)
  • USB 2.0 host, 3x UART, 3x I2C, 2x SPI, I2S, SPDIF
  • Wide -40~85°C operating temperature
  • Yocto 2.5 / 4.0; CE, FCC Class B

Product Description

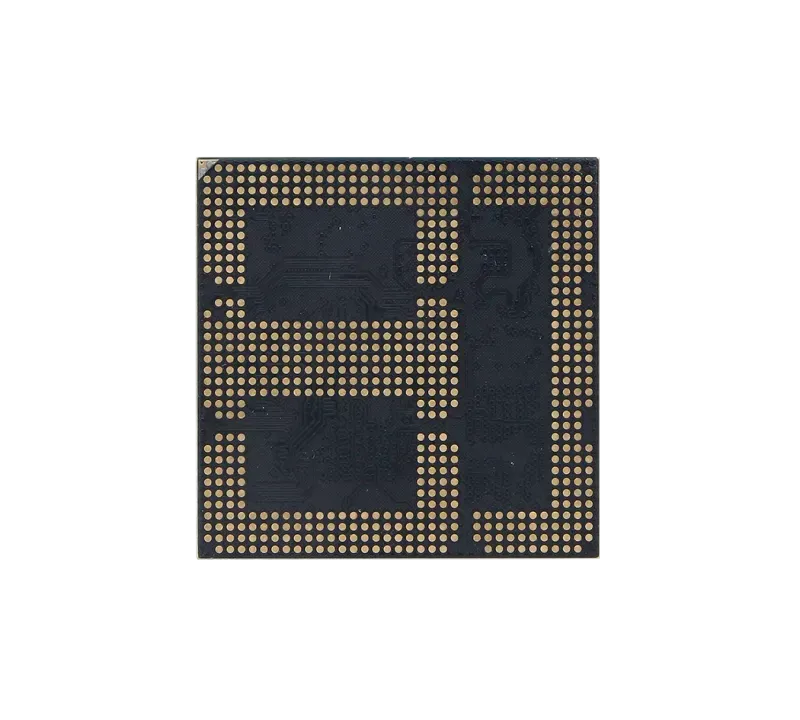

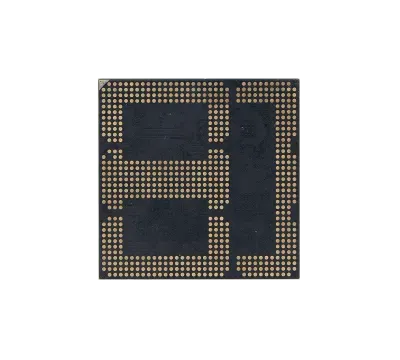

The Avalue OSM-IMX8MM is an OSM 1.1 Size-L (45 x 45 mm) Open Standard Module built on the NXP i.MX8M Mini (quad-core Arm Cortex-A53 + Cortex-M4) processor, designed as a connector-less, high-reliability compute core for mobile and rugged edge devices.

With 2GB LPDDR4, 8GB eMMC, and a wide -40~85°C operating range, it delivers efficient Arm performance with 4K HDMI output.

The module exposes PCIe 2.0, Gigabit Ethernet, HDMI (4K60), MIPI CSI/DSI, dual SDIO 3.0, USB 2.0 host, multiple UARTs, I2C, SPI, I2S and SPDIF through the standardised OSM pads, running Yocto Linux 2.5/4.0.

Technical Specifications

System Memory

2GB LPDDR4

Processor

Quad-core Cortex-A53

Core Cortex-M4

Chipset

NXP iMX8M Mini Arm

Storage

8GB eMMC 5.1

PCIe

1 x 2.0

GPIO

x 24 ( 3 share with PWM)

HDMI

x 1 , 4k60Hz

I2C

x 3

MIPI CSI

x 1 (4 lane)

MIPI DSI

x 1 (4 lane)

SPDIF

x 1

I2S

x 1

SPI

x 2

LAN

1 x Ethernet 1000M

SDIO

2 x SDIO 3.0

COM

1 x debugging port

3 x UART

USB Port

2 x USB Host 2.0

Certification Information

CE, FCC Class B

Storage Temperature

-40~85 Degree

Dimension

45mm x 45mm (Size-L)

Power Requirement

DC input voltage 5V

Operating Humidity

5% to 95%, non-condensing

Operating Temperature

Industry：-40~80 Degree

OS Information

Yocto 2.5 and 4.0

Ordering Information

TBD

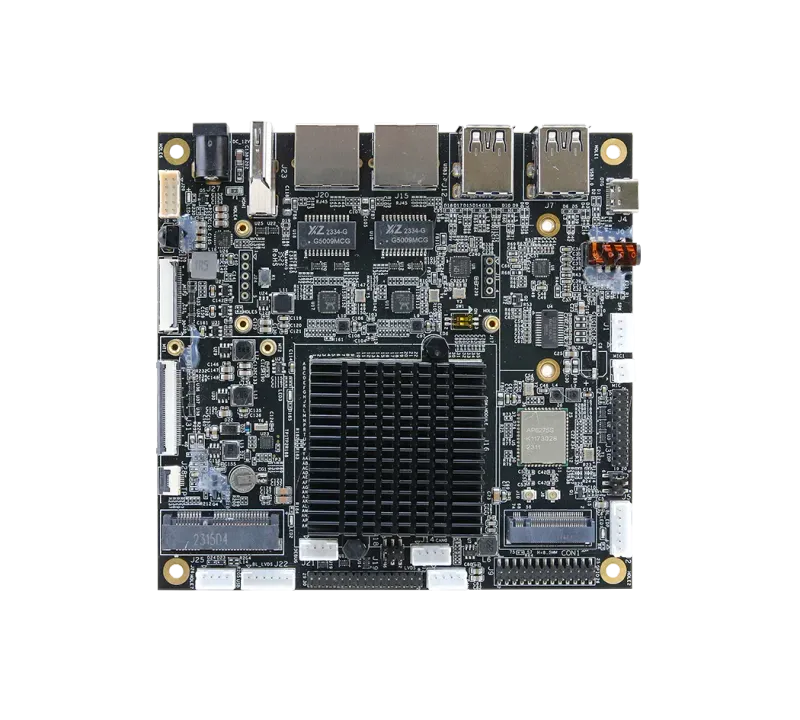

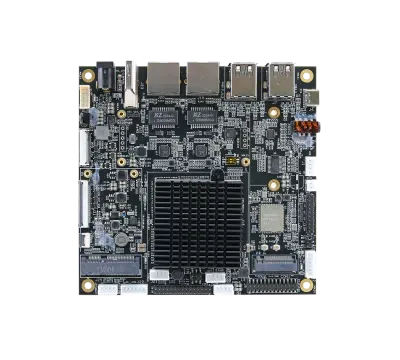

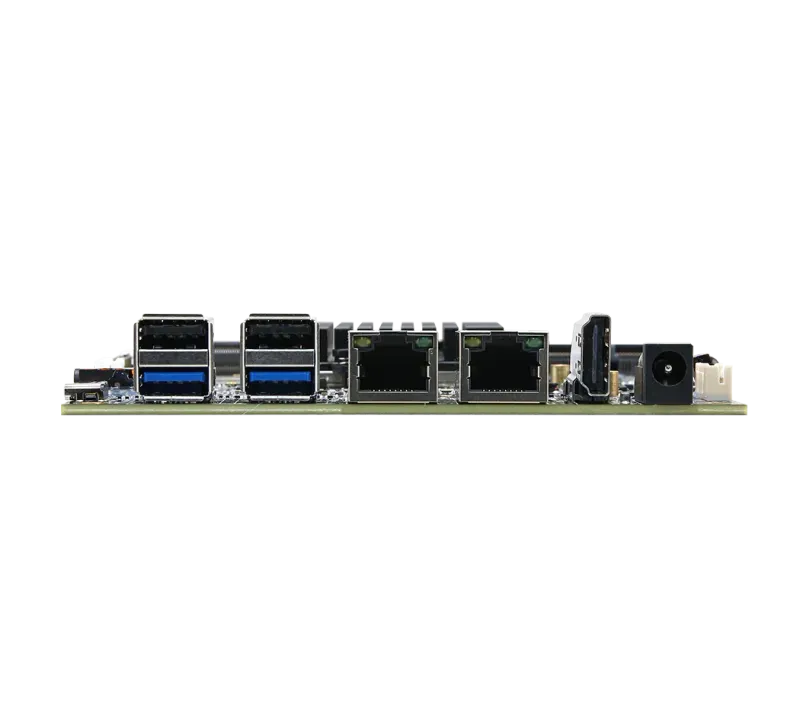

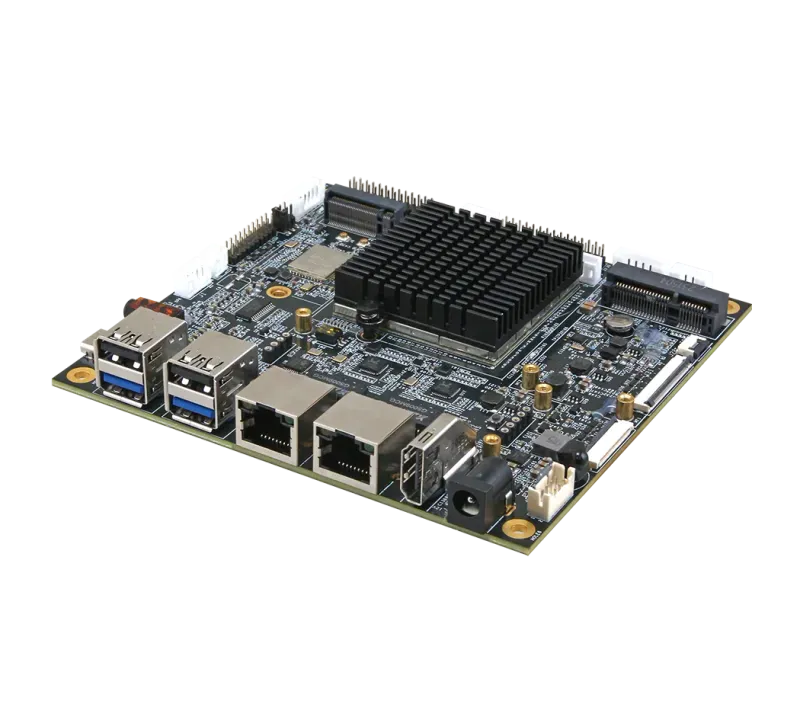

Gigabit Ethernet

x 1 Port(JP2 Support POE PD Function with POE Module)

Wi-Fi/BT

AP6275S module,support 802.11 a/b/g/n/ac

USB

x 2 (2 x USB 2.0 Type A, 1 x Expansion Connector)

Micro SD Slot

x 1

SIM Card Slot

x 1

Mini-PCIE

x 1 (Support 4G module)

MIPI CSI

x 1

IR Module

x 1 (Support USB IR RECEIVE MODULE)

Speaker

x 1

DC-IN

12V/2A

SW

K1 (Recovery mode)

Dimensions

125 x 120 mm

What is OSM-IMX8MM?

The OSM-IMX8MM is a computer-on-module manufactured by Avalue, designed specifically for open-standard-module applications. The Avalue OSM-IMX8MM is an OSM 1.1 Size-L (45 x 45 mm) Open Standard Module built on the NXP i.MX8M Mini (quad-core Arm Cortex-A53 + Cortex-M4) processor, designed as a connector-less, high-reliability compute core for mobile and rugged edge devices. With 2GB LPDDR4, 8GB eMMC, and a wide -40~85°C operating range, it delivers efficient Arm performance with 4K HDMI output. The module exposes PCIe 2.0, Gigabit Ethernet, HDMI (4K60), MIPI CSI/DSI, dual SDIO 3.0, USB 2.0 host, multiple UARTs, I2C, SPI, I2S and SPDIF through the standardised OSM pads, running Yocto Linux 2.5/4.0.

Key Features & Benefits

  • OSM 1.1 Size-L (45 x 45 mm) Open Standard Module
  • NXP i.MX8M Mini quad-core Cortex-A53 + Cortex-M4
  • 2GB LPDDR4, 8GB eMMC 5.1
  • HDMI 4K60 output
  • PCIe 2.0, Gigabit Ethernet, 2x SDIO 3.0
  • MIPI CSI (4-lane) + MIPI DSI (4-lane)
  • USB 2.0 host, 3x UART, 3x I2C, 2x SPI, I2S, SPDIF
  • Wide -40~85°C operating temperature
  • Yocto 2.5 / 4.0; CE, FCC Class B

Applications & Use Cases

The OSM-IMX8MM is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
