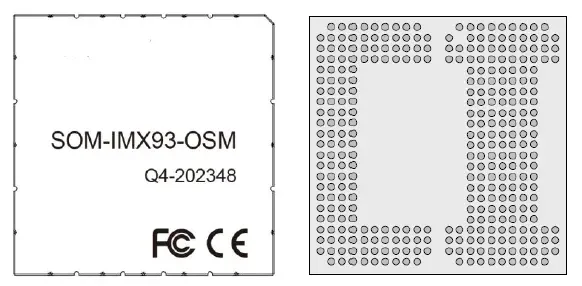

OSM-IMX93

Series: OSM

Manufactured byAvalue

The Avalue OSM-IMX93 is an Open Standard Module (OSM) solder-down System-on-Module built on the NXP i.MX93 applications processor, designed as an ultra-compact, connector-less compute core for high-reliability edge and IoT devices. In a tiny 30 x 30 mm footprint with 2GB LPDDR4 and 16GB eMMC (8/32GB optional), it delivers efficient Arm compute with rich industrial I/O. The module exposes dual Gigabit Ethernet (one with TSN), MIPI CSI camera and MIPI DSI display, USB 2.0, CAN-FD, SPI, I2C and multiple UARTs through the standardised OSM edge pads — eliminating connectors for maximum shock and vibration resistance in mass-deployed embedded products.

Key Features

Open Standard Module (OSM) solder-down System-on-Module
NXP i.MX93 Arm applications processor
2GB LPDDR4 memory
16GB eMMC (8GB / 32GB optional)
Dual Gigabit Ethernet (one with TSN, EEE, AVB, IEEE 1588)
MIPI CSI-2 camera + 4-lane MIPI DSI display
CAN-FD, 2x I2C, 2x SPI, 4x UART, USB 2.0
24x GPIO
Ultra-compact 30 x 30 mm, 5V input

Technical Specifications

System Information

System Memory	2GB LPDDR4
Chipset	NXP i.MX93

Storage

Storage	16GB eMMC （8G/32G optional）

OSM Module I/O

GPIO	x 24
I2C	x2
MIPI CSI	One 2-lane MIPI CSI-2 camera input
MIPI DSI	One 4-lane MIPI DSI display with data supplied by the LCDIF
Network	One Gigabit Ethernet controller with support for Energy Efficient Ethernet (EEE), Ethernet AVB, and IEEE 1588, One Gigabit Ethernet controller with support for TSN in addition to EEE, Ethernet AVB, and IEEE 1588
USB Port	USB 2.0 controllers and PHYs interfaces

Mechanical & Environmental

Dimension	30mm × 30mm

Development board Interfaces

CAN	One Controller Area Network (FlexCAN) modules, each optionally supporting flexible data-rate (FD)
SPI	x2 Supports master and slave modes
UART	x4 Supports hardware or software flow control;
Adapter	5V
