Avalue · Computer-on-Module

EQM-APL

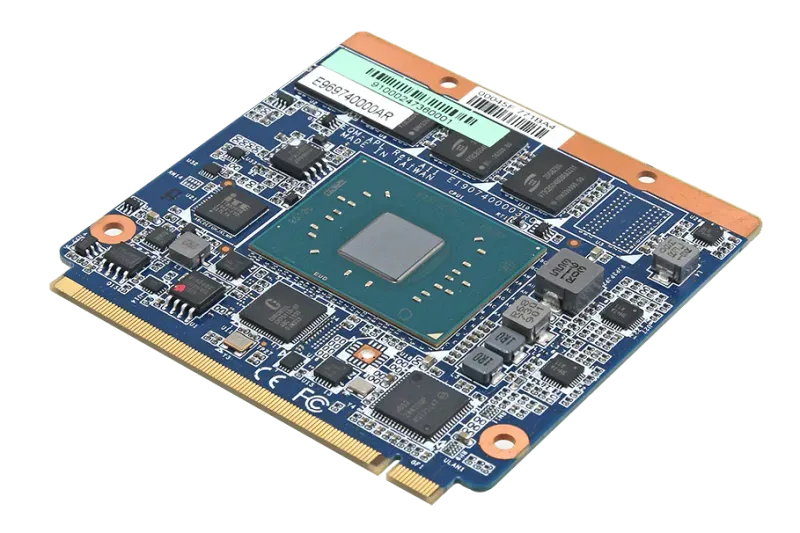

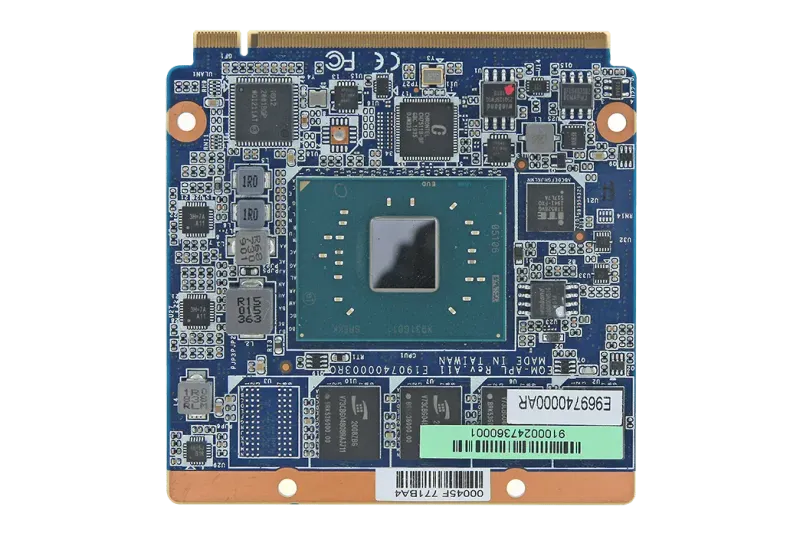

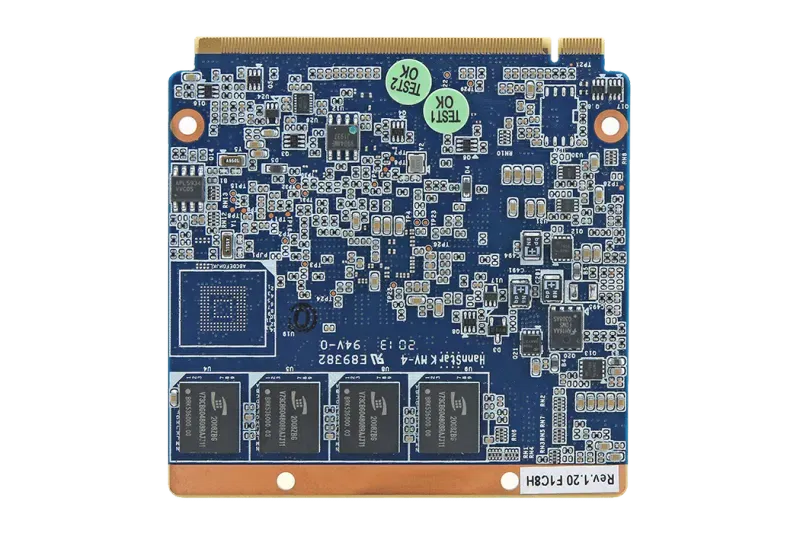

EQM-APL FrontEQM-APL FrontEQM-APL Front

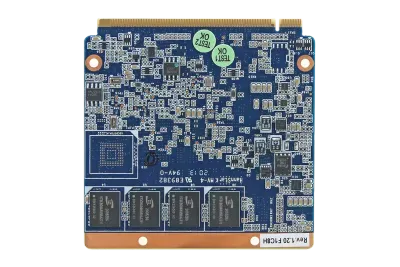

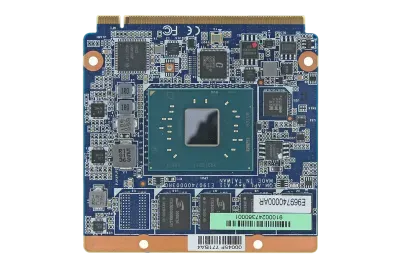

EQM-APL, Image 1EQM-APL, Image 2EQM-APL, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Qseven (70 x 70 mm) Computer-on-Module
  • Intel Pentium N4200, Celeron N3350/J3455 (Apollo Lake)
  • Onboard DDR3L 1600/1333 4GB (up to 8GB)
  • Intel SoC integrated graphics: LVDS/eDP + HDMI/DP up to 4K
  • 3 x PCIe x1, Intel I210AT Gigabit Ethernet
  • 2 x USB 3.0 + 6 x USB 2.0, 2 x SATA III, 1 x UART
  • SMBus / LPC / I2C / SPI
  • 0~60°C operating (N4200/N3350)
  • Windows 10 / Linux / Android; CE, FCC, RoHS

Product Description

The Avalue EQM-APL is a Qseven (70 x 70 mm) Computer-on-Module built on Intel Pentium N4200, Celeron N3350 and Celeron J3455 (Apollo Lake) SoCs, designed as a compact, low-power, cost-effective compute core for long-lifecycle embedded and IoT designs.

With onboard DDR3L 4GB (up to 8GB) and optional storage, it delivers efficient x86 performance through the standardised Qseven edge connector.

It offers Intel SoC integrated graphics with LVDS/eDP + HDMI/DP (up to 4096x2160@60Hz on DP), 3x PCIe x1, Intel I210AT Gigabit Ethernet, 2x USB 3.0 + 6x USB 2.0, 2x SATA III, UART, and a 0~60°C range, running Windows 10, Linux or Android.

Technical Specifications

Processor

Intel® Pentium® Processor N4200 4C 1.1 GHz

Intel® Celeron® Processor N3350 2C 1.1 GHz

Intel® Celeron® Processor J3455 4C 1.5 GHz

System Memory

Onboard DDR3L 1600&1333 4GB Up to 8GB

I/O Chipset

EC iTE IT8528

BIOS

AMI uEFI BIOS, 128 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

H/W Status Monitor

Monitoring System Temperature, Voltage with Auto Throttling Control When CPU Temperature Monitoring V-Core Voltages Monitoring 5V Voltage Monitoring

Expansion

3 x PCIe x1

Graphic Chipset

Intel® SoC Integrated Graphics

Spec. & Resolution

HDMI: Max. Resolution 3840x2160@30Hz or DP: Max. Resolution 4096x2160@60Hz

LVDS: Max. Resolution 1920x1200@60Hz or eDP: Max. Resolution 4096x2160@60Hz

Multiple Display

LVDS or eDP (Optional), HDMI or Display Port

LVDS

CH7511B(eDP to LVDS)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx Gigabit Ethernet Compatible

OS

Windows 10

Linux

Android

Certification Information

CE, FCC Class, RoHS Compliant

USB

2 x USB 3.0

6 x USB 2.0

COM Port

1 x UART

PCIe

3 x PCIe x1

SATA

2 x SATA III

MIO

1 x SMBus

1 x LPC

1 x I2C

1 x SPI

Operating Temp.

Standard supports 0°C ~ 60°C (32°F ~ 140°F)(N4200/N3350)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.095lbs (0.043Kg)

Power Requirement

+5V

Power Mode

AT

Dimension (L x W)

2.75" x 2.75" (70mm x 70mm)

Ordering Information

EQM-APL-N4200-A2R | Intel Pentium ® N4200 Q7/4G DDR3L Rev. A2

EQM-APL-N3350-A2R | Intel Celeron® N3350 Q7/4G DDR3L Rev. A2

EQM-APL-J3455-A2R | Intel Celeron® J3455 Q7/4G DDR3L Rev. A2

REV-Q703-B1-00R | Mini ITX Evaluation Carrier Board for Q7 Rev 2.1

ACC-EQMAPLN-SK-1R | Heatsink for EQM-APL N4200/N3350 w/o Fan,H=24mm, supports -20~70C

ACC-EQMAPLN-SD-1R | Heatspreader for EQM-APL N4200/N3350

What is EQM-APL?

The EQM-APL is a computer-on-module manufactured by Avalue, designed specifically for qseven applications. The Avalue EQM-APL is a Qseven (70 x 70 mm) Computer-on-Module built on Intel Pentium N4200, Celeron N3350 and Celeron J3455 (Apollo Lake) SoCs, designed as a compact, low-power, cost-effective compute core for long-lifecycle embedded and IoT designs. With onboard DDR3L 4GB (up to 8GB) and optional storage, it delivers efficient x86 performance through the standardised Qseven edge connector. It offers Intel SoC integrated graphics with LVDS/eDP + HDMI/DP (up to 4096x2160@60Hz on DP), 3x PCIe x1, Intel I210AT Gigabit Ethernet, 2x USB 3.0 + 6x USB 2.0, 2x SATA III, UART, and a 0~60°C range, running Windows 10, Linux or Android.

Key Features & Benefits

  • Qseven (70 x 70 mm) Computer-on-Module
  • Intel Pentium N4200, Celeron N3350/J3455 (Apollo Lake)
  • Onboard DDR3L 1600/1333 4GB (up to 8GB)
  • Intel SoC integrated graphics: LVDS/eDP + HDMI/DP up to 4K
  • 3 x PCIe x1, Intel I210AT Gigabit Ethernet
  • 2 x USB 3.0 + 6 x USB 2.0, 2 x SATA III, 1 x UART
  • SMBus / LPC / I2C / SPI
  • 0~60°C operating (N4200/N3350)
  • Windows 10 / Linux / Android; CE, FCC, RoHS

Applications & Use Cases

The EQM-APL is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Industrial automation and control
  • Manufacturing process monitoring
