EQM-EHL

Series: EQM

Manufactured byAvalue

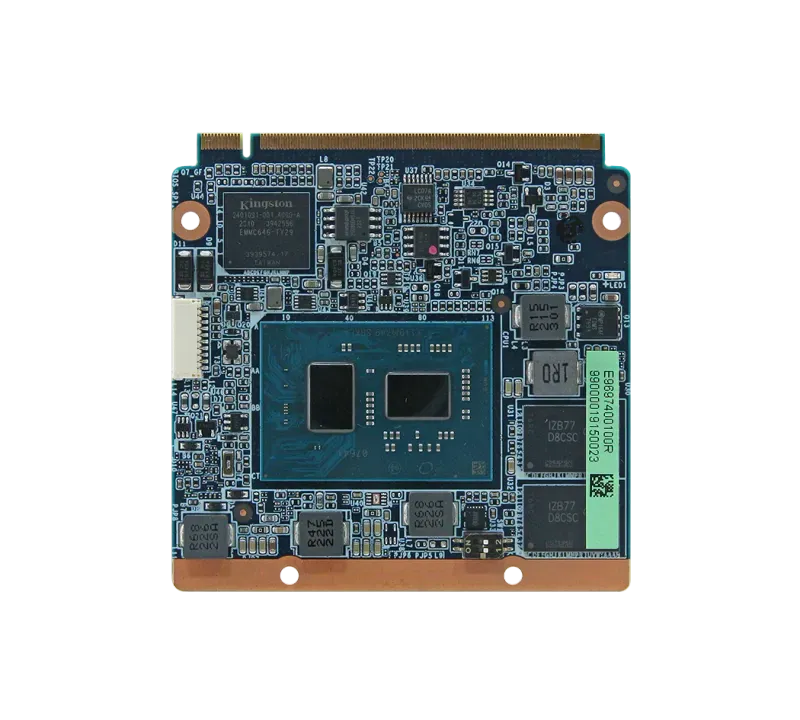

The Avalue EQM-EHL is a Qseven (70 x 70 mm) Computer-on-Module built on the Intel Atom x6000E Series / Pentium / Celeron (Elkhart Lake) SoC, designed as a compact, low-power, upgrade-ready compute core for embedded and IoT designs. With onboard single-channel LPDDR4 4GB (HW up to 8GB), onboard TPM 2.0, and optional eMMC 64/128GB, it delivers efficient x86 performance through the standardised Qseven edge connector. It offers Intel Gen11 LP graphics with up to 2 independent displays (DP 1.4 / HDMI 2.0b / eDP / LVDS up to 4K), 4x PCIe x1 Gen3, Intel I226LM/IT 2.5GbE, 1x USB 3.2 Gen1 + 8x USB 2.0, 2x SATA III, and a standard 0~60°C / extended -40~85°C range, running Windows 10/11 IoT Enterprise or Linux.

Key Features

Qseven (70 x 70 mm) Computer-on-Module
Intel Atom x6000E Series / Pentium / Celeron (Elkhart Lake)
Onboard single-channel LPDDR4 4GB (HW supports up to 8GB)
Onboard TPM 2.0, optional eMMC 5.1 64/128GB
Intel Gen11 LP graphics, up to 2 independent displays (DP/HDMI/eDP/LVDS up to 4K)
4 x PCIe x1 Gen3, Intel I226LM/IT 2.5GbE
1 x USB 3.2 Gen1 + 8 x USB 2.0, 2 x SATA III
Standard 0~60°C / extended -40~85°C
Windows 10/11 IoT Enterprise / Linux; CE, FCC, RoHS

Technical Specifications

System Information

Processor	Intel® Atom™ x6000E Series/Pentium®/Celeron® SoC Processor
System Memory	On board Single channel LPDDR4 4GB with 3200MT/s, (Avalue has verified and defined 4GB as the default. The hardware specification can support up to 8GB. Verification can be arranged according to customer needs.)
I/O Chipset	EC iTE IT5571
BIOS	AMI uEFI BIOS, 256 Mbit SPI Flash ROM
Watchdog Timer	H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step
H/W Status Monitor	Monitoring System Temperature, Voltage with Auto Throttling Control
TPM	Onboard TPM 2.0

Expansion

Expansion	4 x PCIe x1 (Gen 3)

Storage

Storage	Onboard eMMC 5.1 64GB / 128 GB (Optional)

Display

Graphic Chipset	Intel® SoC Processor Integrated Gen11 LP Graphics
Spec. & Resolution	DP 1.4 Max Resolution 4096x2160 @60Hz or HDMI 2.0b Max Resolution 4096x2160 @60Hz, eDP 1.3 Max Resolution 4096x2160 @60Hz Only, or LVDS Max Resolution 1920 x 1080@60Hz Dual Channel 18/24-bits LVDS (Chrontel CH7511A-BF eDP to LVDS), *By BOM Option Via HW/BIOS, Refer to Block Diagram for Detail.
Multiple Display	Up to 2 Independent Display, HDMI, DP, eDP, LVDS
LVDS	CH7511B(eDP to LVDS)

Audio

Audio Interface	Intel® HD Audio Integrated on CPU

Ethernet

LAN Chipset	1 x Intel® I226LM/IT
Ethernet Interface	10/100/1000/2500 Base-Tx GbE Compatible

Software Support

OS	Windows 10, Windows 11 IoT Enterprise (64-bit), Linux

Certification

Certification Information	CE, FCC Class, RoHS Compliant

I/O

USB	1 x USB 3.2 Gen1, 8 x USB2.0
COM Port	1 x UART
PCIe	4 x PCIe x1 (Gen 3)
SATA	2 x SATA III
MIO	1 x SMBus, 1 x LPC, 1 x I2C, 1 x SDIO, 1 x SD, 1 x SPI

Mechanical & Environmental

Operating Temp.	Standard 0°C ~ 60°C (32°F ~ 140°F), Extended -40°C ~ 85°C (-40°F ~ 185°F)
Storage Temp.	-40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Weight	0.095lbs (0.043Kg)
Power Requirement	+5V
Power Mode	ATX
Dimension (L x W)	2.75" x 2.75" (70mm x 70mm)

Ordering Information

EQM-EHL-N11-A1-1R Intel®Celeron® N6211 Q7/4G LPDDR4/0°C ~ 60°C, EQM-EHL-N15-A1-1R Intel®Pentium® N6415 Q7/4G LPDDR4/0°C ~ 60°C, EQM-EHL-X11E-A1-1R Intel® Atom® X6211E Q7/4G LPDDR4/-40°C ~ 85°C, EQM-EHL-X13E-A1-1R Intel® Atom® X6413E Q7/4G LPDDR4/ -40°C ~ 85°C, REV-Q703-B1-01R Mini ITX Evaluation Carrier Board for Q7 Rev.2.1 B1 (For EQM-EHL & EQM-APL), ACC-EQMEHL-CL-1R Cooler for EQM-EHL w/o Fan, H=42mm, Wide Temp. SKUs (X6211E, X6413E), ACC-EQMEHL-SK-1R Heatsink for EQM-EHL w/o Fan, H=20mm, Standard Temp. SKUs (N6211, N6415)
