Avalue · Computer-on-Module

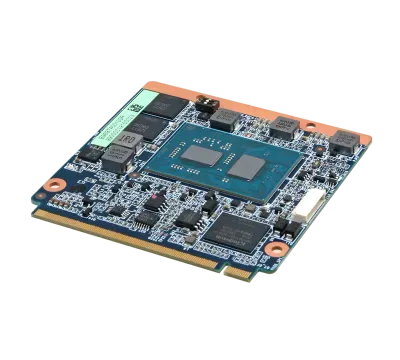

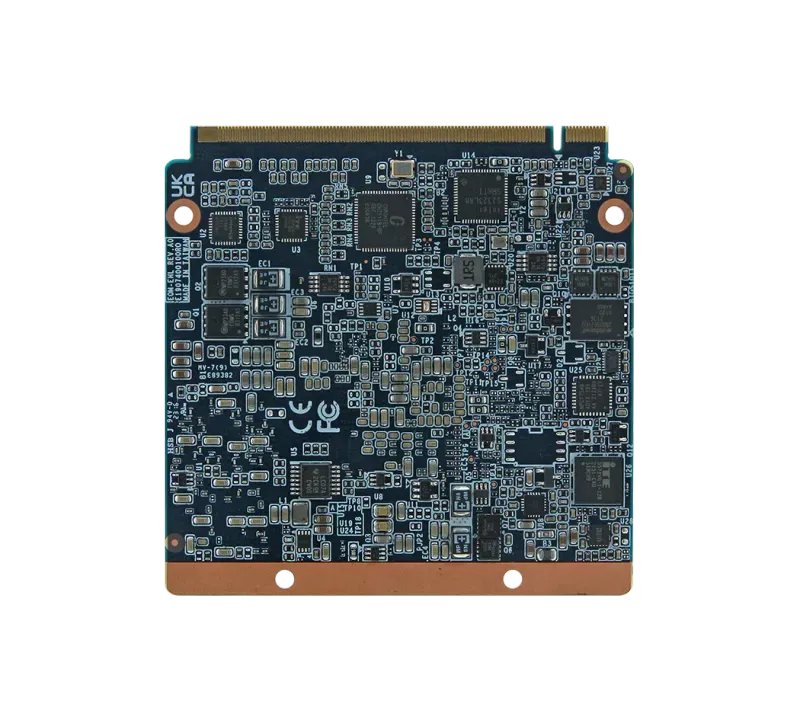

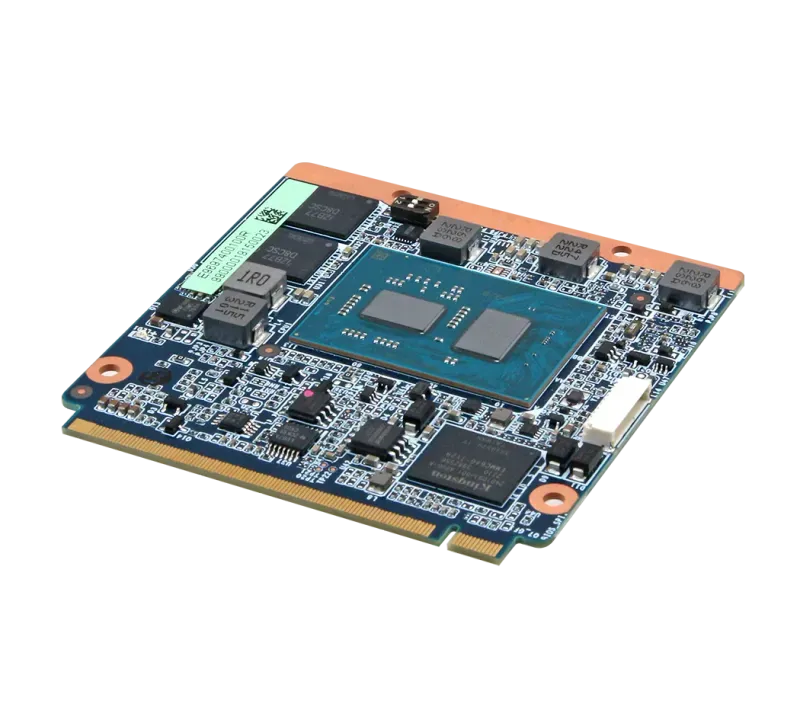

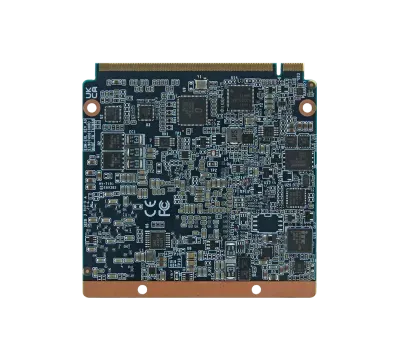

EQM-EHL

EQM-EHL FrontEQM-EHL FrontEQM-EHL Front
EQM-EHL, Image 1EQM-EHL, Image 2EQM-EHL, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Qseven (70 x 70 mm) Computer-on-Module
  • Intel Atom x6000E Series / Pentium / Celeron (Elkhart Lake)
  • Onboard single-channel LPDDR4 4GB (HW supports up to 8GB)
  • Onboard TPM 2.0, optional eMMC 5.1 64/128GB
  • Intel Gen11 LP graphics, up to 2 independent displays (DP/HDMI/eDP/LVDS up to 4K)
  • 4 x PCIe x1 Gen3, Intel I226LM/IT 2.5GbE
  • 1 x USB 3.2 Gen1 + 8 x USB 2.0, 2 x SATA III
  • Standard 0~60°C / extended -40~85°C
  • Windows 10/11 IoT Enterprise / Linux; CE, FCC, RoHS

Product Description

The Avalue EQM-EHL is a Qseven (70 x 70 mm) Computer-on-Module built on the Intel Atom x6000E Series / Pentium / Celeron (Elkhart Lake) SoC, designed as a compact, low-power, upgrade-ready compute core for embedded and IoT designs.

With onboard single-channel LPDDR4 4GB (HW up to 8GB), onboard TPM 2.0, and optional eMMC 64/128GB, it delivers efficient x86 performance through the standardised Qseven edge connector.

It offers Intel Gen11 LP graphics with up to 2 independent displays (DP 1.4 / HDMI 2.0b / eDP / LVDS up to 4K), 4x PCIe x1 Gen3, Intel I226LM/IT 2.5GbE, 1x USB 3.2 Gen1 + 8x USB 2.0, 2x SATA III, and a standard 0~60°C / extended -40~85°C range, running Windows 10/11 IoT Enterprise or Linux.

Technical Specifications

Processor

Intel® Atom™ x6000E Series/Pentium®/Celeron® SoC Processor

System Memory

On board Single channel LPDDR4 4GB with 3200MT/s

(Avalue has verified and defined 4GB as the default. The hardware specification can support up to 8GB. Verification can be arranged according to customer needs.)

I/O Chipset

EC iTE IT5571

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

H/W Status Monitor

Monitoring System Temperature, Voltage with Auto Throttling Control

TPM

Onboard TPM 2.0

Expansion

4 x PCIe x1 (Gen 3)

Storage

Onboard eMMC 5.1 64GB / 128 GB (Optional)

Graphic Chipset

Intel® SoC Processor Integrated Gen11 LP Graphics

Spec. & Resolution

DP 1.4 Max Resolution 4096x2160 @60Hz or HDMI 2.0b Max Resolution 4096x2160 @60Hz

eDP 1.3 Max Resolution 4096x2160 @60Hz Only

or LVDS Max Resolution 1920 x 1080@60Hz Dual Channel 18/24-bits LVDS (Chrontel CH7511A-BF eDP to LVDS)

*By BOM Option Via HW/BIOS, Refer to Block Diagram for Detail.

Multiple Display

Up to 2 Independent Display

HDMI

DP

eDP

LVDS

LVDS

CH7511B(eDP to LVDS)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I226LM/IT

Ethernet Interface

10/100/1000/2500 Base-Tx GbE Compatible

OS

Windows 10, Windows 11 IoT Enterprise (64-bit)

Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

1 x USB 3.2 Gen1

8 x USB2.0

COM Port

1 x UART

PCIe

4 x PCIe x1 (Gen 3)

SATA

2 x SATA III

MIO

1 x SMBus

1 x LPC

1 x I2C

1 x SDIO

1 x SD

1 x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Extended -40°C ~ 85°C (-40°F ~ 185°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.095lbs (0.043Kg)

Power Requirement

+5V

Power Mode

ATX

Dimension (L x W)

2.75" x 2.75" (70mm x 70mm)

Ordering Information

EQM-EHL-N11-A1-1R Intel®Celeron® N6211 Q7/4G LPDDR4/0°C ~ 60°C, EQM-EHL-N15-A1-1R Intel®Pentium® N6415 Q7/4G LPDDR4/0°C ~ 60°C, EQM-EHL-X11E-A1-1R Intel® Atom® X6211E Q7/4G LPDDR4/-40°C ~ 85°C, EQM-EHL-X13E-A1-1R Intel® Atom® X6413E Q7/4G LPDDR4/ -40°C ~ 85°C, REV-Q703-B1-01R Mini ITX Evaluation Carrier Board for Q7 Rev.2.1 B1 (For EQM-EHL & EQM-APL), ACC-EQMEHL-CL-1R Cooler for EQM-EHL w/o Fan, H=42mm, Wide Temp. SKUs (X6211E, X6413E), ACC-EQMEHL-SK-1R Heatsink for EQM-EHL w/o Fan, H=20mm, Standard Temp. SKUs (N6211, N6415)

What is EQM-EHL?

The EQM-EHL is a computer-on-module manufactured by Avalue, designed specifically for qseven applications. The Avalue EQM-EHL is a Qseven (70 x 70 mm) Computer-on-Module built on the Intel Atom x6000E Series / Pentium / Celeron (Elkhart Lake) SoC, designed as a compact, low-power, upgrade-ready compute core for embedded and IoT designs. With onboard single-channel LPDDR4 4GB (HW up to 8GB), onboard TPM 2.0, and optional eMMC 64/128GB, it delivers efficient x86 performance through the standardised Qseven edge connector. It offers Intel Gen11 LP graphics with up to 2 independent displays (DP 1.4 / HDMI 2.0b / eDP / LVDS up to 4K), 4x PCIe x1 Gen3, Intel I226LM/IT 2.5GbE, 1x USB 3.2 Gen1 + 8x USB 2.0, 2x SATA III, and a standard 0~60°C / extended -40~85°C range, running Windows 10/11 IoT Enterprise or Linux.

Key Features & Benefits

  • Qseven (70 x 70 mm) Computer-on-Module
  • Intel Atom x6000E Series / Pentium / Celeron (Elkhart Lake)
  • Onboard single-channel LPDDR4 4GB (HW supports up to 8GB)
  • Onboard TPM 2.0, optional eMMC 5.1 64/128GB
  • Intel Gen11 LP graphics, up to 2 independent displays (DP/HDMI/eDP/LVDS up to 4K)
  • 4 x PCIe x1 Gen3, Intel I226LM/IT 2.5GbE
  • 1 x USB 3.2 Gen1 + 8 x USB 2.0, 2 x SATA III
  • Standard 0~60°C / extended -40~85°C
  • Windows 10/11 IoT Enterprise / Linux; CE, FCC, RoHS

Applications & Use Cases

The EQM-EHL is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Visual monitoring and data display systems
  • Industrial automation and control
  • Manufacturing process monitoring
