What is the REV-SA01?

It is a compact SMARC evaluation/carrier baseboard (146 x 101 mm) for prototyping and validating SMARC compute modules, with a wide DC 9~36V input.

What is a SMARC carrier baseboard?

It exposes the I/O of a SMARC module so engineers can prototype and validate the module before designing a custom carrier.

What is notable about the REV-SA01's power input?

It accepts a wide DC 9~36V input, suiting vehicular, battery and field deployments.

What display outputs does the REV-SA01 offer?

HDMI and VGA, plus an LVDS header — actual capability depends on the fitted SMARC module.

What serial/field I/O does the REV-SA01 have?

A DB9, RS-232, and dual CAN bus.

Does the REV-SA01 support SATA storage?

Yes, it provides 1x SATA plus an SD slot.

What USB does the REV-SA01 provide?

2x USB Type-A, a Mini-USB, plus an internal USB header.

What audio does the REV-SA01 provide?

A Wolfson WM8962 codec with backlight and speaker headers.

What is the operating temperature range of the REV-SA01?

0°C ~ 60°C operating, -20°C ~ 80°C storage.

What is the form factor of the REV-SA01?

146 x 101 mm, approximately 0.13 kg — a compact carrier.

How does the REV-SA01 differ from REV-SA02/SA03?

All are SMARC carriers; the REV-SA01 is the most compact with a wide 9~36V input for vehicular/field use, while SA02 emphasises industrial legacy I/O and SA03 emphasises M.2/MIPI expansion.

What applications is the REV-SA01 best suited for?

Development and validation of SMARC modules for compact, wide-voltage vehicular and field embedded designs.

SMARC (Smart Mobility ARChitecture) is a credit-card-sized, low-power Computer-on-Module standard with rich camera, display and serial I/O — ideal for fanless edge-AI and IoT designs.

Avalue · Computer-on-Module

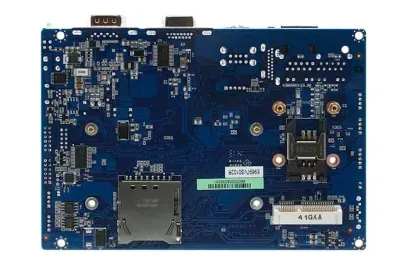

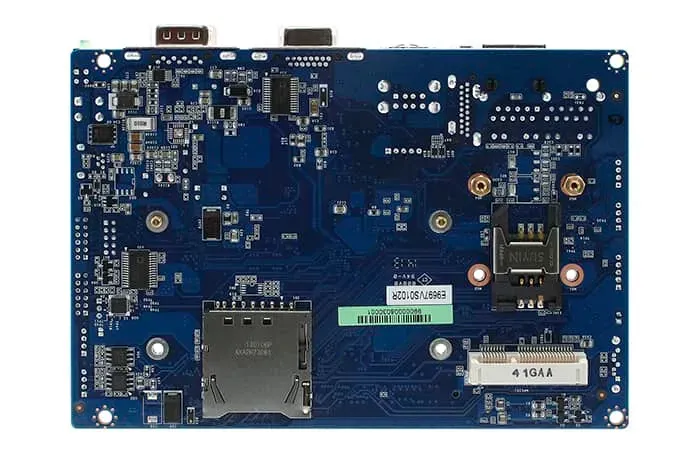

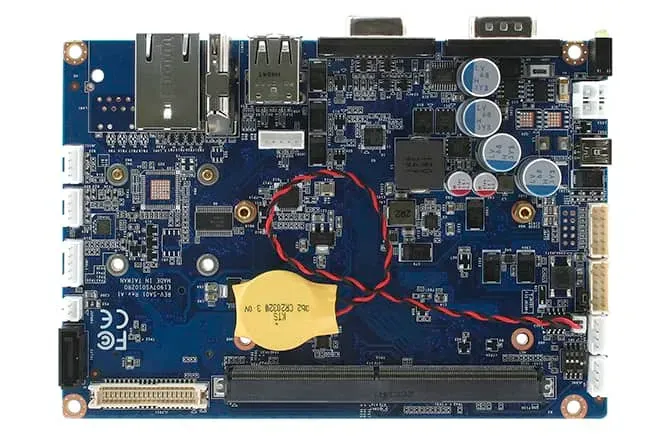

REV-SA01

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

SMARC evaluation / carrier baseboard (146 x 101 mm)
HDMI + VGA outputs
2x RJ45 Ethernet, DB9, 2x CAN bus, RS-232
SATA, SD slot, USB Type-A, Mini-USB
LVDS, backlight & speaker headers, Wolfson WM8962 audio
GPIO, RTC battery
Wide DC 9~36V input (AT)
0~60°C operating
CE, FCC Class B

Product Description

The Avalue REV-SA01 is a SMARC evaluation/carrier baseboard (146 x 101 mm) designed to prototype and validate SMARC compute modules in a compact footprint with a wide DC 9~36V input for vehicular and field use.

It provides HDMI and VGA outputs, dual RJ45, DB9, dual CAN bus, RS-232, SATA, SD slot, USB Type-A, Mini-USB, LVDS, backlight and speaker headers with a Wolfson WM8962 codec — a compact SMARC development platform.

Technical Specifications

Audio Codec

Wolfson WM8962

Certification Information

CE, FCC Class B

External I/O Connector

1 x DB9

1 x HDMI

1 x Mini-USB

2 x RJ45

2 x USB Type A

1 x VGA

Internal I/O Connector

1 x Backlight

2 x CAN BUS

1 x GPIO

1 x LVDS

1 x RS-232

1 x RTC Battery

1 x SATA

1 x SD Slot

1 x Speaker

1 x USB

Operating Temp.

0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-20°C ~ 80°C (-40°F ~ 176°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Weight

0.13kg

Power Requirement

DC 9~36V

Power Mode

Dimension (L x W)

146 x 101 mm

Ordering Information

REV-SA01-03-A1R : REV-SA01-03-A1R

What is REV-SA01?

The REV-SA01 is a computer-on-module manufactured by Avalue, designed specifically for smarc applications. The Avalue REV-SA01 is a SMARC evaluation/carrier baseboard (146 x 101 mm) designed to prototype and validate SMARC compute modules in a compact footprint with a wide DC 9~36V input for vehicular and field use. It provides HDMI and VGA outputs, dual RJ45, DB9, dual CAN bus, RS-232, SATA, SD slot, USB Type-A, Mini-USB, LVDS, backlight and speaker headers with a Wolfson WM8962 codec — a compact SMARC development platform.

Key Features & Benefits

SMARC evaluation / carrier baseboard (146 x 101 mm)
HDMI + VGA outputs
2x RJ45 Ethernet, DB9, 2x CAN bus, RS-232
SATA, SD slot, USB Type-A, Mini-USB
LVDS, backlight & speaker headers, Wolfson WM8962 audio
GPIO, RTC battery
Wide DC 9~36V input (AT)
0~60°C operating
CE, FCC Class B

Applications & Use Cases

The REV-SA01 is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Extreme temperature environments and outdoor installations
Legacy equipment integration and serial communication
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
