Product Datasheet
20 May 2026
Computer-on-Module · SMARC
REV-SA02
Series: REV
Manufactured byAvalue

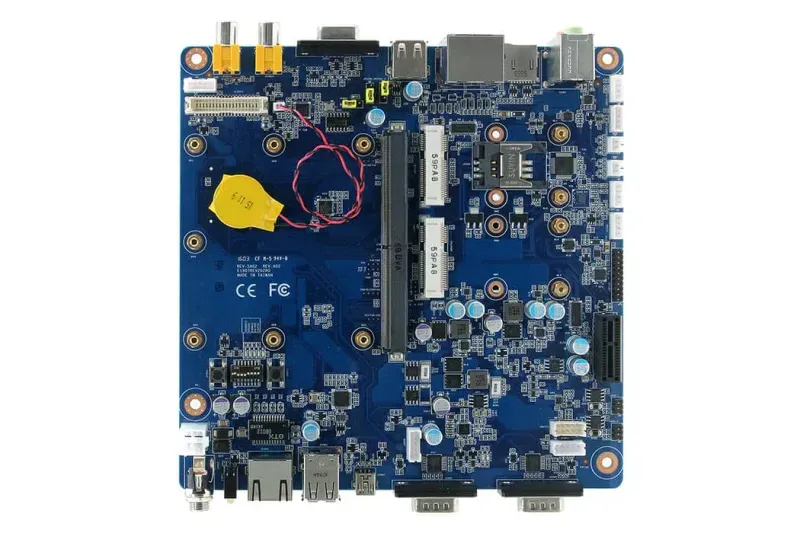

The Avalue REV-SA02 is a SMARC evaluation/carrier baseboard (170 x 170 mm) designed to prototype and validate SMARC compute modules with a rich, industrial I/O complement. It exposes the module's full I/O with legacy and field interfaces over a wide -40~85°C operating range. It provides HDMI, VGA, RJ45, dual RS-232, dual RS-485, dual CAN, dual Mini-PCIe, PCIe, RCA, SD slot, USB 2.0, SIM, DMIC, LVDS and 20x GPIO — a comprehensive SMARC development platform for industrial and AV applications.
Key Features
- SMARC evaluation / carrier baseboard (170 x 170 mm)
- HDMI + VGA outputs, 2x RCA
- RJ45 Ethernet, 2x RS-232, 2x RS-485, 2x CAN
- 2x Mini-PCIe + PCIe, SIM slot
- USB 2.0 Type-A, Mini-USB, SD slot
- LVDS, DMIC, 20x GPIO, I2C
- Power button, power LED, reset
- Wide -40~85°C operating, DC 12V (AT)
- CE, FCC Class B
Technical Specifications
Certification
| Certification Information | CE, FCC Class B |
|---|
I/O
| External I/O Connector | 1 x HDMI, 1 x Mini USB, 1 x Power Button, 1 x Power LED, 2 x RCA, 1 x Reset, 1 x RJ45, 2 x RS232, 1 x SD Slot, 1 x USB 2.0 Type A, 1 x VGA |
|---|---|
| Internal I/O Connector | 2 x CAN, 1 x DMIC, 20 x GPIO, 1 x I2C, 1 x LVDS C, 2 x Mini PCIe, 1 x PCIe, 2 x RS485, 1 x SIM Slot, 1 x Speaker |
Mechanical & Environmental
| Operating Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
|---|---|
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Power Requirement | DC 12V |
| Power Mode | AT |
| Dimension (L x W) | 170 x 170 mm |
Ordering Information
| Ordering Information | REV-SA0200A1R-00 : REV-SA0200A1R-00 |
|---|
