Avalue · Computer-on-Module

REV-SA02

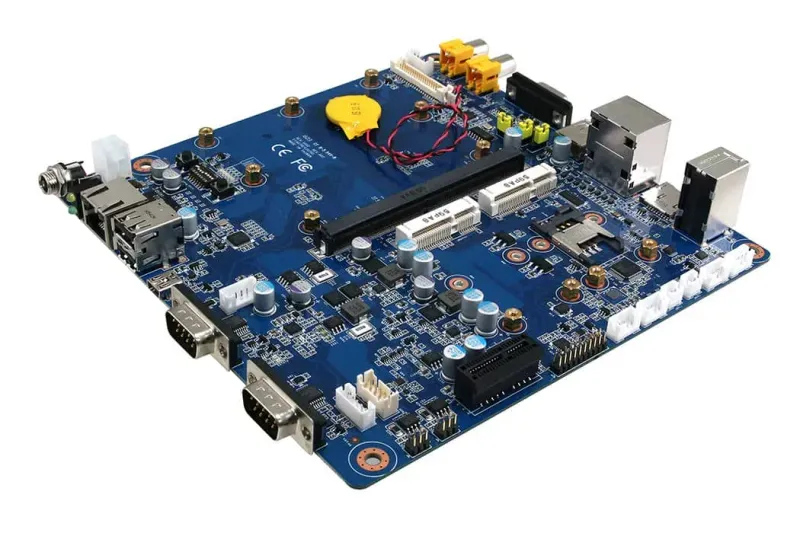

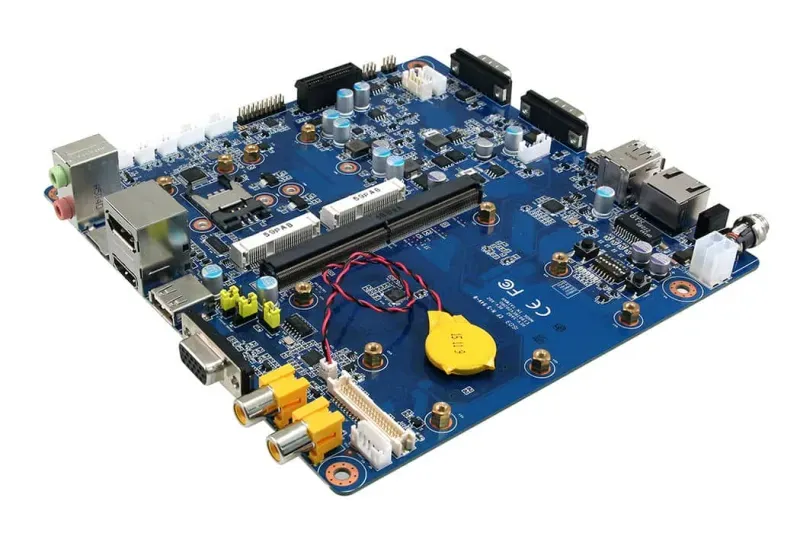

REV-SA02 FrontREV-SA02 FrontREV-SA02 Front
REV-SA02, Image 1REV-SA02, Image 2REV-SA02, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • SMARC evaluation / carrier baseboard (170 x 170 mm)
  • HDMI + VGA outputs, 2x RCA
  • RJ45 Ethernet, 2x RS-232, 2x RS-485, 2x CAN
  • 2x Mini-PCIe + PCIe, SIM slot
  • USB 2.0 Type-A, Mini-USB, SD slot
  • LVDS, DMIC, 20x GPIO, I2C
  • Power button, power LED, reset
  • Wide -40~85°C operating, DC 12V (AT)
  • CE, FCC Class B

Product Description

The Avalue REV-SA02 is a SMARC evaluation/carrier baseboard (170 x 170 mm) designed to prototype and validate SMARC compute modules with a rich, industrial I/O complement.

It exposes the module's full I/O with legacy and field interfaces over a wide -40~85°C operating range.

It provides HDMI, VGA, RJ45, dual RS-232, dual RS-485, dual CAN, dual Mini-PCIe, PCIe, RCA, SD slot, USB 2.0, SIM, DMIC, LVDS and 20x GPIO — a comprehensive SMARC development platform for industrial and AV applications.

Technical Specifications

Certification Information

CE, FCC Class B

External I/O Connector

1 x HDMI

1 x Mini USB

1 x Power Button

1 x Power LED

2 x RCA

1 x Reset

1 x RJ45

2 x RS232

1 x SD Slot

1 x USB 2.0 Type A

1 x VGA

Internal I/O Connector

2 x CAN

1 x DMIC

20 x GPIO

1 x I2C

1 x LVDS C

2 x Mini PCIe

1 x PCIe

2 x RS485

1 x SIM Slot

1 x Speaker

Operating Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Power Requirement

DC 12V

Power Mode

AT

Dimension (L x W)

170 x 170 mm

Ordering Information

REV-SA0200A1R-00 : REV-SA0200A1R-00

What is REV-SA02?

The REV-SA02 is a computer-on-module manufactured by Avalue, designed specifically for smarc applications. The Avalue REV-SA02 is a SMARC evaluation/carrier baseboard (170 x 170 mm) designed to prototype and validate SMARC compute modules with a rich, industrial I/O complement. It exposes the module's full I/O with legacy and field interfaces over a wide -40~85°C operating range. It provides HDMI, VGA, RJ45, dual RS-232, dual RS-485, dual CAN, dual Mini-PCIe, PCIe, RCA, SD slot, USB 2.0, SIM, DMIC, LVDS and 20x GPIO — a comprehensive SMARC development platform for industrial and AV applications.
