Avalue · Computer-on-Module

REV-SA03

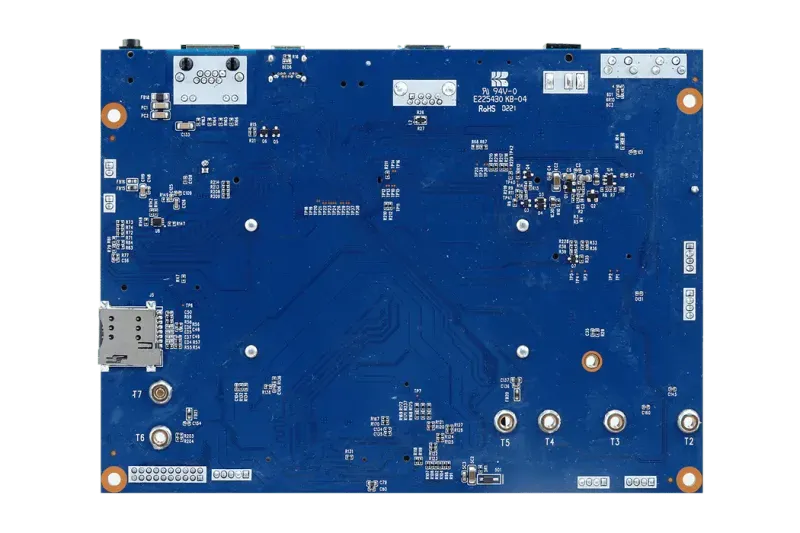

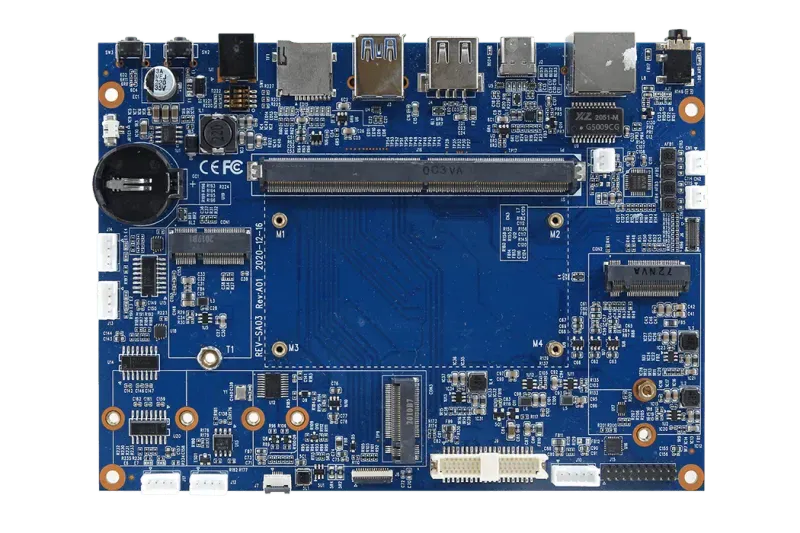

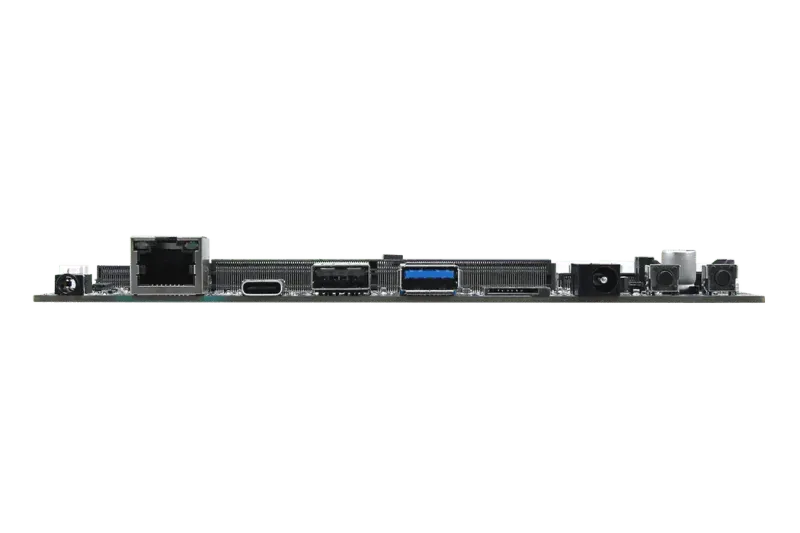

REV-SA03 FrontREV-SA03 FrontREV-SA03 Front

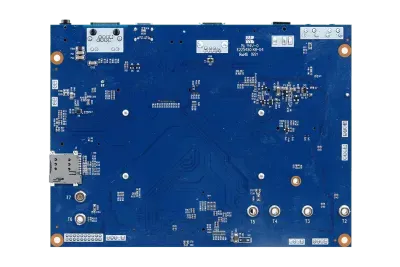

REV-SA03, Image 1REV-SA03, Image 2REV-SA03, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • SMARC evaluation / carrier baseboard (165 x 120 mm)
  • For SMA-X8I and compatible SMARC modules
  • M.2 3042 B-Key + M.2 2230 E-Key sockets
  • LVDS, MIPI DSI, MIPI CSI
  • USB 2.0 / USB 3.0 Type-A + USB Type-C
  • Micro-SD slot, SIM slot, WM8960 audio
  • CAN, I2C, 2x UART, backlight & speaker headers
  • Wide -40~85°C operating, DC 12V (AT)
  • CE, FCC Class B

Product Description

The Avalue REV-SA03 is a SMARC evaluation/carrier baseboard (165 x 120 mm) designed to prototype and validate SMARC compute modules such as the SMA-X8I.

It exposes the module's full I/O with M.2 expansion and a wide -40~85°C operating range.

It provides M.2 3042 B-Key and M.2 2230 E-Key sockets, LVDS, MIPI DSI/CSI, CAN, I2C, dual UART, USB 2.0/3.0/Type-C, Micro-SD, SIM, WM8960 audio, backlight and speaker headers — a rugged SMARC development platform.

Technical Specifications

Audio Codec

WM8960

Certification Information

CE, FCC Class B

External I/O Connector

1 x DC Jack

1 x Headphone Jack

1 x Micro SD Slot

1 x Power Key

1 x Reset Key

1 x SIM Slot

1 x USB 2.0 Type A

1 x USB 3.0 Type A

1 x USB Type C

Internal I/O Connector

1 x BackLight

1 x CAN

1 x GPIO

1 x I2C

1 x LVDS

1 x M.2 3042 B-Key

1 x M.2 2230 E-Key

1 x MIPI CSI

1 x MIPI DSI

1 x RTC-Battery

1 x Speaker

2 x UART

Operating Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Weight

0.13kg

Power Requirement

DC 12V

Power Mode

AT

Dimension (L x W)

165 x 120 mm

Ordering Information

REV-SA03-A3-00R : REV-SA03-A3-00R

What is REV-SA03?

The REV-SA03 is a computer-on-module manufactured by Avalue, designed specifically for smarc applications. The Avalue REV-SA03 is a SMARC evaluation/carrier baseboard (165 x 120 mm) designed to prototype and validate SMARC compute modules such as the SMA-X8I. It exposes the module's full I/O with M.2 expansion and a wide -40~85°C operating range. It provides M.2 3042 B-Key and M.2 2230 E-Key sockets, LVDS, MIPI DSI/CSI, CAN, I2C, dual UART, USB 2.0/3.0/Type-C, Micro-SD, SIM, WM8960 audio, backlight and speaker headers — a rugged SMARC development platform.

Key Features & Benefits

  • SMARC evaluation / carrier baseboard (165 x 120 mm)
  • For SMA-X8I and compatible SMARC modules
  • M.2 3042 B-Key + M.2 2230 E-Key sockets
  • LVDS, MIPI DSI, MIPI CSI
  • USB 2.0 / USB 3.0 Type-A + USB Type-C
  • Micro-SD slot, SIM slot, WM8960 audio
  • CAN, I2C, 2x UART, backlight & speaker headers
  • Wide -40~85°C operating, DC 12V (AT)
  • CE, FCC Class B

Applications & Use Cases

The REV-SA03 is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Peripheral device connectivity and data transfer
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
