AIB-3588

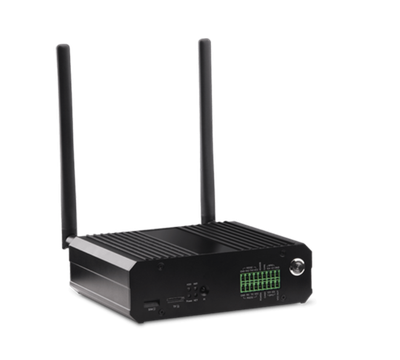

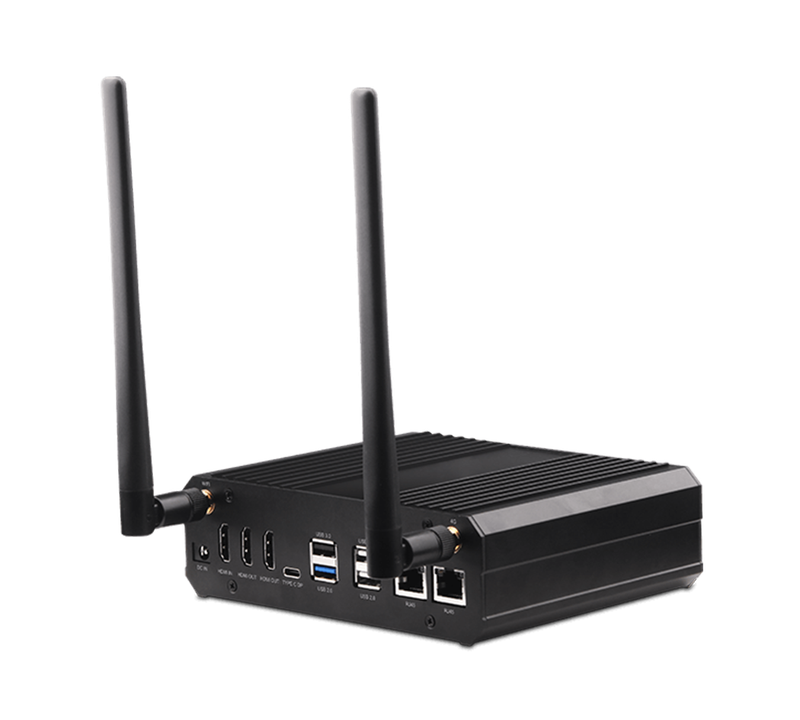

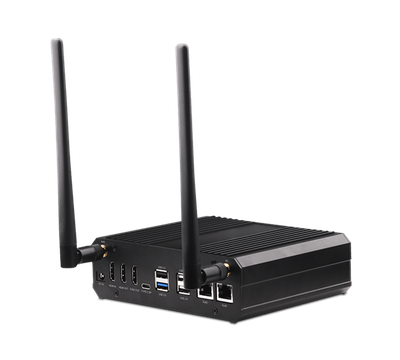

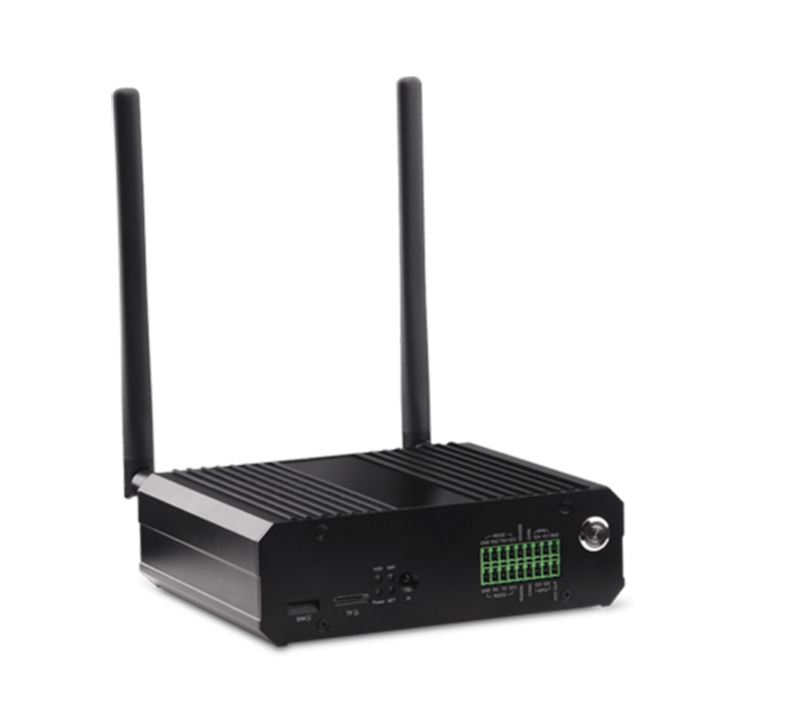

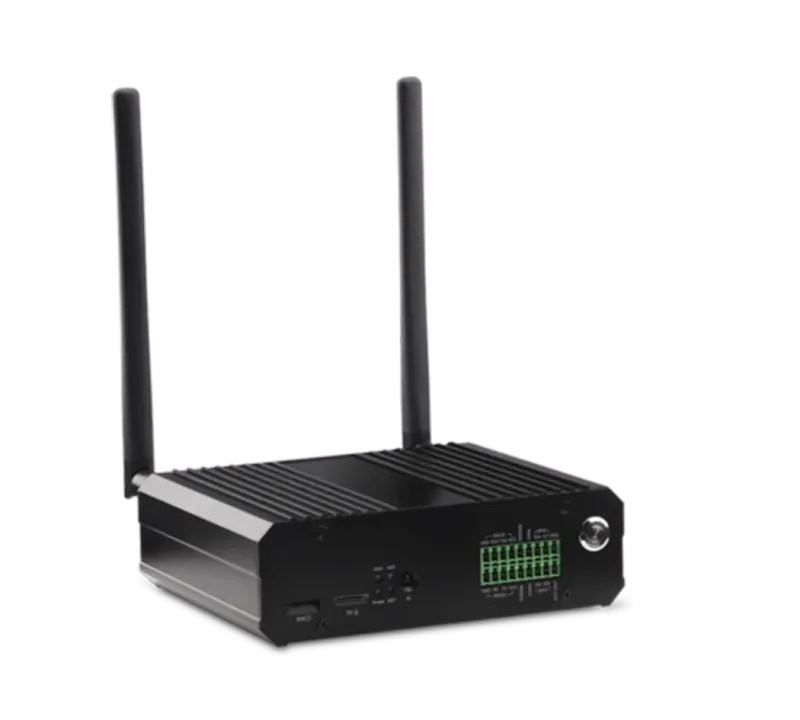

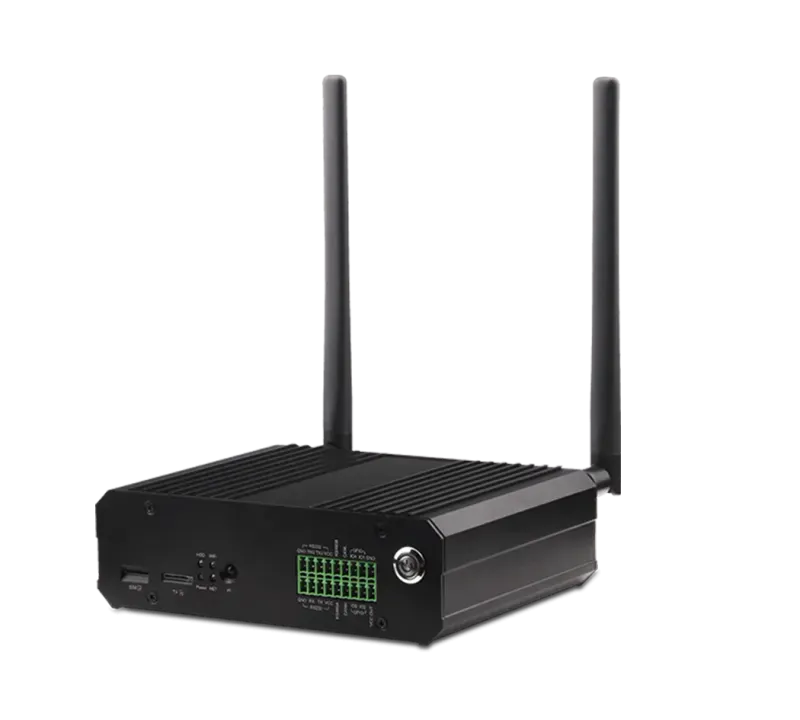

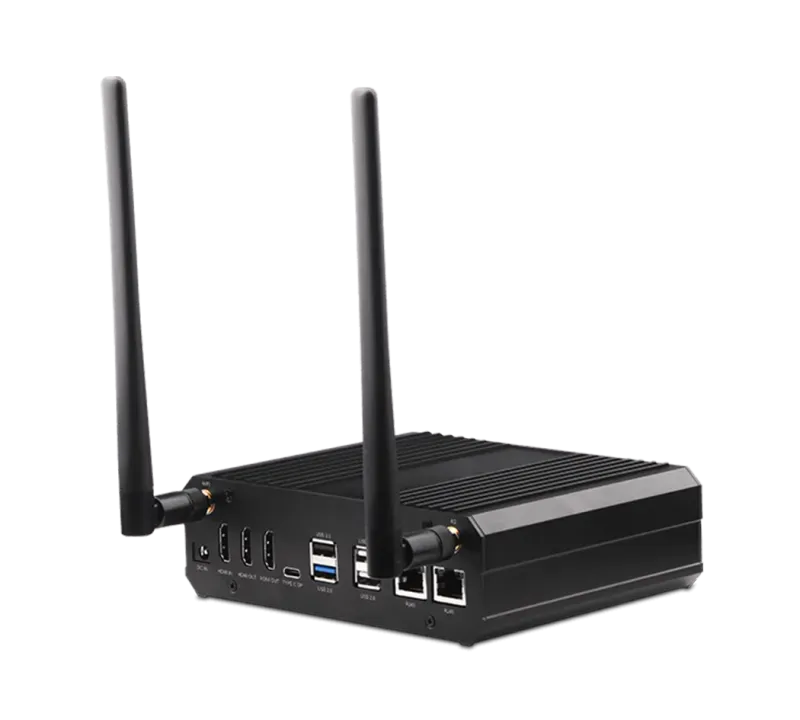

AIB-3588 FrontAIB-3588 FrontAIB-3588 Front
AIB-3588 — Image 1AIB-3588 — Image 2AIB-3588 — Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • RK3588 octa-core 64-bit (A76+A55) processor with integrated 6Tops NPU.
  • Supports up to 32GB RAM, 8~128GB eMMC optional, customizable based on customer needs.
  • supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding.
  • Seamless connectivity: Gigabit Ethernet, WiFi6, Bluetooth, 5G/4G LTE.(option)
  • Built-in HDMI®, GPIO, CAN, RS485, USB2.0/3.0, RS232, and more.
  • Industrial-grade design for stable 24/7 operation in a temperature range (0~50°C).

Product Description

The Avalue AIB-3588 is a high-performance ARM-based embedded computing system built around the Rockchip RK3588 octa-core 64-bit CPU with quad Cortex-A76 and quad Cortex-A55 cores, delivering strong processing and AI performance.

Supporting up to 32 GB of RAM and 8–128 GB eMMC storage, it enables advanced edge computing, AI inference and multimedia tasks with integrated 6 TOPS NPU and Mali-G610 MP4 GPU.

The system offers extensive connectivity including Gigabit Ethernet, Wi-Fi6, Bluetooth, CAN, RS-485, RS-232, USB 2.0/3.0 and HDMI interfaces, making it suitable for industrial automation, AI-enhanced solutions, smart retail, transportation, and smart city applications.

Designed for industrial reliability with stable 24/7 operation, this embedded computer is a versatile platform for next-generation edge AI and IoT deployments.

Technical Specifications

System Information

Processor

Rockchip RK3588, Quad-core Cortex-A76 and Quad-core Cortex-A55

System Memory

4GB & 8GB 64bit LPDDR4

GPU

Mali-G610 MP4 quad-core GPU

OpenGL ES 1.1/2.0/3.1/3.2、Vulkan 1.1、OpenCL 2.2，450 GFLOPS

Storage

SD Card

x1

eMMC

8GB & 16GB eMMC

Extended I/O interface

Extended I/O interface

1 infrared remote control receiver, × 1 DC 5V voltage output, × 1 DC 3.3V voltage output

I/O

USB Port

1 x USB Host3.0，2 x USB Host2.0 , 1 x USB OTG 2.0

RS232

× 1 ±5~±15V

RS485

× 1 TIA485/EIA-485-A -7~+12V（Phoenix

CAN

× 1 ISO11898-2:2016 and SAE J2284-1 to SAE J2284-5ESD保护(8kV IEC and HBM) 5Mbit/s（Phoenix）

GPIO

× 4 3.3V level ±15KV (air) ±10KV (contact)（Phoenix）

TTL

× 1 3.3V level ±15KV (air) ±10KV (contact)（Phoenix）

SIM

× 1 Micro SIM Card

LED

× 4 Power, Ethernet network, WiFi, 4G

Network

Ethernet

Support 1000/100/10 Mbps transmission speeds

WiFi

support 2.4GHz, 5GHz dual-band WiFi, 802.11 a/b/g/n/ac (802.11ax optional) protocols

Support Bluetooth 4.0 wireless technology (BLE support)(Optional)

2G/3G/4G/LTE

LTE for EU、LTE for AU、LTE for US(Optional)

Video Output

HDMI® Output

2 x HDMI®2.1 4K

Video Input

HDMI® Input

2 x HDMI®2.1 4K

Power Requirement

DC Input Voltage

DC Input Voltage 12V(DC5.5 × 2.1mm)

Power wastage

Standby power consumption: approx. 0.42W (12V/35mA)

Typical power consumption: approx. 2.25W (12V/190mA)

Maximum power consumption: approx. 12W (12V/1000mA)

Software Support

OS

Android13.0 (first)

Mechanical & Environmental

Operating Temp

0~50°C

Storage Temp.

0~50°C

Operating Humidity

10%~90%

Dimension (W x L x H)

160mm×125.5mm×48mm

What is AIB-3588?

The AIB-3588 is a computing system manufactured by Avalue, designed specifically for arm-based-system applications. The Avalue AIB-3588 is a high-performance ARM-based embedded computing system built around the Rockchip RK3588 octa-core 64-bit CPU with quad Cortex-A76 and quad Cortex-A55 cores, delivering strong processing and AI performance. Supporting up to 32 GB of RAM and 8–128 GB eMMC storage, it enables advanced edge computing, AI inference and multimedia tasks with integrated 6 TOPS NPU and Mali-G610 MP4 GPU. The system offers extensive connectivity including Gigabit Ethernet, Wi-Fi6, Bluetooth, CAN, RS-485, RS-232, USB 2.0/3.0 and HDMI interfaces, making it suitable for industrial automation, AI-enhanced solutions, smart retail, transportation, and smart city applications. Designed for industrial reliability with stable 24/7 operation, this embedded computer is a versatile platform for next-generation edge AI and IoT deployments.

Key Features & Benefits

  • RK3588 octa-core 64-bit (A76+A55) processor with integrated 6Tops NPU.
  • Supports up to 32GB RAM, 8~128GB eMMC optional, customizable based on customer needs.
  • supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding.
  • Seamless connectivity: Gigabit Ethernet, WiFi6, Bluetooth, 5G/4G LTE.(option)
  • Built-in HDMI®, GPIO, CAN, RS485, USB2.0/3.0, RS232, and more.
  • Industrial-grade design for stable 24/7 operation in a temperature range (0~50°C).

Applications & Use Cases

The AIB-3588 is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • Wireless connectivity and remote monitoring applications
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Industrial reliability with stable 24/7 operation
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
