Computing System · ARM-based-System
AIB-3588
Series: AIB

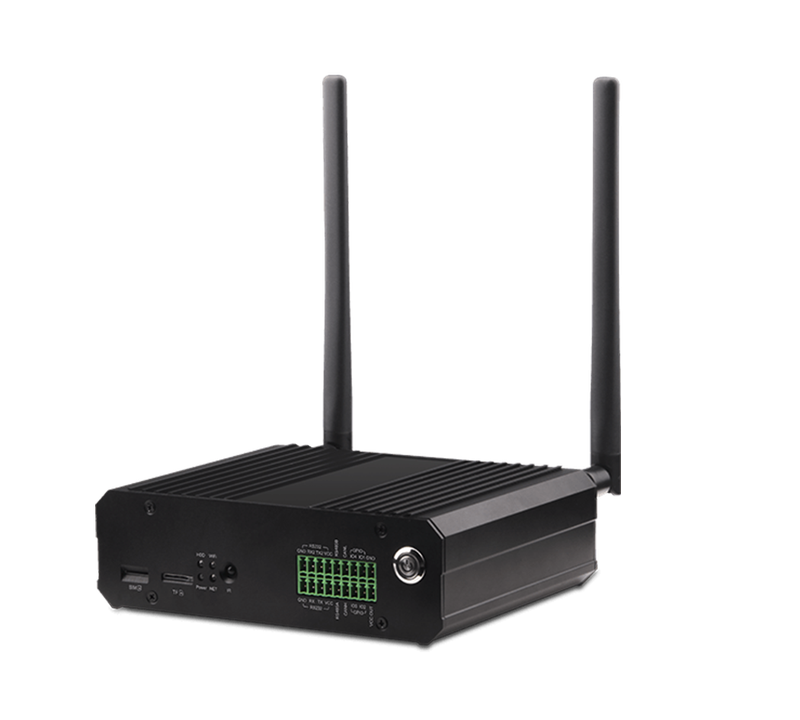

The Avalue AIB-3588 is a high-performance ARM-based embedded computing system built around the Rockchip RK3588 octa-core 64-bit CPU with quad Cortex-A76 and quad Cortex-A55 cores, delivering strong processing and AI performance. Supporting up to 32 GB of RAM and 8–128 GB eMMC storage, it enables advanced edge computing, AI inference and multimedia tasks with integrated 6 TOPS NPU and Mali-G610 MP4 GPU. The system offers extensive connectivity including Gigabit Ethernet, Wi-Fi6, Bluetooth, CAN, RS-485, RS-232, USB 2.0/3.0 and HDMI interfaces, making it suitable for industrial automation, AI-enhanced solutions, smart retail, transportation, and smart city applications. Designed for industrial reliability with stable 24/7 operation, this embedded computer is a versatile platform for next-generation edge AI and IoT deployments.
Key Features
- RK3588 octa-core 64-bit (A76+A55) processor with integrated 6Tops NPU.
- Supports up to 32GB RAM, 8~128GB eMMC optional, customizable based on customer needs.
- supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding.
- Seamless connectivity: Gigabit Ethernet, WiFi6, Bluetooth, 5G/4G LTE.(option)
- Built-in HDMI®, GPIO, CAN, RS485, USB2.0/3.0, RS232, and more.
- Industrial-grade design for stable 24/7 operation in a temperature range (0~50°C).
Technical Specifications
System Information
| Processor | Rockchip RK3588, Quad-core Cortex-A76 and Quad-core Cortex-A55 |
|---|---|
| System Memory | 4GB & 8GB 64bit LPDDR4 |
| GPU | Mali-G610 MP4 quad-core GPU, OpenGL ES 1.1/2.0/3.1/3.2、Vulkan 1.1、OpenCL 2.2，450 GFLOPS |
Storage
| SD Card | x1 |
|---|---|
| eMMC | 8GB & 16GB eMMC |
Extended I/O interface
| Extended I/O interface | 1 infrared remote control receiver, × 1 DC 5V voltage output, × 1 DC 3.3V voltage output |
|---|
I/O
| USB Port | 1 x USB Host3.0，2 x USB Host2.0 , 1 x USB OTG 2.0 |
|---|---|
| RS232 | × 1 ±5~±15V |
| RS485 | × 1 TIA485/EIA-485-A -7~+12V（Phoenix |
| CAN | × 1 ISO11898-2:2016 and SAE J2284-1 to SAE J2284-5ESD保护(8kV IEC and HBM) 5Mbit/s（Phoenix） |
| GPIO | × 4 3.3V level ±15KV (air) ±10KV (contact)（Phoenix） |
| TTL | × 1 3.3V level ±15KV (air) ±10KV (contact)（Phoenix） |
| SIM | × 1 Micro SIM Card |
| LED | × 4 Power, Ethernet network, WiFi, 4G |
Network
| Ethernet | Support 1000/100/10 Mbps transmission speeds |
|---|---|
| WiFi | support 2.4GHz, 5GHz dual-band WiFi, 802.11 a/b/g/n/ac (802.11ax optional) protocols, Support Bluetooth 4.0 wireless technology (BLE support)(Optional) |
| 2G/3G/4G/LTE | LTE for EU、LTE for AU、LTE for US(Optional) |
Video Output
| HDMI® Output | 2 x HDMI®2.1 4K |
|---|
Video Input
| HDMI® Input | 2 x HDMI®2.1 4K |
|---|
Power Requirement
| DC Input Voltage | DC Input Voltage 12V(DC5.5 × 2.1mm) |
|---|---|
| Power wastage | Standby power consumption: approx. 0.42W (12V/35mA), Typical power consumption: approx. 2.25W (12V/190mA), Maximum power consumption: approx. 12W (12V/1000mA) |
Software Support
| OS | Android13.0 (first) |
|---|
Mechanical & Environmental
| Operating Temp | 0~50°C |
|---|---|
| Storage Temp. | 0~50°C |
| Operating Humidity | 10%~90% |
| Dimension (W x L x H) | 160mm×125.5mm×48mm |
