AIB-Q6490

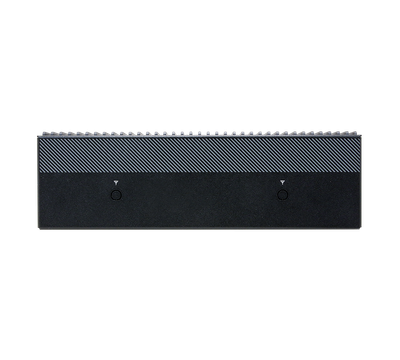

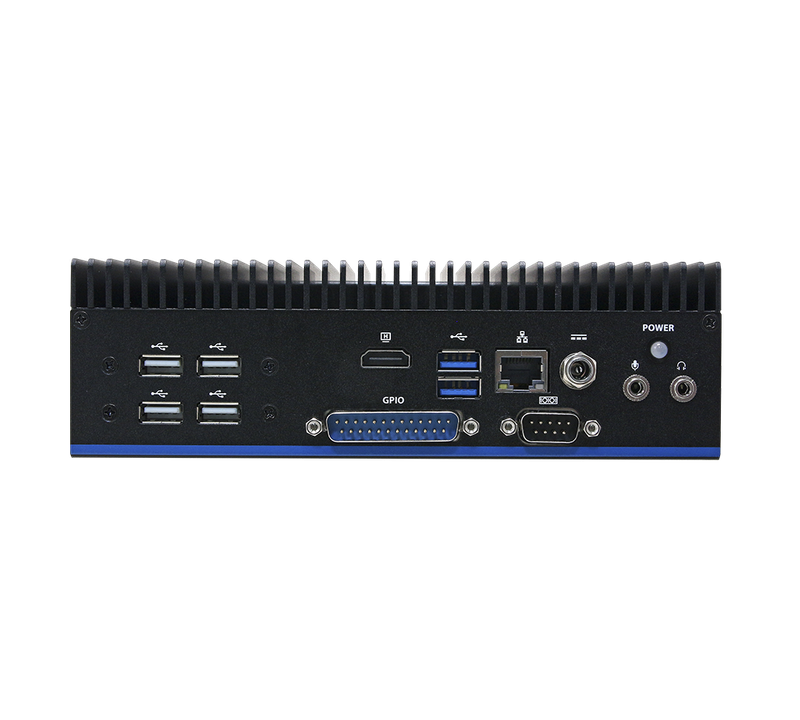

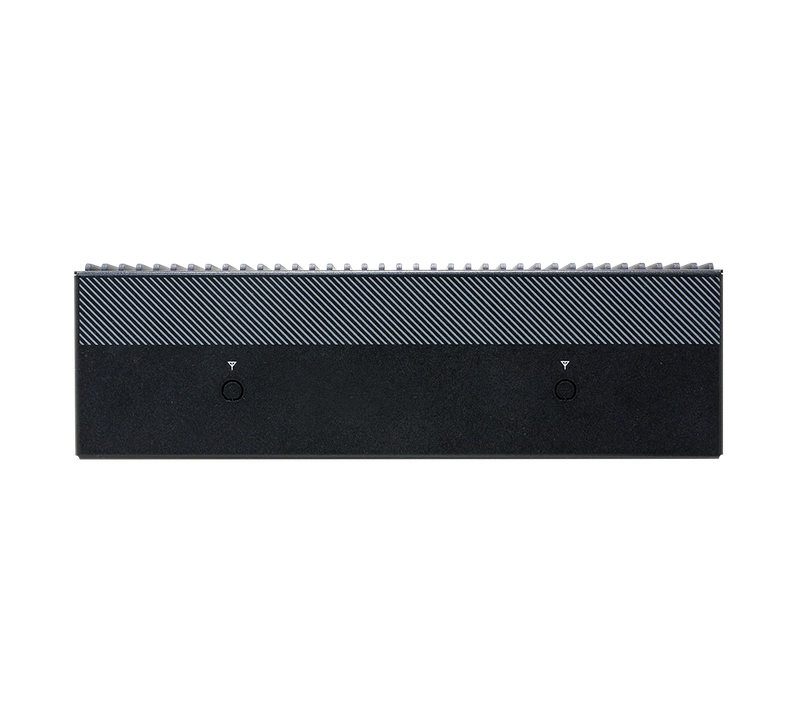

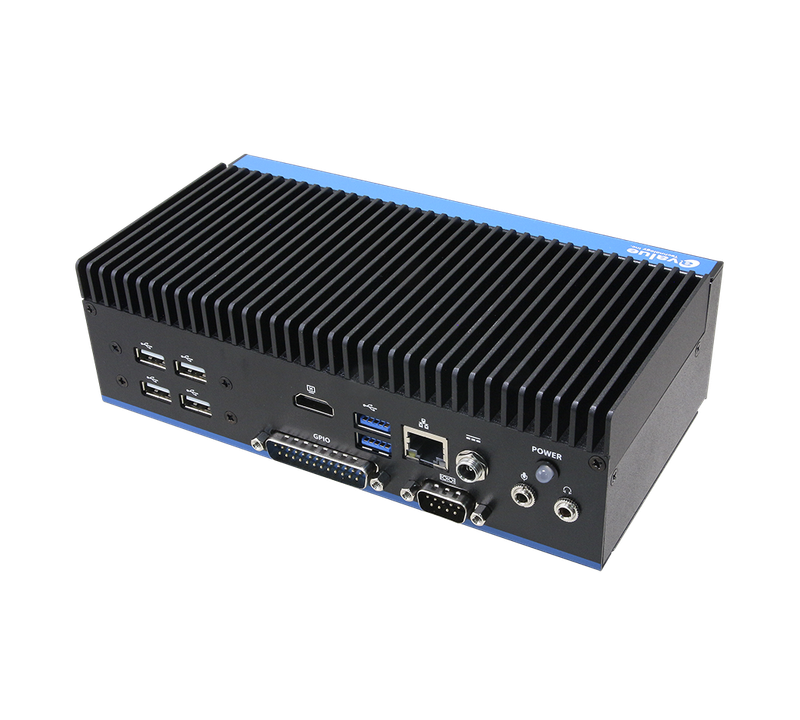

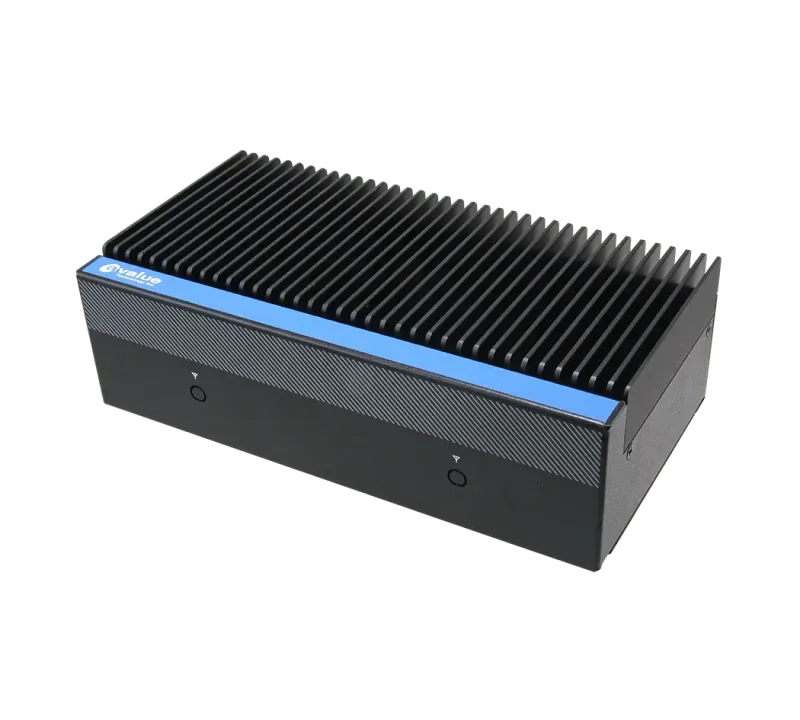

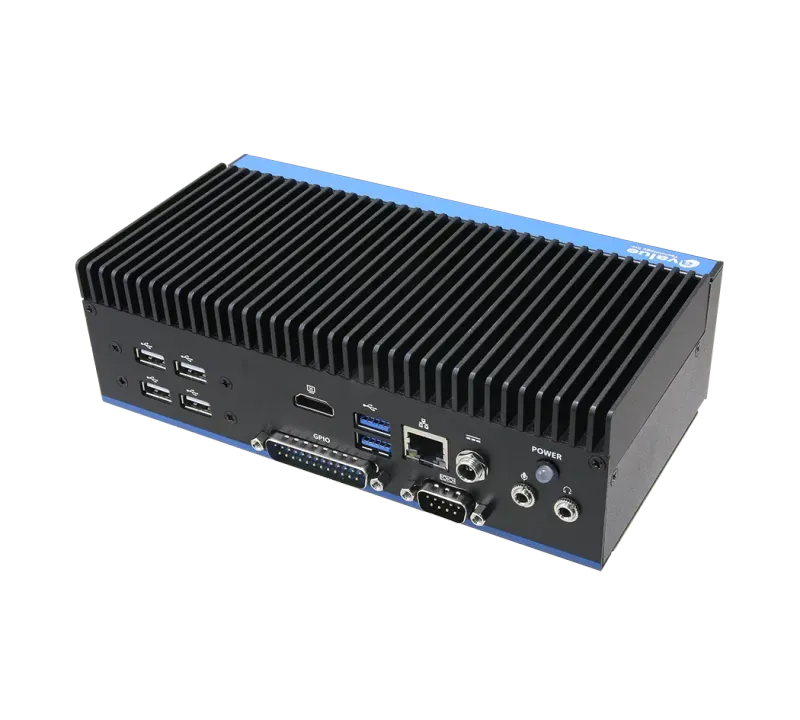

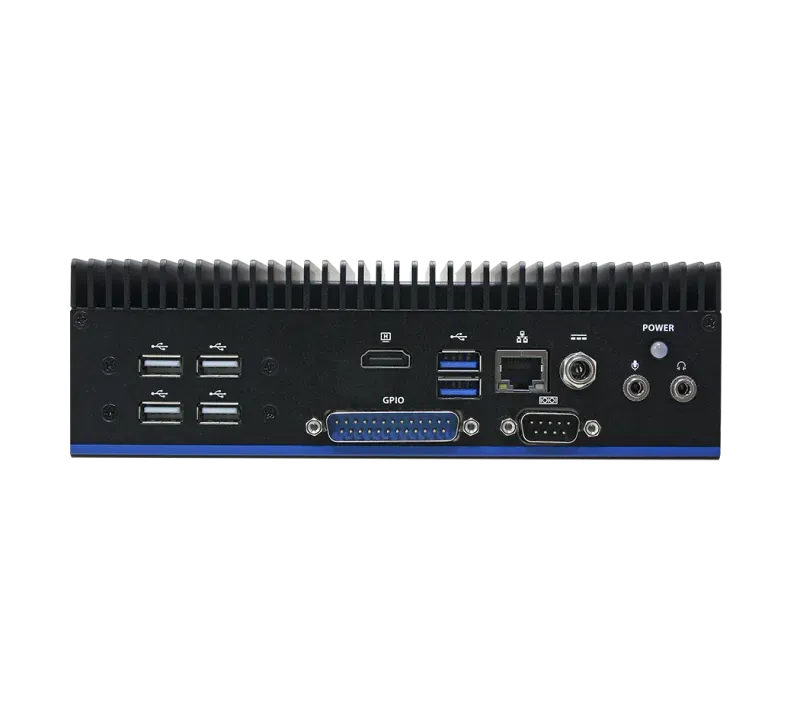

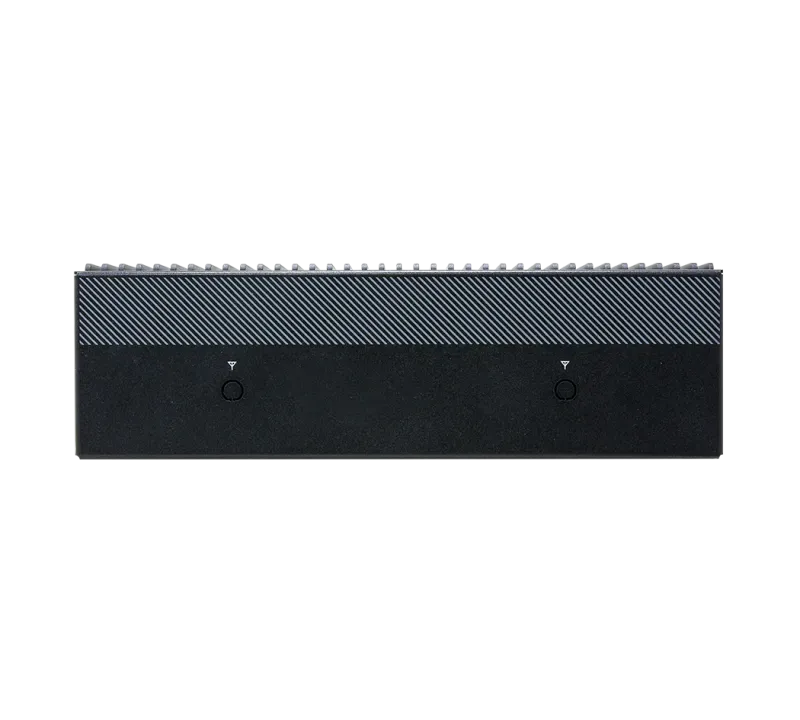

AIB-Q6490 FrontAIB-Q6490 FrontAIB-Q6490 FrontAIB-Q6490 Front

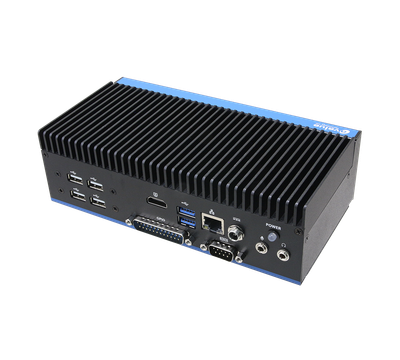

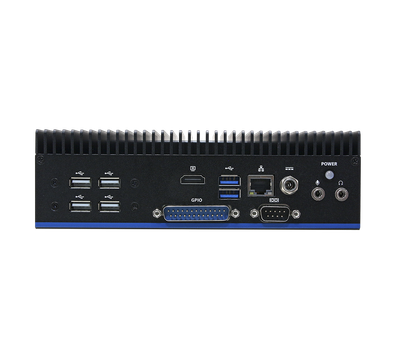

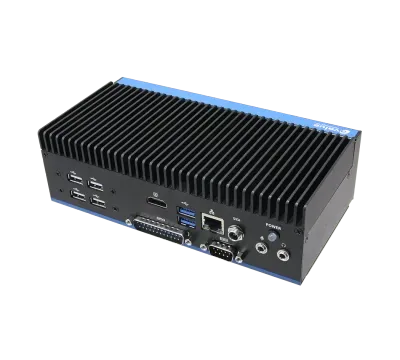

AIB-Q6490, Image 1AIB-Q6490, Image 2AIB-Q6490, Image 3AIB-Q6490, Image 4
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Product Description

The Avalue AIB-Q6490 is a high-performance ARM-based embedded computing system powered by the Qualcomm QCS6490 Kryo 670 octa-core processor, delivering up to 2.7 GHz peak speed and 12 TOPS AI performance.

It comes with LPDDR4 memory (8 GB default, optional 4 GB/16 GB) and UFS 3.1 storage (128 GB default).

The system offers a rich set of interfaces including GbE network, HDMI, USB, serial (RS-232/RS-485), GPIO, Wi-Fi 802.11ax and expansion via M.2, making it ideal for industrial, IoT, smart city and edge computing applications.

With support for multiple operating systems such as Linux, Android and Windows on demand, and rugged operating temperature range from -20 °C to 60 °C, the AIB-Q6490 delivers reliable low-power performance for embedded automation and intelligent systems.

Technical Specifications

Processor

QCS6490

Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8)

System Memory

LPDDR4, 8GB (optional 4GB/16GB)

M.2

1 x M.2 B key 3052 (USB3.1) reference RM520N-GL Quectel

Nano SIM slot

1 x Nano SIM slot (push and pull)

UFS

Support UFS 3.1, default 128GB

Network

1 x GbE (RJ-45)

HDMI

1x HDMI

Audio

1x Mic in, 1x Speaker

Antenna

2x Antenna Holes

LED Indicator

1 x PWR LED

USB

2 x USB 3.1 Gen1 Type A

Serial

1 x RS-232/RS485 (RX, TX, RTS, CTS) (DB9)

GPIO

1 x 16-bit DIO

USB Port

4x USB 2.0 , 1xUSB 3 type C (download only)

WI-FI

802.11 ax

LED

1 x Power LED, 1 x System LED

I2C

1 x I2C

SD

1 x uSD3.0 card

Debug

UART (TX,RX)

DC Input Connector

DC jack

Power Requirement

DC 12V

OS

Linux, Andriod , Windows(by demand)

Certification Information

CE, FCC, RoHS

Operating Temp

-20°C~60°C

Storage Temp.

-40 to 85°C

Dimension (W x L x H)

TBD

Mounting Kit

DIN Rail Mount

Structure

Sheet Metal

Fan Connector (option) (TBD)

What is AIB-Q6490?

The AIB-Q6490 is a computing system manufactured by Avalue, designed specifically for arm-based-system applications. It features processor of QCS6490, Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8), memory of LPDDR4, 8GB (optional 4GB/16GB) and storage of -40 to 85°C. The Avalue AIB-Q6490 is a high-performance ARM-based embedded computing system powered by the Qualcomm QCS6490 Kryo 670 octa-core processor, delivering up to 2.7 GHz peak speed and 12 TOPS AI performance. It comes with LPDDR4 memory (8 GB default, optional 4 GB/16 GB) and UFS 3.1 storage (128 GB default). The system offers a rich set of interfaces including GbE network, HDMI, USB, serial (RS-232/RS-485), GPIO, Wi-Fi 802.11ax and expansion via M.2, making it ideal for industrial, IoT, smart city and edge computing applications. With support for multiple operating systems such as Linux, Android and Windows on demand, and rugged operating temperature range from -20 °C to 60 °C, the AIB-Q6490 delivers reliable low-power performance for embedded automation and intelligent systems.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The AIB-Q6490 is ideal for various industrial automation applications:

  • Internet of Things (IoT) and edge computing
  • Industrial computing and data processing
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
