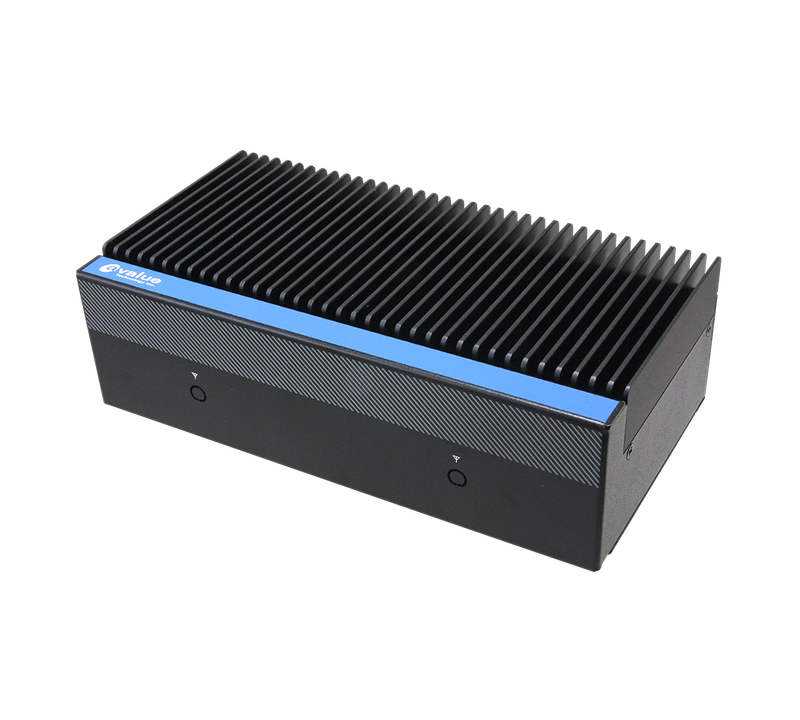

AIB-Q6490

Series: AIB

Manufactured byAvalue

The Avalue AIB-Q6490 is a high-performance ARM-based embedded computing system powered by the Qualcomm QCS6490 Kryo 670 octa-core processor, delivering up to 2.7 GHz peak speed and 12 TOPS AI performance. It comes with LPDDR4 memory (8 GB default, optional 4 GB/16 GB) and UFS 3.1 storage (128 GB default). The system offers a rich set of interfaces including GbE network, HDMI, USB, serial (RS-232/RS-485), GPIO, Wi-Fi 802.11ax and expansion via M.2, making it ideal for industrial, IoT, smart city and edge computing applications. With support for multiple operating systems such as Linux, Android and Windows on demand, and rugged operating temperature range from -20 °C to 60 °C, the AIB-Q6490 delivers reliable low-power performance for embedded automation and intelligent systems.

Technical Specifications

System Information

Processor	QCS6490, Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8)
System Memory	LPDDR4, 8GB (optional 4GB/16GB)

Expansion

M.2	1 x M.2 B key 3052 (USB3.1) reference RM520N-GL Quectel
Nano SIM slot	1 x Nano SIM slot (push and pull)

Storage

UFS	Support UFS 3.1, default 128GB

Front I/O

Network	1 x GbE (RJ-45)
HDMI	1x HDMI
Audio	1x Mic in, 1x Speaker
Antenna	2x Antenna Holes
LED Indicator	1 x PWR LED
USB	2 x USB 3.1 Gen1 Type A
Serial	1 x RS-232/RS485 (RX, TX, RTS, CTS) (DB9)
GPIO	1 x 16-bit DIO

I/O

USB Port	4x USB 2.0 , 1xUSB 3 type C (download only)
WI-FI	802.11 ax
LED	1 x Power LED, 1 x System LED
I2C	1 x I2C
SD	1 x uSD3.0 card
Debug	UART (TX,RX)

Power Requirement

DC Input Connector	DC jack
Power Requirement	DC 12V

Software Support

OS	Linux, Andriod , Windows(by demand)

Certification

Certification Information	CE, FCC, RoHS

Mechanical & Environmental

Operating Temp	-20°C~60°C
Storage Temp.	-40 to 85°C
Dimension (W x L x H)	TBD
Mounting Kit	DIN Rail Mount
Structure	Sheet Metal, Fan Connector (option) (TBD)

Certifications

FCCCertified

CECertified

UKCACertified

RoHSCompliant
