AIB-ROCK28

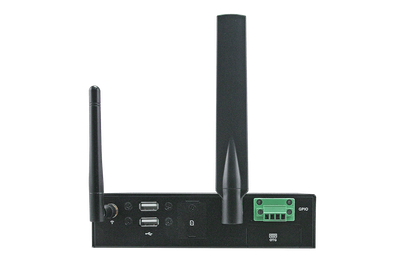

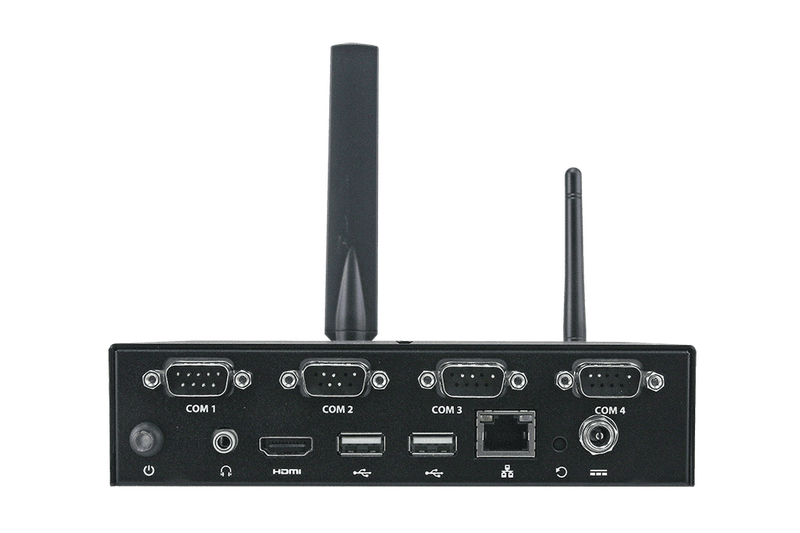

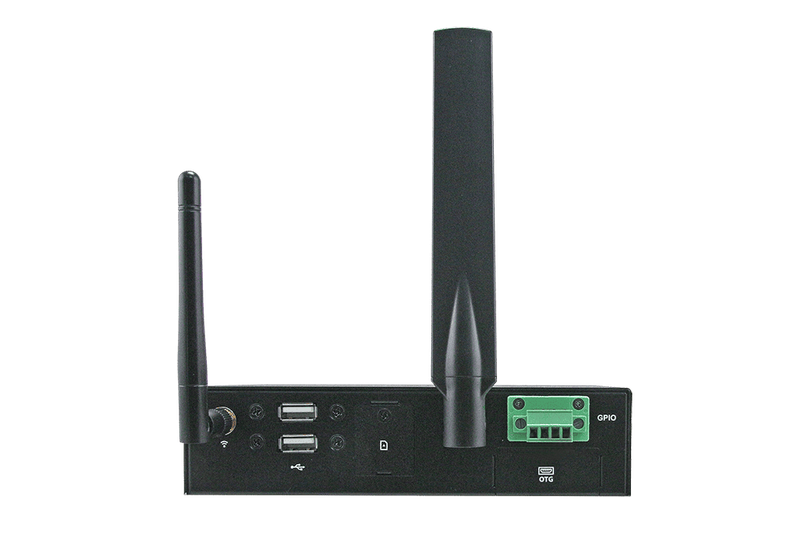

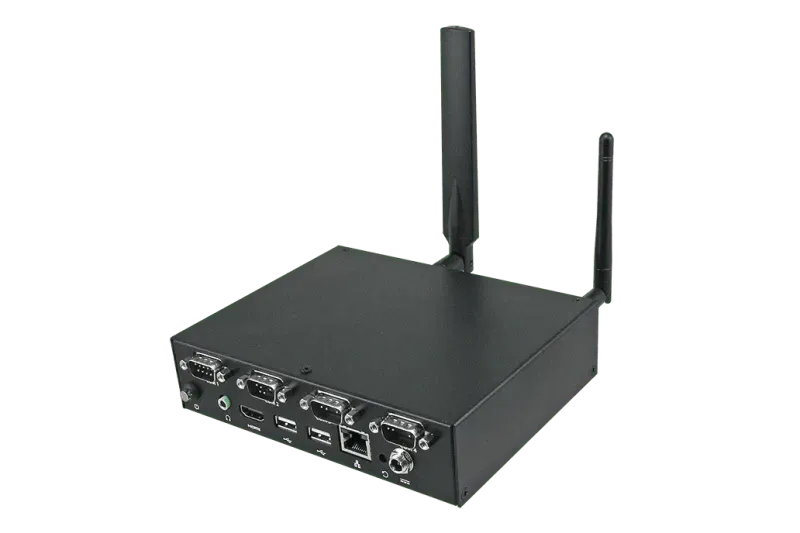

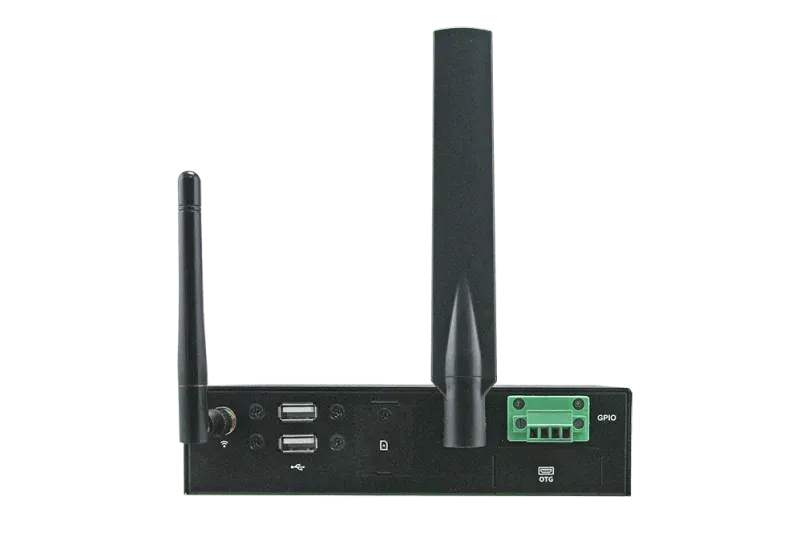

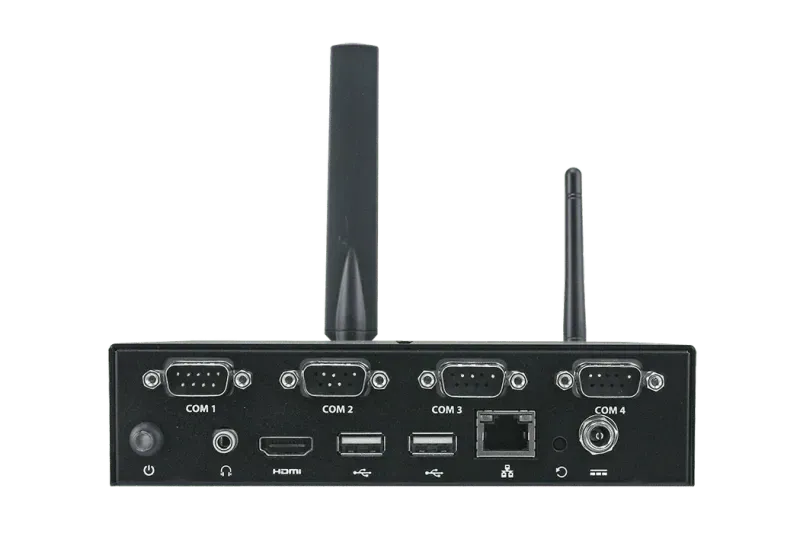

AIB-ROCK28 FrontAIB-ROCK28 FrontAIB-ROCK28 Front
AIB-ROCK28 — Image 1AIB-ROCK28 — Image 2AIB-ROCK28 — Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • AIB-ROCK28
  • 8GB eMMC
  • CE, FCC

Product Description

The Avalue AIB-ROCK28 is an ARM-based embedded box PC built around the Rockchip RK3288W processor, offering robust performance for industrial and embedded applications.

Featuring 2GB DDR3 memory, 16GB eMMC storage, and versatile I/O including Gigabit LAN, HDMI, USB, RS-232/RS-485 serial, micro SD and Wi-Fi connectivity, it supports flexible deployment in automation, digital signage, kiosks, and IoT systems.

The system runs Android 8.1 or Debian 9 and operates on a wide 12–24 V DC power input, making it well suited for industrial, commercial, and embedded environments requiring reliable, continuous operation.

Technical Specifications

System Information

Processor

RockChip RK3288W

Platform Controller Hub

RockChip RK3288W

System Memory

2GB DDR3

SBC

RockChip RK3288W

Storage

eMMC

16GB eMMC

External I/O Connector

External I/O Connector

1 x 10/100/1000 RJ45 Powered LAN

1 x HDMI

1 x M.2 3042 B-Key

1 x Micro SD slot

3 x RS232

1 x RS485

1 x Reset

4 x USB 2.0 Type A

1 x Wifi 802.11 b/g/n

Power Requirement

Power Requirement

DC 12~24V

Software Support

OS

Android 8.1 , Debian 9

Certification

Certification Information

CE, FCC Class B

Mechanical & Environmental

Operating Temp

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Dimension (W x L x H)

200 x 110 x 43.8 mm

Weight

0.71 kg

Ordering Information

Ordering Information

AIB-ROCK28-A11-1R : AIB-ROCK28-A11-1R

What is AIB-ROCK28?

The AIB-ROCK28 is a computing system manufactured by Avalue, designed specifically for arm-based-system applications. The Avalue AIB-ROCK28 is an ARM-based embedded box PC built around the Rockchip RK3288W processor, offering robust performance for industrial and embedded applications. Featuring 2GB DDR3 memory, 16GB eMMC storage, and versatile I/O including Gigabit LAN, HDMI, USB, RS-232/RS-485 serial, micro SD and Wi-Fi connectivity, it supports flexible deployment in automation, digital signage, kiosks, and IoT systems. The system runs Android 8.1 or Debian 9 and operates on a wide 12–24 V DC power input, making it well suited for industrial, commercial, and embedded environments requiring reliable, continuous operation.

Key Features & Benefits

  • AIB-ROCK28
  • 8GB eMMC
  • CE, FCC

Applications & Use Cases

The AIB-ROCK28 is ideal for various industrial automation applications:

  • Interactive kiosk and self-service terminals
  • Internet of Things (IoT) and edge computing
  • Industrial computing and data processing
  • Digital signage and information display
  • Edge computing and IoT applications
  • Real-time monitoring and control
  • Industrial automation systems
