Computing System · ARM-based-System
AIB-ROCK28
Series: AIB
Manufactured byAvalue

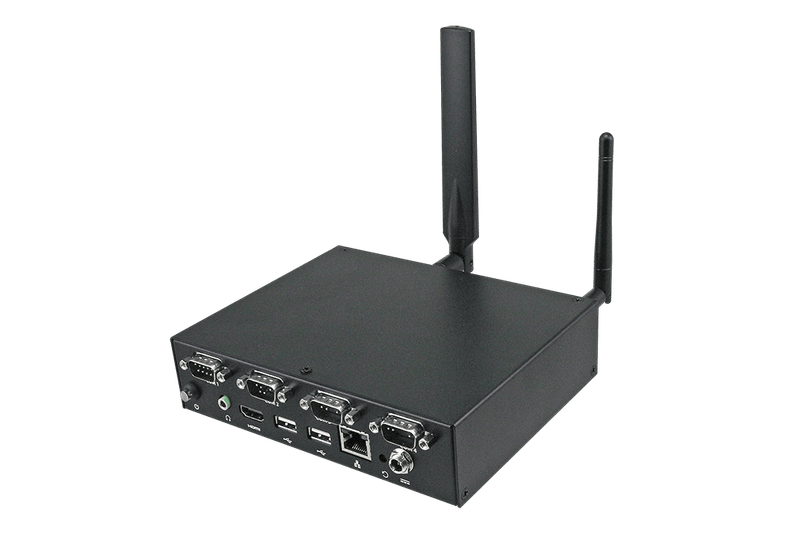

The Avalue AIB-ROCK28 is an ARM-based embedded box PC built around the Rockchip RK3288W processor, offering robust performance for industrial and embedded applications. Featuring 2GB DDR3 memory, 16GB eMMC storage, and versatile I/O including Gigabit LAN, HDMI, USB, RS-232/RS-485 serial, micro SD and Wi-Fi connectivity, it supports flexible deployment in automation, digital signage, kiosks, and IoT systems. The system runs Android 8.1 or Debian 9 and operates on a wide 12–24 V DC power input, making it well suited for industrial, commercial, and embedded environments requiring reliable, continuous operation.
Key Features
- AIB-ROCK28
- 8GB eMMC
- CE, FCC
Technical Specifications
System Information
| Processor | RockChip RK3288W |
|---|---|
| Platform Controller Hub | RockChip RK3288W |
| System Memory | 2GB DDR3 |
| SBC | RockChip RK3288W |
Storage
| eMMC | 16GB eMMC |
|---|
External I/O Connector
| External I/O Connector | 1 x 10/100/1000 RJ45 Powered LAN, 1 x HDMI, 1 x M.2 3042 B-Key, 1 x Micro SD slot, 3 x RS232, 1 x RS485, 1 x Reset, 4 x USB 2.0 Type A, 1 x Wifi 802.11 b/g/n |
|---|
Power Requirement
| Power Requirement | DC 12~24V |
|---|
Software Support
| OS | Android 8.1 , Debian 9 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Mechanical & Environmental
| Operating Temp | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Dimension (W x L x H) | 200 x 110 x 43.8 mm |
| Weight | 0.71 kg |
Ordering Information
| Ordering Information | AIB-ROCK28-A11-1R : AIB-ROCK28-A11-1R |
|---|
Certifications
FCCCertified
CECertified
UKCACertified
RoHSCompliant
