Product Datasheet
20 May 2026
Computing System · Compact-Computing-System
ACS-ADN2C
Series: ACS
The Avalue ACS-ADN2C is an ultra-compact fanless computing system built on the Intel Alder Lake-N series processor, pairing low-power efficiency with a 129 x 129 x 39 mm chassis ideal for space-constrained industrial, kiosk, and edge deployments. It ships with a DDR5 4800MHz SO-DIMM (up to 16GB) and a default 128GB M.2 2242 Key-M SSD, with an additional M.2 Key-E 2230 slot for wireless expansion. Despite its tiny footprint, the ACS-ADN2C offers practical industrial I/O: dual HDMI outputs (each 4096x2160 @ 60Hz via Intel UHD Graphics), four USB 3.0 ports, two RS-232 (DB9) COM ports, dual Gigabit Ethernet (Realtek 8111H), and line-out/mic-in audio. A single 12V DC input (36W) and a 0°C to 40°C operating range make it a simple, reliable drop-in compute node running Windows 10 or Linux.
Key Features
- Intel Alder Lake-N series processor, fanless
- 1 x DDR5 4800MHz SO-DIMM, up to 16GB
- Default 128GB M.2 2242 Key-M SSD + M.2 Key-E 2230 slot
- Dual HDMI output, 4096x2160 @ 60Hz (Intel UHD Graphics)
- 4 x USB 3.0, 2 x RS-232 (DB9)
- Dual Realtek 8111H Gigabit Ethernet
- Line-out + Mic-in audio
- Single 12V DC input (36W adapter)
- Ultra-compact 129 x 129 x 39 mm, Windows 10 / Linux
Technical Specifications
System Information
| Processor | Intel® Alder lake N series Processor |
|---|---|
| System Memory | 1 x SO-DIMM DDR5 4800MHz up to 16GB |
Expansion
| M.2 | 1 x M.2 Key-E 2230 |
|---|
Storage
| M.2 | Default 1 x 128GB M.2 2242 Key M |
|---|

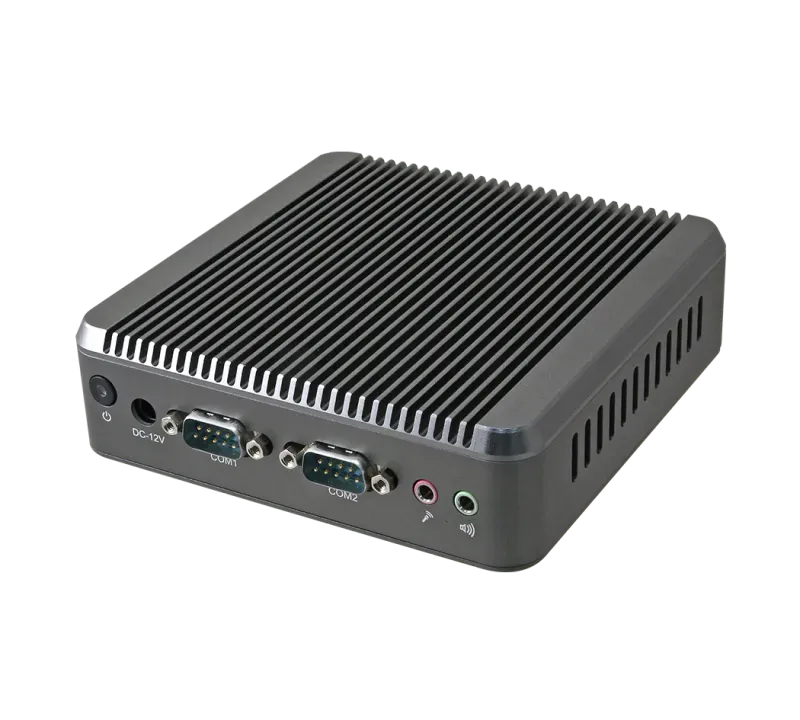

Front I/O
| Power Button | 1 x PWR BTN |
|---|---|
| COM Port | 2 x RS232(DB9) |
| Audio | 1 x Line-Out, 1 x Mic-in |
| AC/DC Input | 1 x DC12V |
Rear I/O
| USB | 4 x USB 3.0 |
|---|---|
| LAN Port | 2 x RJ45 |
| HDMI | 2 x HDMI |
Display
| Graphic Chipset | Intel® UHD Graphics Engine |
|---|---|
| Resolution | 2 x HDMI 4096x2160@60Hz |
Ethernet
| LAN Chipset | 2 x Realtek8111H Gigabit Ethernet Controller |
|---|
Power Requirement
| Voltage Input Spec. | DC 12V/3A,36W |
|---|
Software Support
| OS | Win10, Linux |
|---|
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s Air Flow |
|---|---|
| Storage Temp. | -30℃~70℃(-22℉~158℉) |
| Operating Humidity | 5%~95% , No-condensation |
| Dimension (W x L x H) | 129mm x 129mm x 39mm |
Ordering Information
| Ordering Information | ACS-ADN2C-A1-1R, ACS-ADN2C w/N97, DDR5 8GB, M.2 128GB, US PWR cord, 36W adapter |
|---|
