Manufacturer: Avalue

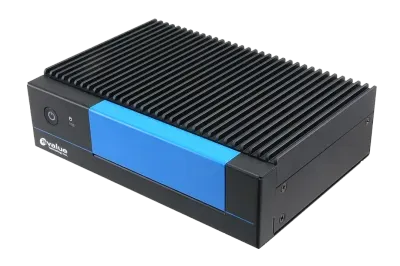

Product Features
- 6th Gen Intel® Core™ i7/i5/i3/Celeron® Processor
- Single DRAM Socket, Max. Up to 16GB DDR4 2133MHz
- Rich I/O, 1 SATA III, 1 Mini PCIe, 1 M.2, 2 COM, 2 USB 2.0, 4 USB 3.0 , 2HDMI, 2LAN
- Fanless Operating from -10 °C~ 60°C
- Wide Range DC Power Input from 12V ~ 26V
- Compact Size, 177mm x 123mm x 50mm
- Optional VESA. DIN Rail Kit
- TPM 2.0/1.2 (Factory Option)
Product Description
The Avalue EPC-SKLU is a compact industrial computing system equipped with Intel® Skylake-U processors. It features a fanless design, multiple I/O interfaces including USB, HDMI, and LAN, and supports a wide temperature range.
This system is designed for industrial applications that require reliable and high-performance computing in a compact form factor, making it suitable for use in harsh environments.
Technical Specifications
System Information
Processor
Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz)
Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz)
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz)
System Memory
1 x 260-Pin SO-DIMM Socket, Max. Up to 16 GB DDR4 2133MHz
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
BIOS Information
AMI uEFI BIOS, 128Mbit SPI Flash ROM
H/W Status Monitor
Monitoring System Temperature and Voltage with Auto Throttling Control
SBC
ECM-SKLU
Mechanical & Environmental
Operating Temperature
With extended temperature peripherals: -10°C ~ 60°C (14°F ~ 140°F) with 0.5m/s air flow
With extended temperature peripherals: -10°C ~ 50°C (14°F ~ 122°F) with 0.2m/s air flow
With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow
Storage Temperature
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
177mm x 123mm x 50mm (7” x 4.8” x 2.0")
Weight
2.65lbs(1.2KG)
Vibration Test
With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test
With SSD : 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

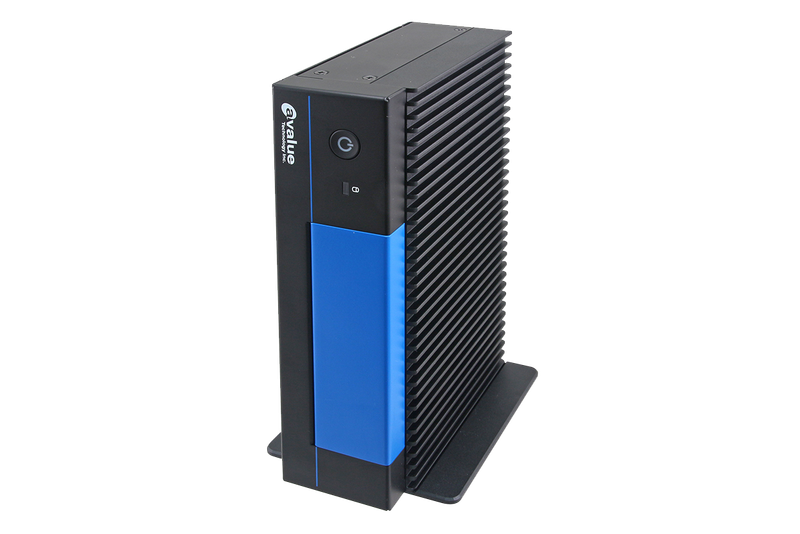

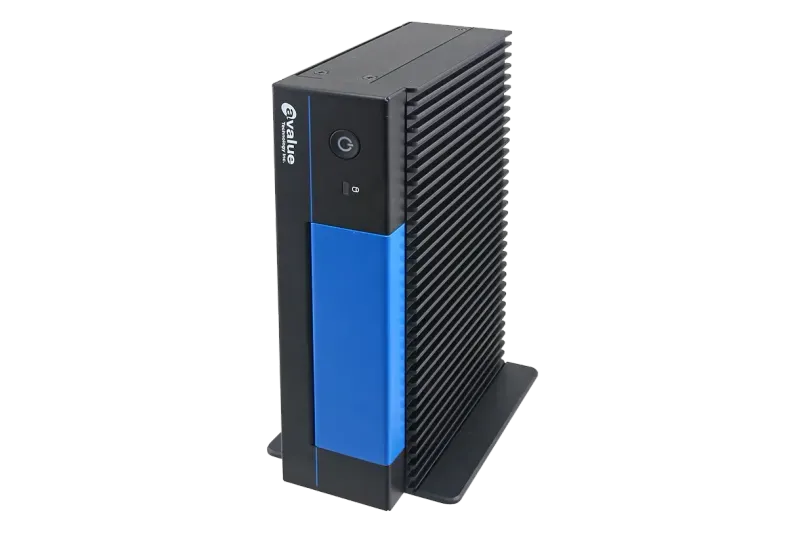

Mounting Kit
Stand (Default)
VESA Mount kit (Factory Option)
Din Rail kit (Factory Option)
Expansion
M.2
1 x M.2 (2242) B-Key
PCIe
1 x Full Size Mini PCIe (mSATA)
Storage
M.2
1 x M.2 (2242) B-Key
mSATA
1 x mSATA
2.5 Drive Bay
1 x 2.5" Drive Bay (7mm)

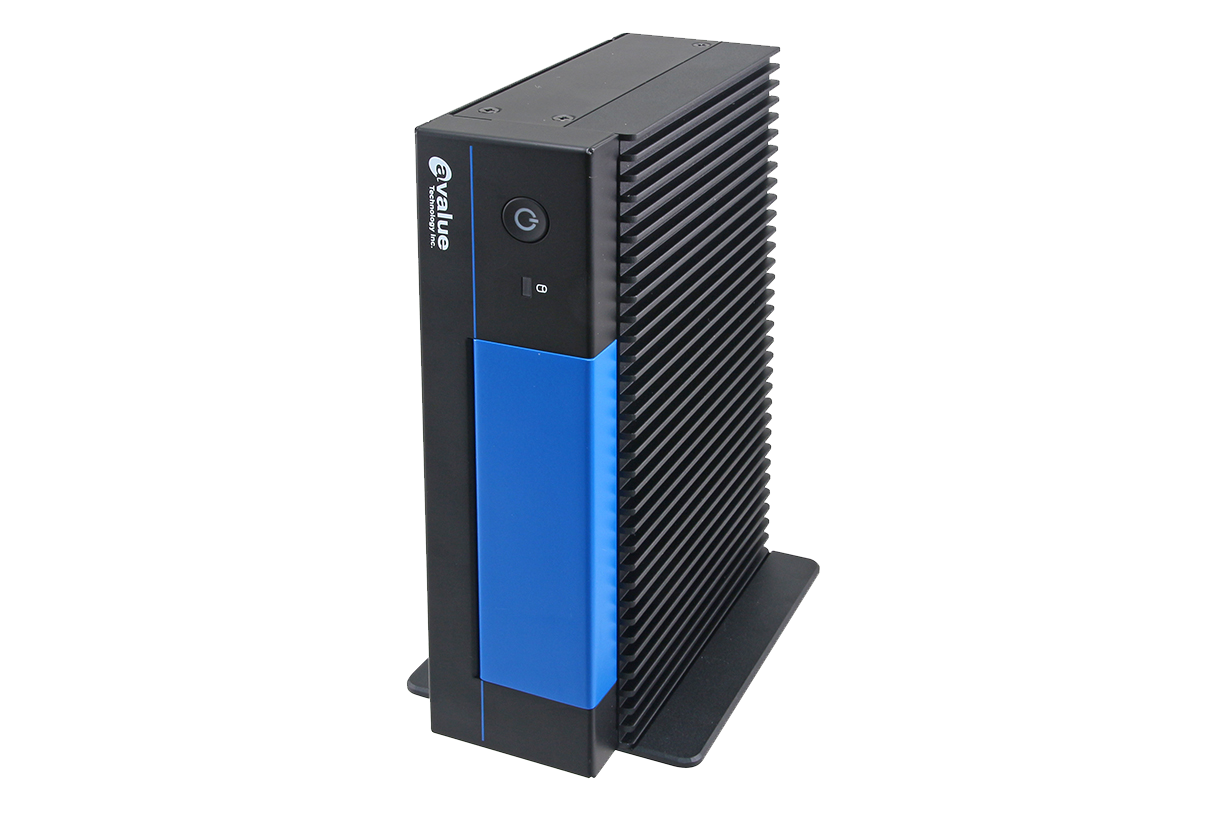

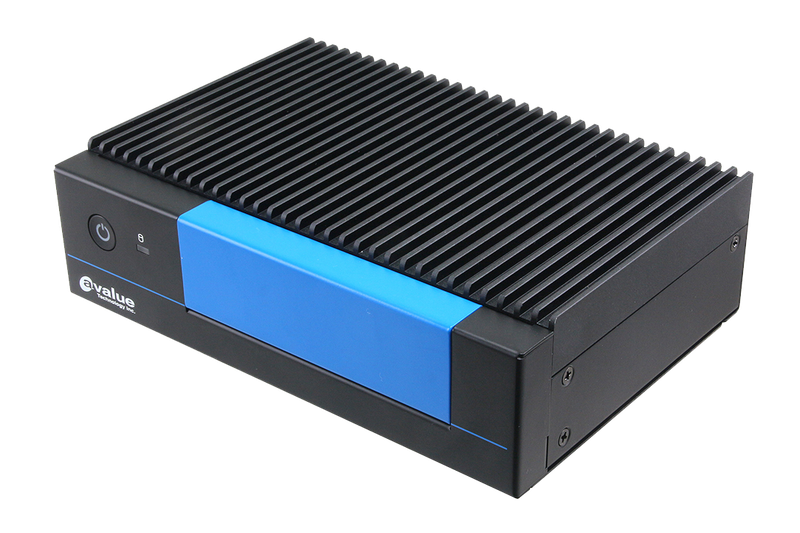

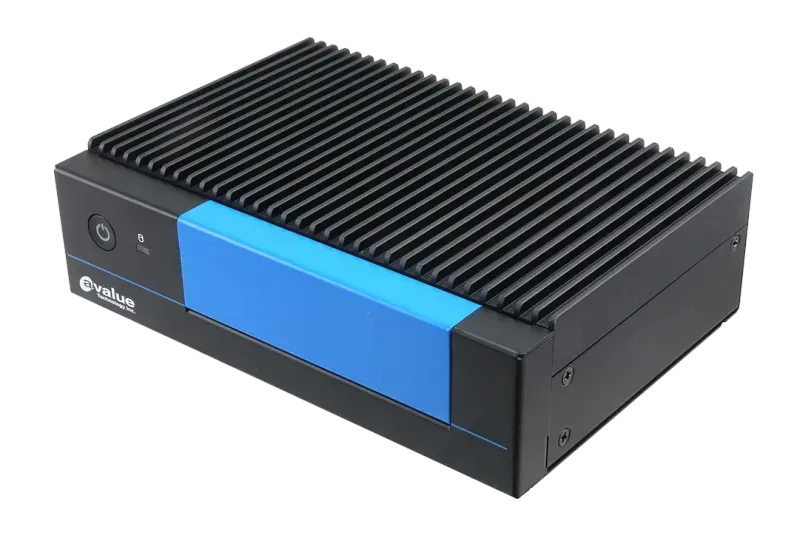

Front I/O
Power Button
1 x Power Button
LED Indicator
1 x Storage Access LED

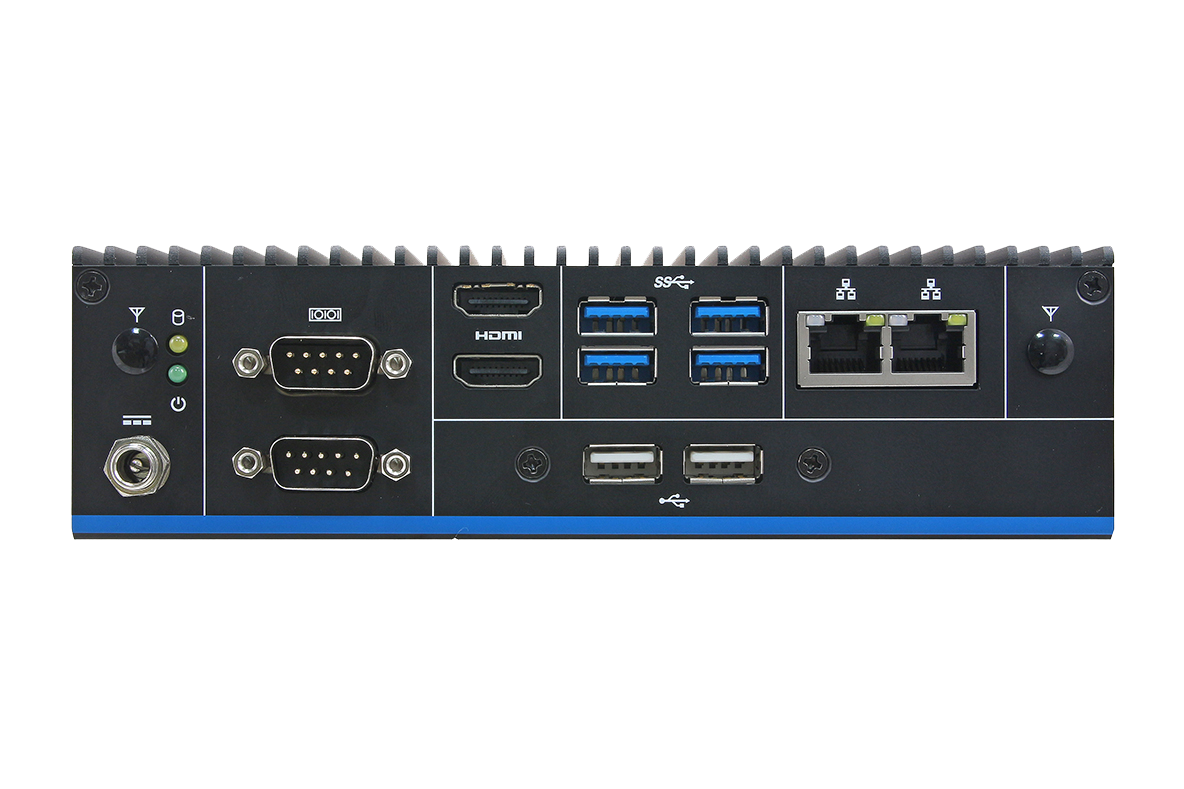

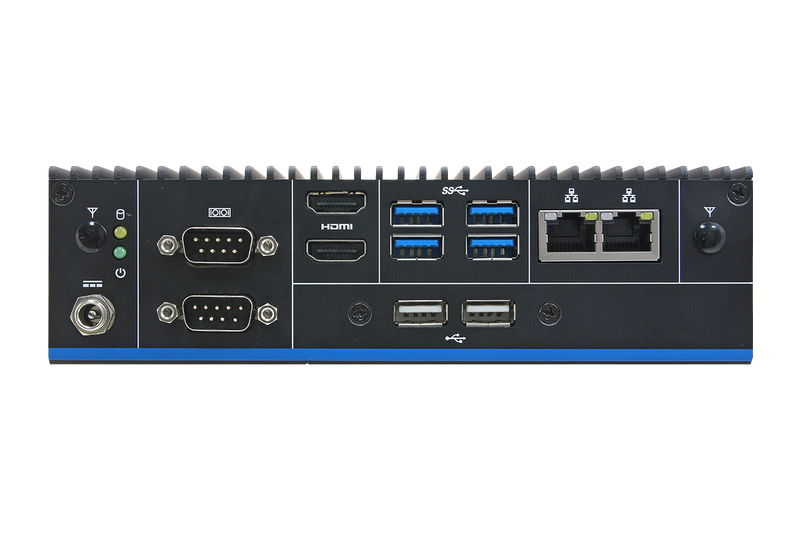

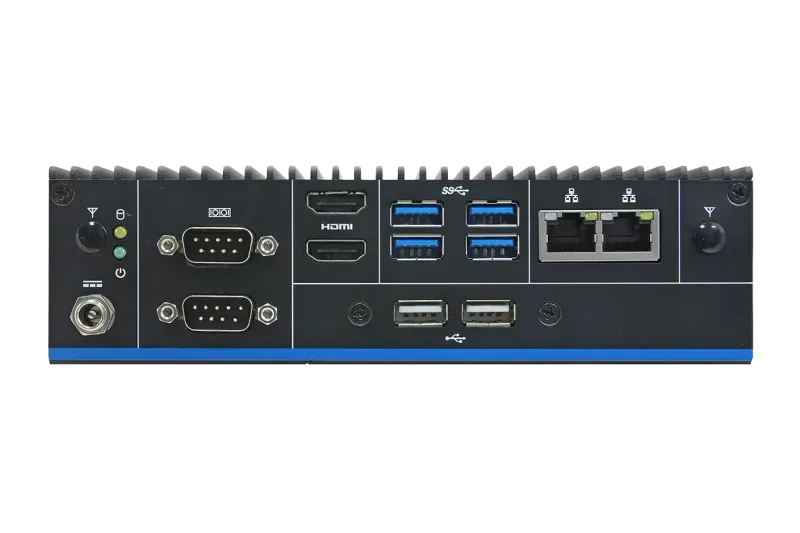

Rear I/O
USB
2 x USB 2.0
4 x USB 3.0
COM Port
1 x RS-232
1 x RS-232/422/485 (Cable&BIOS)
LED Indicator
1 x Power on/off LED
1 x Storage Access LED
LAN Port
2 x RJ45
HDMI
2 x HDMI 1.4
Antenna
2 x Antenna Mounting with Dust Protection Cover
AC/DC Input
1 x Lockable DC Jack
Audio
Audio Codec
Realtek ALC888S
Display
Graphic Chipset
Intel® HD Graphics 520 (i7-6600U, i-5-6300U, i3-6100U)
Intel® HD Graphics 510 (Celeron 3955U)
Resolution
2 x HDMI 1.4: Max. Resolution 4096x2160@24Hz
Certifications
Certification Information
CE, FCC Class B, UKCA
Ethernet
LAN Chipset
1 x Intel® I210AT
1 x Intel® I219LM
Specification
10/100/1000 Base-Tx Gigabit Ethernet Compatible
Power Requirement
ACPI
Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter
Software Support
OS
Win 10, Win 8, Win 7, Linux
Ordering Information
Ordering Information
6th Gen Intel®Core™ Processor Core™ i7/i5/i3/Celeron Fanless Tiny System
EPC-SKLU-66-C2-1R (i7-6600U)
EPC-SKLU-63-C2-1R (i5-6300U)
EPC-SKLU-61-C2-1R (i3-6100U)
EPC-SKLU-39-C2-1R (3955U)
What is EPC-SKLU?
The EPC-SKLU is a computing system manufactured by Avalue, designed specifically for compact-computing-system applications. The Avalue EPC-SKLU is a compact industrial computing system equipped with Intel® Skylake-U processors. It features a fanless design, multiple I/O interfaces including USB, HDMI, and LAN, and supports a wide temperature range. This system is designed for industrial applications that require reliable and high-performance computing in a compact form factor, making it suitable for use in harsh environments.
