Product Datasheet
20 May 2026
Computing System · Modular-Computing-System
EMS-ARH
Series: EMS
The Avalue EMS-ARH is a modular computing system powered by Intel Core Ultra processors (Series 2, Meteor Lake-H) — Core Ultra 7 255H / Ultra 5 225H — with integrated Intel Arc GPU and NPU for AI-accelerated edge workloads. Dual SO-DIMM sockets support up to 64GB DDR5 6400 MT/s, with dTPM 2.0 and optional Intel iAMT for secure, manageable deployment based on the EMS-ARH SBC. Its IET modular interface (DDI, 4 x PCIe Gen4 x1, USB 2.0, SMBus, eSPI) plus triple M.2 (Key-B/E/M, NVMe Gen4 x4) make it highly expandable. The EMS-ARH offers 2 x COM RS-232/422/485, 8-bit GPIO, four rear USB 3.2 Gen1, dual LAN, DP++ and dual HDMI, terminal-block power input, and rich LED/antenna provisioning — well suited to AI vision, machine control, and modular edge systems running Windows or Linux.
Key Features
- Intel Core Ultra (Series 2, Meteor Lake-H): Ultra 7 255H / Ultra 5 225H
- Integrated Intel Arc GPU + NPU (AI acceleration)
- 2 x DDR5 6400 MT/s SO-DIMM, up to 64GB
- dTPM 2.0; optional Intel iAMT
- IET modular interface (DDI, 4x PCIe Gen4x1, USB 2.0, SMBus, eSPI)
- Triple M.2 (Key-B/E/M, NVMe Gen4 x4)
- 2 x COM RS-232/422/485, 8-bit GPIO
- 4 x USB 3.2 Gen1, dual LAN, DP++ + 2 x HDMI
- Terminal-block power input, EMS-ARH SBC, Windows / Linux
Technical Specifications
System Information
| Processor | Intel® Core™ Ultra processors (Series 2), Meteor Lake-H, Intel® Core™ Ultra 7 Processor 255H, Intel® Core™ Ultra 5 Processor 225H |
|---|---|
| System Memory | 2 x 262-pin SODIMM socket Max. up to 64GB DDR5 6400 MT/s |
| BIOS Information | AMI uEFI BIOS 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | CPU & system temperature monitoring and Voltages monitoring |
| TPM | dTPM 2.0 |
| iAMT | Selected SKUs |
| SBC | EMS-ARH |
Expansion
| M.2 | 1 x M.2 Key-B 2242/3042/3052 (SATA3 / PCIe Gen4x1 / USB3.2 Gen2) with SIM slot (internal), 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0 / PCIe Gen4x1), 1 x M.2 Key-M 2280 (PCIe Gen4x4) |
|---|---|
| IET | 1 x IET interface (1 x DDI, 4 x PCIe Gen4x1, 3 x USB2.0, 1 x SMBus, eSPI) |
Storage
| M.2 | 1 x M.2 Key-M 2280 (PCIe Gen4x4), support NVMe (share with expansion slot), 1 x M.2 Key-B 2242, support SATA (share with expansion slot) |
|---|

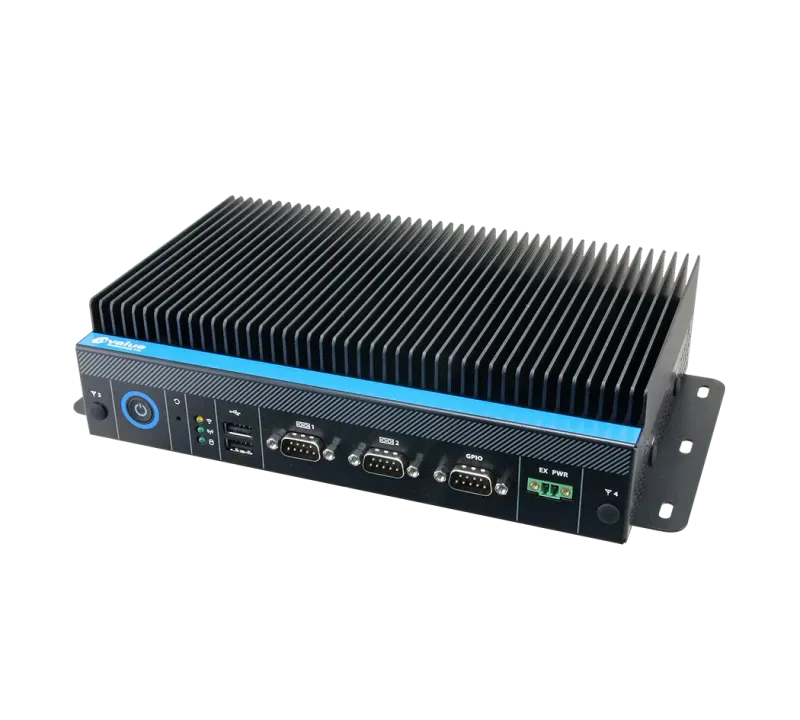

Front I/O
| Power Button | 1 x Push Button for Power on/off |
|---|---|
| Reset Button | 1 x Push Button for Reset |
| LED Indicator | 1 x Power LED (Blue), 1 x Storage LED (Yellow), 1 x LTE LED (Green), 1 x Wifi LED (Green) |
| USB | 2 x USB2.0 |
| COM Port | 2 x COM RS232/422/485 (BIOS & Jumper) |
| Digital I/O | 1 x 8-bit GPIO (DB9) |
| Wire-Control Power On/Off | 1 x 2-Pin Terminal Block |
| Antenna | 2 x Antenna with dust cover |
Rear I/O
| USB | 4 x USB 3.2 Gen.1 (5Gbp/s)(w/ USB 2.0) |
|---|---|
| LAN Port | 2 x RJ-45 |
| Audio | Mic-In, Line-Out |
| DP | 1 x DP++ |
| HDMI | 2 x HDMI |
| Antenna | 2 x Antenna with dust cover |
| AC/DC Input | 1 x 3-Pin Terminal Block (V+. V-, GND) |
Right I/O
| Antenna | 2 x Antenna with dust cover |
|---|
Left I/O
| Antenna | 2 x Antenna with dust cover |
|---|
Display
| Graphic Chipset | Intel® Arc™ GPU |
|---|---|
| Resolution | DP++: 4096x2304 @ 60Hz, HDMI: Max. resolution 4096x2304 @ 60Hz |
Audio
| Audio Codec | Realtek ALC888S HD codec |
|---|
Ethernet
| LAN Chipset | 2 x Intel I226-IT |
|---|---|
| Specification | 2 x 10/100/1000/2.5G GbE compatible |
Power Requirement
| Voltage Input Spec. | DC in typical 12/24V (+12V ~ +36V), wide voltage single power input, TVS component for surge protection, Reverse current/voltage protection(Max. Currency: 13A) |
|---|---|
| Voltage Input Connector | 3-Pin Terminal Block |
| ACPI | Single power ATX Support S0, S3, S4, S5, ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is default setting) |
Software Support
| OS | Win 10 / Win 11/ Linux |
|---|
Certification
| Certification Information | CE, FCC Class A |
|---|
Mechanical & Environmental
| Operating Temp. | -40°C ~ 60°C (w/SSD) ambient w/ air flow |
|---|---|
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 240mm x 150mm x 59 mm (Standard), 240mm x 150mm x 85 mm (w/ IET module) |
| Weight | 2.3 kg (System), 3.1 kg (w_Package) |
| Vibration Test | With SSD : 2Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis |
| Shock Test | With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms |
| IP Rating | IP 50 |
| Mounting Kit | Wall mount kit (standard), Din rail kit (optional) |
