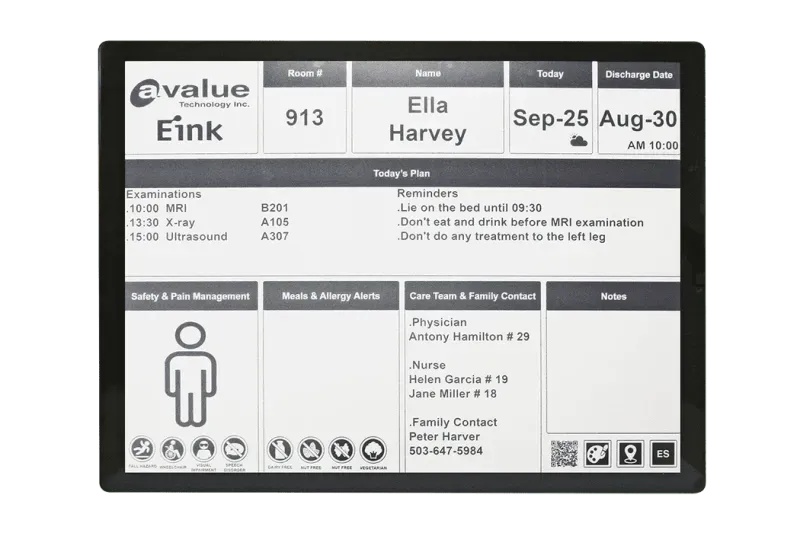

EPD-4200

Series: EPD

Manufactured byAvalue

The Avalue EPD-4200 is a 42" E-Ink (B/W) public display driven over USB, designed as an ultra-low-power, large-format signage and information panel. Built around the E Ink ED420TT3 panel at 2160 x 2880 pixels, it delivers a high-resolution, paper-like image with ~180° viewing for always-on content. With a simple USB 1.1 data interface and a lockable 12V DC input (60W adapter), the EPD-4200 is a clean, energy-efficient B/W display for paperless notice boards and public information, supplied with a 3-step mounting kit.

Key Features

42" E Ink (B/W) public display, USB-driven
E Ink ED420TT3 panel, 2160 x 2880 pixels
Wide ~180° viewing angle
USB 1.1 data interface
Lockable 12V DC input (60W 12V/5A adapter)
3-step mounting kit
0~50°C operating, ESD level 3
FCC Class B & CE (EN 55032 & 55035)
Black B/W E Ink display

Technical Specifications

Power Requirement

Adapter	Input: 100~240Vac/50~60Hz ; Output: 60W (12V/5A)
DC Input	DC-12V
DC Input Connector	Lockable DC Jack

Certification

Certification Information	FCC Class B & CE (EN 55032 & 55035) ESD level 3

Panel

Viewing angle	180(U), 180(D), 180(L), 180(R)
Display Type	E Paper Display
Resolution	2160 x 2880 pixels
LCD Size	42"
LCD Panel	E Ink ED420TT3

Data Communication

USB	1 x USB 1.1

Mechanical

Color	Black

Mechanical & Environmental

Mounting Kit	3 steps mounting kits
Dimension (W x L x H)	934.2 x 704.2 x 39 mm
Drop Test	Avalue Standard Test Criteria (ISTA-2A)
Operating Temp.	0°C ~ 50°C
Operating Humidity	40°C@95% relative humidity, non-condensing
Weight	11.4kgs (N.W) / 17.4kgs (G.W)
Storage Temp.	-20 ~ 60°C (-4 ~ 140°F)
Shock Test	10G, IEC 60068-2-27, Half Sine, 11ms (Only for Z-axis)
Vibration Test	0.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz,0.5hr/axis (Only for Z-axis)

Ordering Information

Ordering Information	EPD-4200-TFD-A1R 42" E Ink B/W USB Display
