Avalue · Digital Paper

EPD-4200

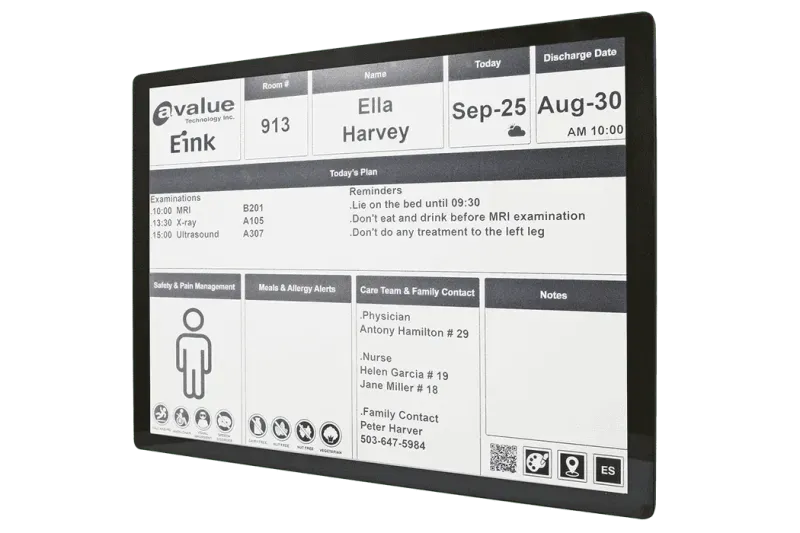

EPD-4200 FrontEPD-4200 FrontEPD-4200 Front
EPD-4200, Image 1EPD-4200, Image 2EPD-4200, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • 42" E Ink (B/W) public display, USB-driven
  • E Ink ED420TT3 panel, 2160 x 2880 pixels
  • Wide ~180° viewing angle
  • USB 1.1 data interface
  • Lockable 12V DC input (60W 12V/5A adapter)
  • 3-step mounting kit
  • 0~50°C operating, ESD level 3
  • FCC Class B & CE (EN 55032 & 55035)
  • Black B/W E Ink display

Product Description

The Avalue EPD-4200 is a 42" E-Ink (B/W) public display driven over USB, designed as an ultra-low-power, large-format signage and information panel.

Built around the E Ink ED420TT3 panel at 2160 x 2880 pixels, it delivers a high-resolution, paper-like image with ~180° viewing for always-on content.

With a simple USB 1.1 data interface and a lockable 12V DC input (60W adapter), the EPD-4200 is a clean, energy-efficient B/W display for paperless notice boards and public information, supplied with a 3-step mounting kit.

Technical Specifications

Adapter

Input: 100~240Vac/50~60Hz ; Output: 60W (12V/5A)

DC Input

DC-12V

DC Input Connector

Lockable DC Jack

Certification Information

FCC Class B & CE (EN 55032 & 55035) ESD level 3

Viewing angle

180(U), 180(D), 180(L), 180(R)

Display Type

E Paper Display

Resolution

2160 x 2880 pixels

LCD Size

42"

LCD Panel

E Ink ED420TT3

USB

1 x USB 1.1

Color

Black

Mounting Kit

3 steps mounting kits

Dimension (W x L x H)

934.2 x 704.2 x 39 mm

Drop Test

Avalue Standard Test Criteria (ISTA-2A)

Operating Temp.

0°C ~ 50°C

Operating Humidity

40°C@95% relative humidity, non-condensing

Weight

11.4kgs (N.W) / 17.4kgs (G.W)

Storage Temp.

-20 ~ 60°C (-4 ~ 140°F)

Shock Test

10G, IEC 60068-2-27, Half Sine, 11ms (Only for Z-axis)

Vibration Test

0.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz,0.5hr/axis (Only for Z-axis)

Ordering Information

EPD-4200-TFD-A1R 42" E Ink B/W USB Display

What is EPD-4200?

The EPD-4200 is a digital paper manufactured by Avalue, designed specifically for public-display-solution applications. The Avalue EPD-4200 is a 42" E-Ink (B/W) public display driven over USB, designed as an ultra-low-power, large-format signage and information panel. Built around the E Ink ED420TT3 panel at 2160 x 2880 pixels, it delivers a high-resolution, paper-like image with ~180° viewing for always-on content. With a simple USB 1.1 data interface and a lockable 12V DC input (60W adapter), the EPD-4200 is a clean, energy-efficient B/W display for paperless notice boards and public information, supplied with a 3-step mounting kit.

Key Features & Benefits

  • 42" E Ink (B/W) public display, USB-driven
  • E Ink ED420TT3 panel, 2160 x 2880 pixels
  • Wide ~180° viewing angle
  • USB 1.1 data interface
  • Lockable 12V DC input (60W 12V/5A adapter)
  • 3-step mounting kit
  • 0~50°C operating, ESD level 3
  • FCC Class B & CE (EN 55032 & 55035)
  • Black B/W E Ink display

Applications & Use Cases

The EPD-4200 is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Peripheral device connectivity and data transfer
  • Visual monitoring and data display systems
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
