EPD-42T

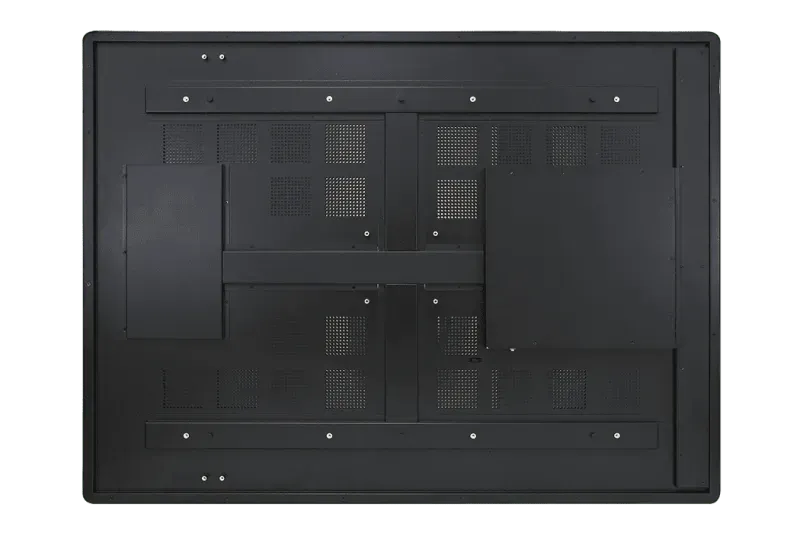

EPD-42T FrontEPD-42T FrontEPD-42T Front
EPD-42T, Image 1EPD-42T, Image 2EPD-42T, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • 42" E-Paper public display with integrated compute
  • NXP i.MX 7Dual (dual Cortex-A7 + Cortex-M4), EMX-IMX7 board
  • Onboard 2GB DDR3L, 8GB eMMC + microSD
  • Built-in projected-capacitive touch (USB), ILI2325 controller
  • Gigabit Ethernet (ICPlus IP1001M), optional Wi-Fi/BT (M.2 E-Key)
  • 2 x 0.5W speakers, CIRRUS WM8960 codec
  • Wide ~180° viewing angle, lockable 12V DC (60W adapter)
  • Android 5.1 / Linux 4.15 (Yocto 2.1)
  • CE (EN 62368-1), FCC Part 15 Class B

Product Description

The Avalue EPD-42T is a large-format ePaper public display with an integrated NXP i.MX 7Dual processor (EMX-IMX7 board) and built-in projected-capacitive touch, designed as a self-contained, ultra-low-power interactive signage and information display.

With onboard 2GB DDR3L, 8GB eMMC, Gigabit Ethernet, and optional Wi-Fi/BT, it runs Android 5.1 or Linux for paperless, always-on content.

The E-Paper panel offers ~180° viewing, USB touch interface, dual 0.5W speakers, and a lockable 12V DC input with a 60W adapter — supplied with wall-mount and locking brackets for fixed deployment.

Technical Specifications

Antenna

2 x Antenna with dust cover

I/O Chipset

PCA9555

Platform Controller Hub

NXP MCIMX7D7DVM10SD

Board

EMX-IMX7

System Memory

On-Board 2GB DDR3L

Processor

NXP i.MX 7Dual Processor / Dual Arm® Cortex®-A7 Cores And Cortex-M4

Expansion

1 x M.2 E-Key socket for WiFi/BT module expansion

Other Storage Device

1 x Micro SD card slot

Storage

On-Board 8GB eMMC / microSD Socket

Speaker Output

2 x 0.5W Speakers

Audio Codec

CIRRUS WM8960 Stereo codec

LAN Chipset

ICPlus IP1001M Gigabit Phy

LAN Port

1 x RJ-45 Supports 10/100/1000 Base-T

Adapter

Input: 100~240Vac/50~60Hz ; Output: 60W (12V/5A)

DC Input

DC-12V

DC Input Connector

Lockable DC Jack

OS

Android5.1 / Linux 4.15, (Yocto 2.1)

Certification Information

CE (EN 62368-1) FCC Part 15 Class B

Accessory

1 x Power Adapter

1 x US Power cord

1 x Wall mounting bracket

1 x Wall locking bracket

1 x Pan head screws (D6.8, M4*10mm) with washer (D8.1)

4 x Thumb screws (M4*10L)

2 x Pan head screws (D6.85, M4*6mm)

LAN Port

1 x RJ-45 connector for Gigabit Ethernet

USB

2 x USB 2.0 (Edge I/O) 1 x Micro USB for USB OTG

Wireless LAN Antenna

Optional with M.2 module

Touch Light Transmission

≧80%

Viewing angle

180(U), 180(D), 180(L), 180(R)

Touch Controller

ILI2325

Touch Interface

USB

Contrast ratio

15:1 (Typ.)

Touch Screen

Built-in Projective Capacitive Touch Screen

Display Type

E Paper Display

Resolution

H:2160 × V:2880

LCD Size

42"

Pixel pitch

0.2975 (H) x 0.2975 (V)

LCD Panel

E Ink ED420TE1

GPIO

4 x GPIO I/F

Serial

2 x TTL Serial I/F

Supports Optional TTL to RS-232 Converter

Supports Optional TTL to RS-485 Converter Supports Optional TTL to USB Converter

Color

Black

Unit Weight

6.5kg

EMI Test

CE/FCC-B

Packaging Vibration Test

With On-Board 8GB eMMC/On-Board 1GB DDR3L: 0.5 Grms, IEC 60068-2-64, Random, 5~ 500Hz, 1hr/axis (Only for Z-axis)

Operating Humidity

5% ~ 90% relative humidity, non-condensing

Storage Temp.

-20°C ~ 60°C

Packaging Drop Test

Avalue Standard Test Criteria (Change to use ISTA-1A)

Mounting Kit

3 steps mounting kits

VESA

100x100

Dimension (W x L x H)

918.8 x 704.6 x 37.6 mm

Operating Temp.

0°C ~ 40°C standard temp, -15°C~65°C wide temp is optional

Operating Humidity

5% ~ 90% relative humidity, non-condensing

Weight

6.5Kgs

Storage Temp.

-20°C ~ 60°C

Ordering Information

EPD-42T-SIT-A1R 42" E Ink/NXP EMX-IMX7/PCAP/LAN/Android

What is EPD-42T?

The EPD-42T is a digital paper manufactured by Avalue, designed specifically for public-display-solution applications. The Avalue EPD-42T is a large-format ePaper public display with an integrated NXP i.MX 7Dual processor (EMX-IMX7 board) and built-in projected-capacitive touch, designed as a self-contained, ultra-low-power interactive signage and information display. With onboard 2GB DDR3L, 8GB eMMC, Gigabit Ethernet, and optional Wi-Fi/BT, it runs Android 5.1 or Linux for paperless, always-on content. The E-Paper panel offers ~180° viewing, USB touch interface, dual 0.5W speakers, and a lockable 12V DC input with a 60W adapter — supplied with wall-mount and locking brackets for fixed deployment.

Key Features & Benefits

  • 42" E-Paper public display with integrated compute
  • NXP i.MX 7Dual (dual Cortex-A7 + Cortex-M4), EMX-IMX7 board
  • Onboard 2GB DDR3L, 8GB eMMC + microSD
  • Built-in projected-capacitive touch (USB), ILI2325 controller
  • Gigabit Ethernet (ICPlus IP1001M), optional Wi-Fi/BT (M.2 E-Key)
  • 2 x 0.5W speakers, CIRRUS WM8960 codec
  • Wide ~180° viewing angle, lockable 12V DC (60W adapter)
  • Android 5.1 / Linux 4.15 (Yocto 2.1)
  • CE (EN 62368-1), FCC Part 15 Class B

Applications & Use Cases

The EPD-42T is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Wireless connectivity and remote monitoring applications
  • Networked industrial systems and data communication
  • Interactive control interfaces and operator panels
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Visual monitoring and data display systems
  • Industrial automation and control
