EPD-42T

Series: EPD

Manufactured byAvalue

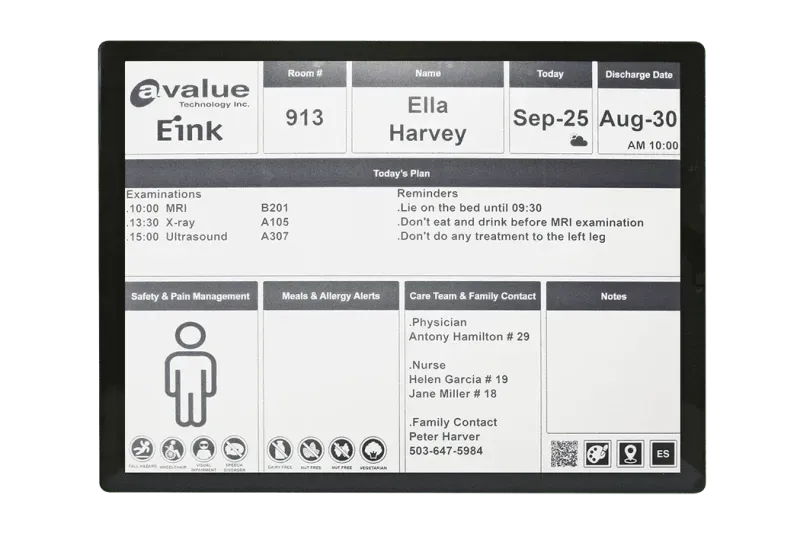

The Avalue EPD-42T is a large-format ePaper public display with an integrated NXP i.MX 7Dual processor (EMX-IMX7 board) and built-in projected-capacitive touch, designed as a self-contained, ultra-low-power interactive signage and information display. With onboard 2GB DDR3L, 8GB eMMC, Gigabit Ethernet, and optional Wi-Fi/BT, it runs Android 5.1 or Linux for paperless, always-on content. The E-Paper panel offers ~180° viewing, USB touch interface, dual 0.5W speakers, and a lockable 12V DC input with a 60W adapter — supplied with wall-mount and locking brackets for fixed deployment.

Key Features

42" E-Paper public display with integrated compute
NXP i.MX 7Dual (dual Cortex-A7 + Cortex-M4), EMX-IMX7 board
Onboard 2GB DDR3L, 8GB eMMC + microSD
Built-in projected-capacitive touch (USB), ILI2325 controller
Gigabit Ethernet (ICPlus IP1001M), optional Wi-Fi/BT (M.2 E-Key)
2 x 0.5W speakers, CIRRUS WM8960 codec
Wide ~180° viewing angle, lockable 12V DC (60W adapter)
Android 5.1 / Linux 4.15 (Yocto 2.1)
CE (EN 62368-1), FCC Part 15 Class B

Technical Specifications

System Information

Antenna	2 x Antenna with dust cover
I/O Chipset	PCA9555
Platform Controller Hub	NXP MCIMX7D7DVM10SD
Board	EMX-IMX7
System Memory	On-Board 2GB DDR3L
Processor	NXP i.MX 7Dual Processor / Dual Arm® Cortex®-A7 Cores And Cortex-M4

Expansion

Expansion	1 x M.2 E-Key socket for WiFi/BT module expansion

Storage

Other Storage Device	1 x Micro SD card slot
Storage	On-Board 8GB eMMC / microSD Socket

Audio

Speaker Output	2 x 0.5W Speakers
Audio Codec	CIRRUS WM8960 Stereo codec

Ethernet

LAN Chipset	ICPlus IP1001M Gigabit Phy
LAN Port	1 x RJ-45 Supports 10/100/1000 Base-T

Power Requirement

Adapter	Input: 100~240Vac/50~60Hz ; Output: 60W (12V/5A)
DC Input	DC-12V
DC Input Connector	Lockable DC Jack

Software Support

OS	Android5.1 / Linux 4.15, (Yocto 2.1)

Certification

Certification Information	CE (EN 62368-1) FCC Part 15 Class B

In-Box Accessory

Accessory	1 x Power Adapter, 1 x US Power cord, 1 x Wall mounting bracket, 1 x Wall locking bracket, 1 x Pan head screws (D6.8, M410mm) with washer (D8.1), 4 x Thumb screws (M410L), 2 x Pan head screws (D6.85, M4*6mm)

External I/O

LAN Port	1 x RJ-45 connector for Gigabit Ethernet
USB	2 x USB 2.0 (Edge I/O) 1 x Micro USB for USB OTG
Wireless LAN Antenna	Optional with M.2 module

Panel

Touch Light Transmission	≧80%
Viewing angle	180(U), 180(D), 180(L), 180(R)
Touch Controller	ILI2325
Touch Interface	USB
Contrast ratio	15:1 (Typ.)
Touch Screen	Built-in Projective Capacitive Touch Screen
Display Type	E Paper Display
Resolution	H:2160 × V:2880
LCD Size	42"
Pixel pitch	0.2975 (H) x 0.2975 (V)
LCD Panel	E Ink ED420TE1

I/O

GPIO	4 x GPIO I/F
Serial	2 x TTL Serial I/F, Supports Optional TTL to RS-232 Converter, Supports Optional TTL to RS-485 Converter Supports Optional TTL to USB Converter

Mechanical

Color	Black

Reliability

Unit Weight	6.5kg
EMI Test	CE/FCC-B
Packaging Vibration Test	With On-Board 8GB eMMC/On-Board 1GB DDR3L: 0.5 Grms, IEC 60068-2-64, Random, 5~ 500Hz, 1hr/axis (Only for Z-axis)
Operating Humidity	5% ~ 90% relative humidity, non-condensing
Storage Temp.	-20°C ~ 60°C
Packaging Drop Test	Avalue Standard Test Criteria (Change to use ISTA-1A)

Mechanical & Environmental

Mounting Kit	3 steps mounting kits
VESA	100x100
Dimension (W x L x H)	918.8 x 704.6 x 37.6 mm
Operating Temp.	0°C ~ 40°C standard temp, -15°C~65°C wide temp is optional
Operating Humidity	5% ~ 90% relative humidity, non-condensing
Weight	6.5Kgs
Storage Temp.	-20°C ~ 60°C

Ordering Information

Ordering Information	EPD-42T-SIT-A1R 42" E Ink/NXP EMX-IMX7/PCAP/LAN/Android
