HPS-ERSUTA

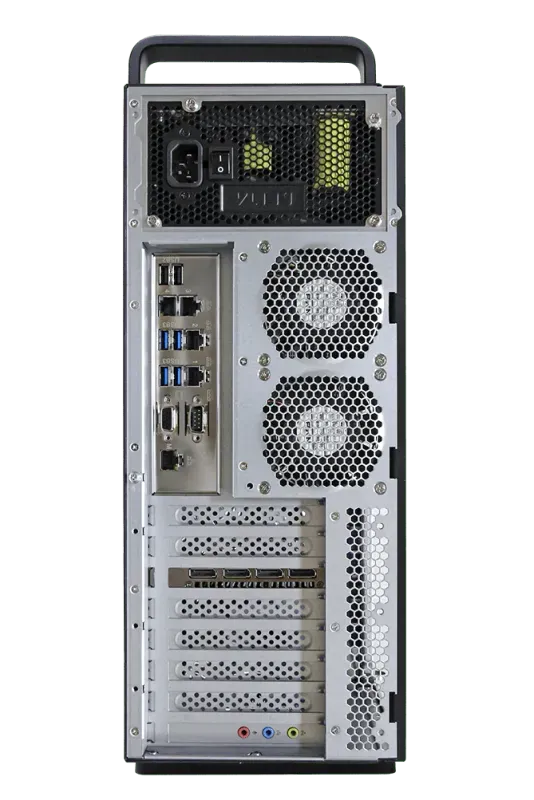

HPS-ERSUTA FrontHPS-ERSUTA Front

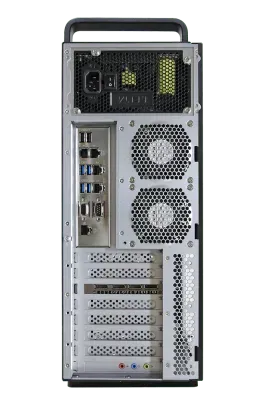

HPS-ERSUTA, Image 1HPS-ERSUTA, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Tower workstation (340 x 488 x 528 mm with handles/pedestal)
  • Single 4th/5th Gen Intel® Xeon® Scalable (LGA4677, max. TDP 270W)
  • Avalue HPM-ERSUA server board, Intel® C741 chipset, IPMI 2.0
  • 6 x DDR5 5600MHz RDIMM up to 1.5TB
  • 1 x 1300W PS2 ATX PSU
  • 4 x PCIe Gen5 x16 + 3 x PCIe Gen5 x4 slots
  • 3 x front-accessible 2.5" bays + 1 x M.2 NVMe
  • Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
  • Windows 10 IoT / Server IoT / Ubuntu / RHEL

Product Description

The Avalue HPS-ERSUTA is a tower workstation built around the Avalue HPM-ERSUA server board with a single 4th/5th Generation Intel® Xeon® Scalable processor (max. TDP up to 270W) and Intel® C741 chipset, designed as a manageable, GPU/accelerator-ready deskside compute node for HPC and edge workloads.

With 6 x DDR5 5600MHz RDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon Scalable performance into a 340 x 488 x 528 mm tower chassis with external handles and pedestal stand.

It provides 4 x PCIe Gen5 x16 and 3 x PCIe Gen5 x4 slots, an M.2 NVMe, 3 x front-accessible 2.5" bays, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), USB 3.2 Gen1/USB 2.0 and VGA, running Windows 10 IoT / Windows Server IoT 2019/2022, Ubuntu or RHEL.

Technical Specifications

Processor

Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)

Platform Controller Hub

Intel® C741 Chipset

System Memory

6 x DDR5 5600 MHz RDIMM up to 1.5TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-ERSUA

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator

1 x Disk activity indicator

1 x Network activity indicator

USB

4 x USB 3.2 Gen1 ports

2 x USB 2.0 type A ports

COM Port

1 x RS232 port

VGA

1 x VGA port

RJ-45

5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Graphic Chipset

AST 2600 BMC controller

Resolution

1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots

Slot 1, PCIe 5.0 x16

Slot 2, PCIe 5.0 x4

Slot 3, PCIe 5.0 x16

Slot 4, PCIe 5.0 x4

Slot 5, PCIe 5.0 x16

Slot 6, PCIe 5.0 x4

Slot 7, PCIe 5.0 x16 (closest to CPU)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT 1GbE controller

1 x Intel I226-LM 2.5GbE controller

1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Operating Temp.

0 ~ 35°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab

70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @ 95% Relative Humidity, Non-condensing

Weight

19.7KG

Dimension (W x L x D)

Tower Chassis 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand

174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

OS

Windows 10 IoT Enterprise LTSC 2021

Windows Server IoT 2019 with VT-d disabled

Windows Server IoT 2022

Ubuntu 21.10, 22.04 LTS or later

Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

HPS-ERSUTAD-A1R: L6 Tower Workstation w/HPM-ERSUAA/1300W/1x5.25"/3x2.5"
