HPS-ERSUTA

Series: HPS

Manufactured byAvalue

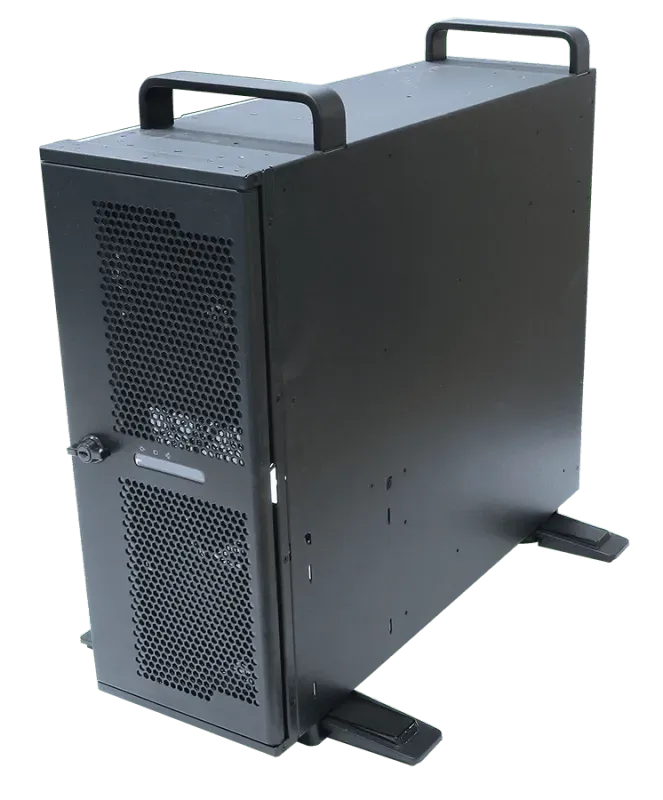

The Avalue HPS-ERSUTA is a tower workstation built around the Avalue HPM-ERSUA server board with a single 4th/5th Generation Intel® Xeon® Scalable processor (max. TDP up to 270W) and Intel® C741 chipset, designed as a manageable, GPU/accelerator-ready deskside compute node for HPC and edge workloads. With 6 x DDR5 5600MHz RDIMM up to 1.5TB, a 1300W ATX PSU and IPMI 2.0 via an ASPEED AST2600 BMC, it packages Xeon Scalable performance into a 340 x 488 x 528 mm tower chassis with external handles and pedestal stand. It provides 4 x PCIe Gen5 x16 and 3 x PCIe Gen5 x4 slots, an M.2 NVMe, 3 x front-accessible 2.5" bays, triple Intel Ethernet (I210AT 1GbE, I226-LM 2.5GbE, X550AT2 dual 10GbE), USB 3.2 Gen1/USB 2.0 and VGA, running Windows 10 IoT / Windows Server IoT 2019/2022, Ubuntu or RHEL.

Key Features

Tower workstation (340 x 488 x 528 mm with handles/pedestal)
Single 4th/5th Gen Intel® Xeon® Scalable (LGA4677, max. TDP 270W)
Avalue HPM-ERSUA server board, Intel® C741 chipset, IPMI 2.0
6 x DDR5 5600MHz RDIMM up to 1.5TB
1 x 1300W PS2 ATX PSU
4 x PCIe Gen5 x16 + 3 x PCIe Gen5 x4 slots
3 x front-accessible 2.5" bays + 1 x M.2 NVMe
Intel I210AT 1GbE + I226-LM 2.5GbE + X550AT2 (2 x 10GbE)
Windows 10 IoT / Server IoT / Ubuntu / RHEL

Technical Specifications

System Information

Processor	Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
Platform Controller Hub	Intel® C741 Chipset
System Memory	6 x DDR5 5600 MHz RDIMM up to 1.5TB
BIOS	AMI UEFI BIOS
Watchdog Timer	System reset event 0 ~ 6553 seconds
H/W Status Monitor	CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection
TPM	TPM 2.0 onboard
IPMI	IPMI 2.0 with AST 2600 BMC controller onboard
SBC	HPM-ERSUA

Front I/O

USB	2 x USB 3.2 Gen1 ports
Power Button	1 x Power button
Reset Button	1 x Reset button
LED Indicator	1 x Power status indicator, 1 x Disk activity indicator, 1 x Network activity indicator

Rear I/O

USB	4 x USB 3.2 Gen1 ports, 2 x USB 2.0 type A ports
COM Port	1 x RS232 port
VGA	1 x VGA port
RJ-45	5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Display

Graphic Chipset	AST 2600 BMC controller
Resolution	1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp

Power Requirement

Power Supply Unit	1 x 1300W PS2 ATX PSU

Expansion

Expansion	4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots, Slot 1, PCIe 5.0 x16, Slot 2, PCIe 5.0 x4, Slot 3, PCIe 5.0 x16, Slot 4, PCIe 5.0 x4, Slot 5, PCIe 5.0 x16, Slot 6, PCIe 5.0 x4, Slot 7, PCIe 5.0 x16 (closest to CPU)

Storage

M.2	1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor
2.5 Drive Bay	3 x Front accessible 2.5" storage bays

Ethernet

LAN Chipset	1 x Intel I210AT 1GbE controller, 1 x Intel I226-LM 2.5GbE controller, 1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports
LAN Port	5 x RJ45: MGMT port for dedicated IPMI access only, LAN1 for 1GbE shared with IPMI, LAN2 for 2.5GbE, LAN3 and 4 for 10GbE

Mechanical & Environmental

Operating Temp.	0 ~ 35°C (L6 system)
Storage Temp.	-40°C 24hrs IEC60068-2-1 Cold test Test: Ab, 70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca
Operating Humidity	35°C @ 95% Relative Humidity, Non-condensing
Weight	19.7KG
Dimension (W x L x D)	Tower Chassis 340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand, 174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

Software Support

OS	Windows 10 IoT Enterprise LTSC 2021, Windows Server IoT 2019 with VT-d disabled, Windows Server IoT 2022, Ubuntu 21.10, 22.04 LTS or later, Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

Ordering Information	HPS-ERSUTAD-A1R: L6 Tower Workstation w/HPM-ERSUAA/1300W/1x5.25"/3x2.5"
